Refrigeration Compressor is the vital part of refrigeration system in temperature-controlled logistics industries, compressor is the heart of the refrigeration system. The power and characteristics of the compressor determine the capacity and characteristics of the refrigeration system.

Compressor suctions the low temperature and low pressure of refrigerant vapor from the evaporator after abosorbing the heat in the cold storage room, then compresses it into high temperature and high pressure gas, and discharges the hot gas to the cold room condenser.

For small cold stores like walk-in cooler and walk-in freezer, usually Hermetic Compressor is used, for medium and large cold storage rooms Semi-Hermetic Compressor is used, and for large refrigerated warehouses Screw Parallel Compressor is used. For most projects, we choose Copeland Hermetic Compressor and Bitzer Semi-Hermetic Compressor which represent the best quality for our cold room's refrigeration system to ensure the best refrigeration performance and service life.

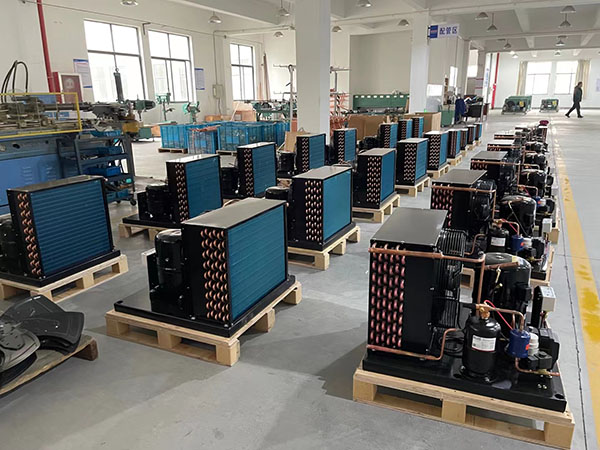

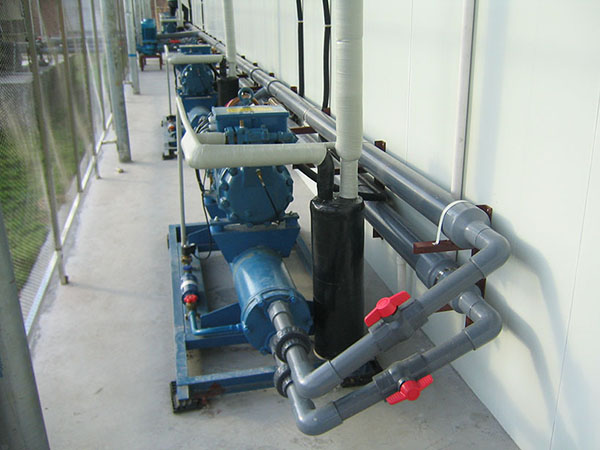

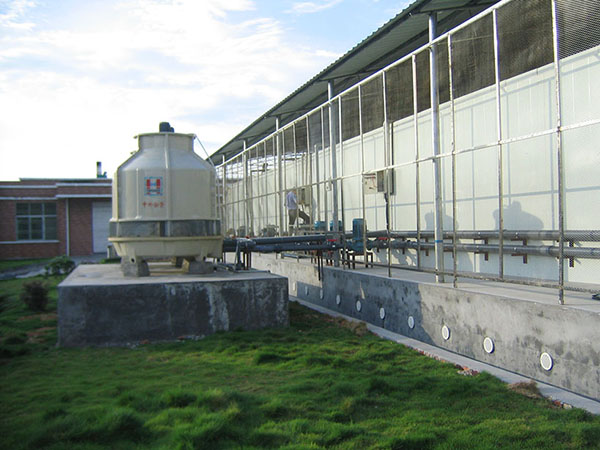

Cold Storage Condenser is the Outdoor Unit of a cold storage room or refrigerated warehouse. The condenser unit can be both air cooled condensing unit or water cooled condensing unit.

The condenser is a heat exchange equipment. Its function is to take away the heat of the high-temperature and high-pressure refrigerant vapour pumped from the compressor by using the environmental cooling medium (air or water), so that the high-temperature and high-pressure refrigerant vapor is cooled and condensed into liquid status high-pressure and normal temperature refrigerant.

Cold Storage Condenser Unit Product Features

• The cold storage condenser cabinet shell is made of high-quality steel plate, with plastic sprayed surface, corrosion resistance and beautiful appearance;
• The condensing unit coil adopts the staggered arrangement of copper tubes, and the mechanical expansion is used to closely combine the copper tubes with the fins for excellent heat exchange effect;
• Our cold room condenser units have undergone 2.5MPa air tightness test and system blowdown treatment;
• Our cold storage warehouse condensing units are applicable to R22, R134a, R404A, R407C and other refrigerants;
• Our condensers adopt gale star and low-speed motors with small noise and beautiful appearance;
• Our condensers adopt high-efficiency heat exchange coil, clean and dry;
• The punching of condenser aluminum fin is "L" line extension flap, which is in close contact after tube expansion and has high heat exchange efficiency;
• The design width of the cold room condensers is reasonable, and the spacing between the wind blade and the aluminum fin is greater than 1/3 of the diameter of the wind blade to ensure sufficient windward area for operation;

Our cold room condensers are made of the best copper material to ensure the high efficiency of refrigeration and stable operation.

The high pressure and normal temperature refrigerant liquid from the condenser after giving off heat can not be directly sent to the low-temperature evaporator. Before sending to the evaporator, the high pressure of refrigerant liquid shall be reduced. The Expansion Valve plays this roll, and change the high pressure and normal temperature refrigerant liquid into low pressure and low temperature refrigerant liquid to be ready for the evaporator.

We use superior quality Danfoss Expansion Valve.

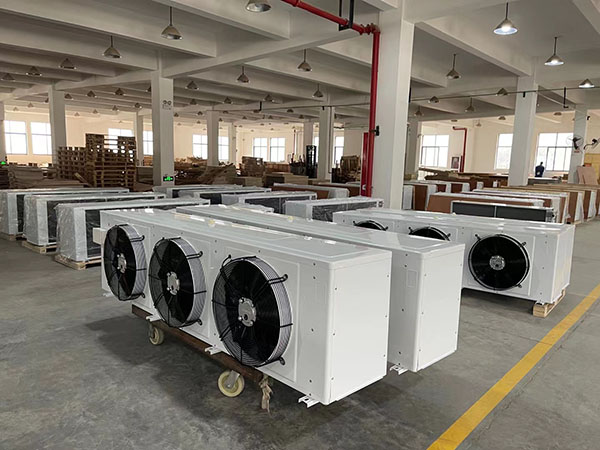

Cold Storage Evaporator is the Indoor Unit of a cold storage room or refrigerated warehouse. The evaporator units use use a vapour compression refrigeration cycle.

The Evaporator is also a heat exchange equipment. After receving the low temperature and low pressure refrigerant liquid from the expansion valve, the evaporator absorbs the heat in the cold storage room while evaprating the low temperature and low pressure refrigerant liquid into low temperature and low pressure refrigerant vapour. Thus the cold storage room temperature drops down.

Cold Storage Evaporator Unit Product Features

• Fan coil units specially designed for preservation, freezing and refrigeration of cold storage refrigeraiton system;
• The shell of the air coolers is made of high-quality steel plate, with plastic sprayed surface, corrosion resistance and beautiful appearance;
• The air cooler coil adopts staggered arrangement and uses mechanical tube expansion to closely combine the copper tube with the aluminum sheet, with good heat exchange effect;
• High quality stainless steel electric heating tubes are evenly distributed in the evaporator coil. Good defrosting effect; The defrosting of electric heating tube adopts electric heating aluminum sleeve close to the fin hole, which is easy to dissipate heat and has long service life;
• The design width of the cooling fan is reasonable, and the spacing between the fan blade and the aluminum fin is greater than 1/3 of the fan blade diameter to ensure sufficient effective air volume blowed from the air cooler unit;

According to the storage temperature, cold room evaporator can be divided into DL, DD and DJ series, which can be respectively applied to different storage temperatures. DL type evaporators (air cooler) is mainly suitable for 0 ℃ walk-in coolers & chillers; DD type air coolers are mainly suitable for refrigerated warehouses around - 18 ℃; DJ type air coolers are mainly suitable for quick-frozen warehouses below - 25 ℃.

Cold Room Air Coolers Used in Cold Storage Projects

We supply diiferent types of commercial and industiral cold room evaporating units to suit cold storage warehouses with different sizes and temperatures for different industries.

Besides the 4 main cold storage refrigeration system components and parts including compressor, condenser, evaporator & expansion valve, there are usually some auxiliary equipment, such as solenoid valve, dry filter, luquid accumulator, thermostat, pressure controller, oil pressure protector, oil seperator and other components which helps the economic, reliable and safe operation of the cold storage warehouse.

We use the best raw materials to ensure the cold storage warehouses to maintain a continuous, stable and efficient operation in critical environmental situations so as to relieve customers' worries about the quality of goods stored in cold storage. Many of our cold storage projects show that the service life of our cold storage refrgieration units is much longer than that of many other cold storage manufacturers under the same operating environment. The condition of our refrigeration system after five years of use is even better than that of other manufacturers for one year which has been highly praised by our customers.

Standard voltage for the cold room condenser units and evaporator units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.

220V/50Hz-1Ph 380V/50Hz-3Ph: China, Vietname, Cambodia, Thailand, Malaysia, Indonesia, Australia, New Zealand, Bangladesh, India, Sri Lanka, Pakistan, Afghanistan, Uzbekistan, Turkmenistan, Kazakhstan, Georgia, Azerbaijan, Iran, Iraq, UAE, Yemen, Turkey, Egypt, Ethiopia, Kenya, Tanzania, Mozambique, Madagascar, South Africa, Angola, Congo, Cameron, Nigeria, Ghana, Cote d'Ivoire, Morocco, Algeria, Libya, Tunisia, Italy, Greece, Spain, Portugal, Britain, France, Germany, Sweden, Norway, Finland, Poland, Hungary, Ukraine, Serbia, Croatia, Romania, Bulgaria, Russia, Chile, Argentina, Paraguay etc.

220V/60Hz-1Ph 380V/60Hz-3Ph: Korea, Saudi Arabia, Philippines, Peru etc.

110V/60Hz-1Ph 220V/60Hz-3Ph: Japan, United States, Canada, Mexico, Ecuador, Brazil, Colombia, Venezuela etc.
