We manufacture and supply whole range of Supermkarket Refrigeration Equipment including Supermarket Refrigerators and Supermarket Freezers. This serie of Supermarket Island Freezers are Horizontal Chest Type Supermarket Freezer Showcases with horizontal display and opening on the freezer cabinet top and accessible from above for customers to take the frozen foodstuffs stored inside the freezer storage cabinet. The Island Freezers include Single Island Supermarket Freezer and Double Island Supermarket Freezer at the freezing operating temperature of -18~-22 ℃ used as commercial deep freezers with the features of powerful and fast frozen, stable maintaining temperature, and energy-saving.
Our Supermarket Island Freezers can be combined to any length according to different store layouts and designs.
These supermarket display chest freezers are widely used in supermarkets, hypermarkets, convenience stores, meat stores, butcher's shops, retail chain stores, self-service stores, foods stores, convenience stores, grocery stores, food markets, produce markets, seafood shops, fowl shops, aquatic product stores, hotels & restaurants etc. for the frozen foods storage and display, and is a must-have supermarket refrigeration equipment. And this horizontal supermarket display freezer merchandiser can be used as gelato and ice crem display freezer to freeze and display ice creams and gelatoes. Professional supermarket island freezer manufacturer and supplier in China with over 20 years of experience in commercial refrigeration equipment & supermarket refrigeration equipment, quality is guaranteed.
For this series of island type supermarket freezers, we have both singlle island freezers and double island freezers, and we can combine the single island freezer units with end cap unit as a group for large space supermarkets. And both remote type island freezers and and plug-in type island freezers are available for the different layouts of supermarkets and convenience stores . The remote type supermarket freezer has the indoor freezer cabient (evaporator unit) and the outside condenser unit which are connected by copper pipe. The plug-in type supermarket freezer has a built-in compressor inside the freezer cabinet. For large supermarkets, it is suggested to have the remote type supermarket island freezers so that the heat from the refrigeration system can be taken outside the supermarket space directly. However, for smaller groceries and convenience stores, it is suggested to have the plug-in type supermarket island freezers with no requirement of installation and for easy movement of the island freezers.
Also it is optional to have sliding glass top on the supermarket island freezers for the preservation of cooling air and energy-saving.

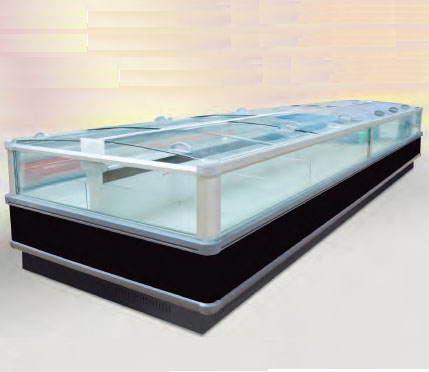

Double Island Freezer

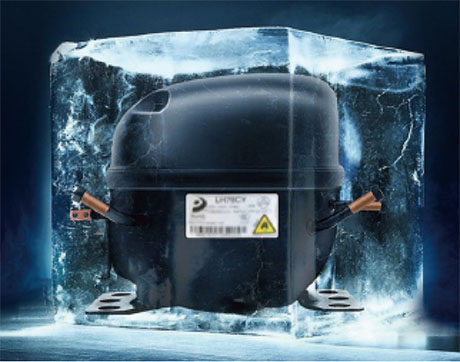

Superior Quality World Brand Compressors For Powerful Cooling and Freezing Capability. Long Lasting Life & Quiet, Energy-Saving

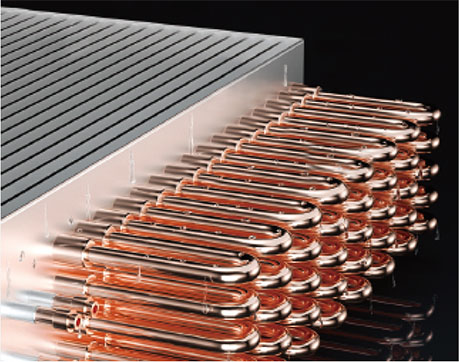

Both Fridge Condenser & Evaporator With 100% Pure Copper Tube, Strong, No Corrosion, Long-Lasting Life

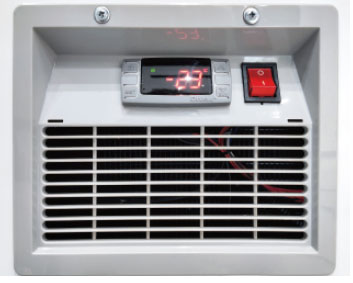

Digital Display Micro-Computer Temperature Controller for Energy-Saving & Stable Temperature

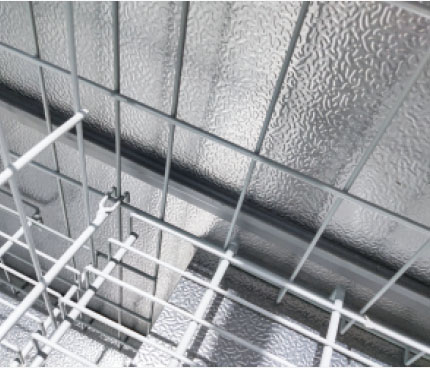

Adjustable Lattice Storage Basket : Flexibly Placing & Height Poistion Adjustable

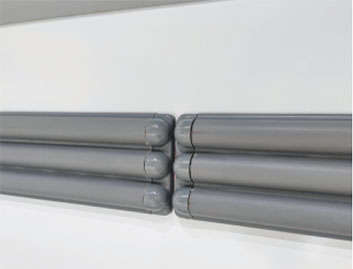

Thick & Strenthened Anti-Collision Strip for Island Freezer Cabinet Protection All the Time

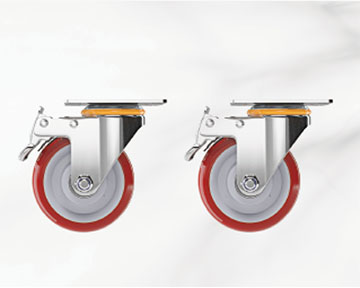

Universal Casters, No Noise. Anti-Skid Wheels
Supermarket Fridge Cabinet Colors
| Model | Description | Type | Storage Temperature | Product Length | Cabinet Size (mm) | Display Area | Net Weight | Gross Weight | Voltage |
|---|---|---|---|---|---|---|---|---|---|
| SD-0618A | 6' Double Supermarket Island Freezer | Plug-in Self-Contained | -22 ~ -18℃ | 1920 mm / 6 ft | 1920L x 1760D x 890H | 2.65 m2 / 29 sq. ft. | 259 kg | 309 kg | 220V ±10%, 50Hz, 1Ph |
| SD-0818A | 8' Double Supermarket Island Freezer | Plug-in Self-Contained | -22 ~ -18℃ | 2460 mm / 6 ft | 2460L x 1760D x 890H | 3.52 m2 / 38 sq. ft. | 353 kg | 413 kg | 220V ±10%, 50Hz, 1Ph |
| SD-1218A | 12' Double Supermarket Island Freezer | Plug-in Self-Contained | -22 ~ -18℃ | 3750 mm / 12 ft | 3750L x 1760D x 890H | 5.27 m2 / 57 sq. ft. | 517 kg | 577 kg | 220V ±10%, 50Hz, 1Ph |

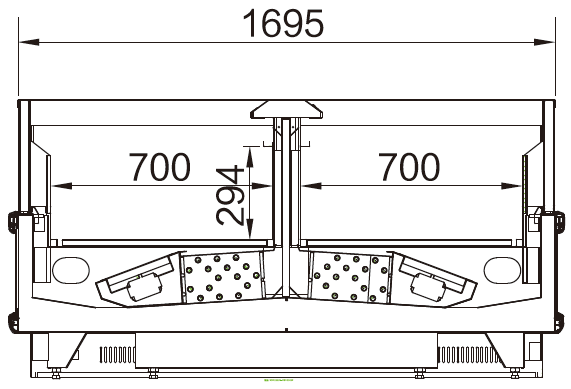

| SD-E18A | Double Island Freezer End Cap Unit | Plug-in Self-Contained | -22 ~ -18℃ | 1760 mm / 6 ft | 1760L x 1050D x 890H | 1.15 m2 / 12 sq. ft. | 187 kg | 227 kg | 220V ±10%, 50Hz, 1Ph |
Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage for the supermarket refrigeration units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.
220V ±10%, 50Hz, 1Ph: China, Vietname, Cambodia, Thailand, Malaysia, Indonesia, Australia, New Zealand, Bangladesh, India, Sri Lanka, Pakistan, Afghanistan, Uzbekistan, Turkmenistan, Kazakhstan, Georgia, Azerbaijan, Iran, Iraq, UAE, Yemen, Turkey, Egypt, Ethiopia, Kenya, Tanzania, Mozambique, Madagascar, South Africa, Angola, Congo, Cameron, Nigeria, Ghana, Cote d'Ivoire, Morocco, Algeria, Libya, Tunisia, Italy, Greece, Spain, Portugal, Britain, France, Germany, Sweden, Norway, Finland, Poland, Hungary, Ukraine, Serbia, Croatia, Romania, Bulgaria, Russia, Chile, Argentina, Paraguay etc.
220V ±10%, 60Hz, 1Ph: Korea, Saudi Arabia, Philippines, Peru etc.
110V ±10%, 60Hz, 1Ph: Japan, United States, Canada, Mexico, Ecuador, Brazil, Colombia, Venezuela etc.

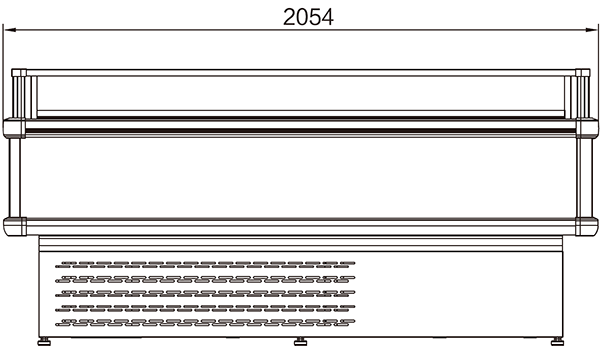

Single Island Freezer
| Model | Description | Type | Storage Temperature | Product Length | Cabinet Size (mm) | Display Area | Net Weight | Gross Weight | Voltage |
|---|---|---|---|---|---|---|---|---|---|
| DD-06105Z | 6' Single Supermarket Island Freezer | Plug-in Self-Contained | -22 ~ -18℃ | 1920 mm / 6 ft | 1920L x 1050D x 890H | 1.58 m2 / 17 sq. ft. | 200 kg | 240 kg | 220V ±10%, 50Hz, 1Ph |
| DD-08105Z | 8' Single Supermarket Island Freezer | Plug-in Self-Contained | -22 ~ -18℃ | 2460 mm / 8 ft | 2460L x 1050D x 890H | 2.1 m2 / 23 sq. ft. | 260 kg | 300 kg | 220V ±10%, 50Hz, 1Ph | DD-06125Z | 6' Single Supermarket Island Freezer | Plug-in Self-Contained | -22 ~ -18℃ | 1920 mm / 6 ft | 1920L x 1250D x 890H | 2.33 m2 / 25 sq. ft. | 245 kg | 295 kg | 220V ±10%, 50Hz, 1Ph |
| DD-08125Z | 8' Single Supermarket Island Freezer | Plug-in Self-Contained | -22 ~ -18℃ | 2460 mm / 8 ft | 2460L x 1250D x 890H | 2.8 m2 / 30 sq. ft. | 317 kg | 367 kg | 220V ±10%, 50Hz, 1Ph |

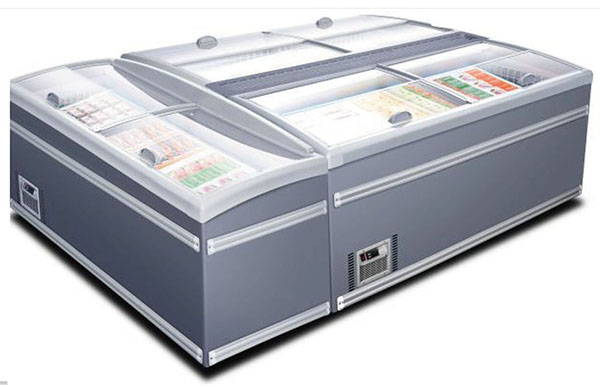

Glass Door/Lid Supermarket
Island Freezer Combination A
| Model | Description | Type | Storage Temperature | Product Length | Cabinet Size (mm) | Loading Capacity | Rated Power | Voltage |
|---|---|---|---|---|---|---|---|---|
| ZD-L0585SA | 5' Island Freezer Side Unit | Plug-in Self-Contained | -22 ~ -18℃ | 1450 mm / 6 ft | 1450L x 850D x 800H | 0.530 m3 / 29 sq. ft. | 509 W | 220V ±10%, 50Hz, 1Ph |
| ZD-L0785SA | 7' Island Freezer Side Unit | Plug-in Self-Contained | -22 ~ -18℃ | 2100 mm / 7 ft | 2100L x 850D x 800H | 0.850 m3 / 30 sq. ft. | 606 W | 220V ±10%, 50Hz, 1Ph |
| ZD-L0885SA | 8' Island Freezer Side Unit | Plug-in Self-Contained | -22 ~ -18℃ | 2500 mm / 8 ft | 2500L x 850D x 800H | 1.040 m3 / 37 sq. ft. | 635 W | 220V ±10%, 50Hz, 1Ph |
| ZD-E0685SA | 8' Island Freezer End Cap Unit | Plug-in Self-Contained | -22 ~ -18℃ | 1850 mm / 6 ft | 1850L x 850D x 800H | 0.630 m3 / 22 sq. ft. | 495 W | 220V ±10%, 50Hz, 1Ph |
Glass Door/Lid Combined
Supermarket Island Freezers
| Model | Description | Type | Storage Temperature | Product Length | Cabinet Size (mm) | Loading Capacity | Rated Power | Voltage |
|---|---|---|---|---|---|---|---|---|
| ZD-L0785WB | 7' Island Freezer Side Unit | Plug-in Self-Contained | -22 ~ -14℃ | 2000 mm / 7 ft | 2000L x 850D x 850H | 0.800 m3 / 28 sq. ft. | 637 W | 220V ±10%, 50Hz, 1Ph |
| ZD-L0885WB | 8' Island Freezer Side Unit | Plug-in Self-Contained | -22 ~ -14℃ | 2500 mm / 7 ft | 2500L x 850D x 850H | 1.100 m3 / 39 sq. ft. | 736 W | 220V ±10%, 50Hz, 1Ph |
| ZD-E0685WB | 6' Island Freezer End Cap Unit | Plug-in Self-Contained | -22 ~ -14℃ | 1850 mm / 7 ft | 1850L x 850D x 850H | 0.700 m3 / 25 sq. ft. | 633 W | 220V ±10%, 50Hz, 1Ph |

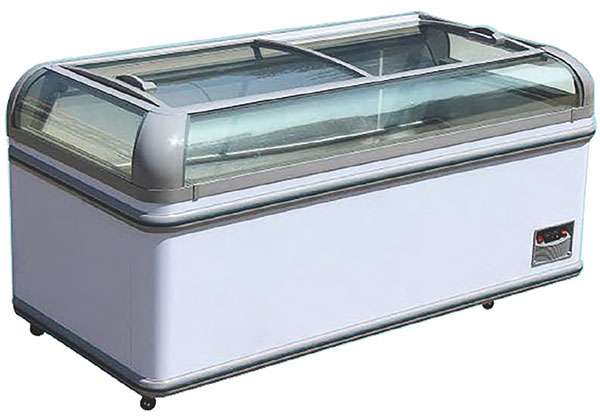

Glass Door/Lid Supermarket
Island Freezer Combination C
| Model | Description | Type | Storage Temperature | Product Length | Cabinet Size (mm) | Loading Capacity | Rated Power | Voltage |
|---|---|---|---|---|---|---|---|---|
| ZD-L0585ZC | 5' Island Freezer Side Unit | Plug-in Self-Contained | -18 ~ -15℃ | 1480 mm / 5 ft | 1480L x 845D x 905H | 0.500 m3 / 18 sq. ft. | 495 W | 220V ±10%, 50Hz, 1Ph |
| ZD-L0685ZC | 6' Island Freezer Side Unit | Plug-in Self-Contained | -18 ~ -15℃ | 1880 mm / 6 ft | 1880L x 845D x 905H | 0.620 m3 / 22 sq. ft. | 580 W | 220V ±10%, 50Hz, 1Ph |
| ZD-L0885ZC | 8' Island Freezer Side Unit | Plug-in Self-Contained | -18 ~ -15℃ | 2505 mm / 8 ft | 2505L x 845D x 905H | 1.050 m3 / 53 sq. ft. | 1050 W | 220V ±10%, 50Hz, 1Ph |
| ZD-E0685ZC | 6' Island Freezer End Cap Unit | Plug-in Self-Contained | -18 ~ -15℃ | 1905 mm / 6 ft | 1905L x 845D x 905H | 0.640 m3 / 23 sq. ft. | 606 W | 220V ±10%, 50Hz, 1Ph |
