COOLPLUS Commercial Refrigeration China, as a pioneer cold storage warehouse manufacturer and cold room panel supplier, produce and supply the one-stop solution of customized walk-in refrigerated warehouse design, cold room construction services and operatiion advices to our customers on how to build a cold storage warehouse facility at the lowest cost and to maximize the economic benerfits of building a cold storage plant. We manufacture and construct all types of Industrial Refrigerated Warehouses and Commercial Walk in Cold Rooms including Complex Logistics Center Cold Storage Warehouses, Cold Chain Center Refrigerated Warehouses, Food Processing Cold Storagae Plants, Butchering and Meat Processing Cold Rooms, Fish & Meat Freezing Storage Warehouses, Frozen Foods Warehouses, Poultry Refrigerated Warehouses, Milk & Dairy Cold Storage Solution, Supermarket Walk-in Cold Rooms, Retail Chain Cold Stores, Restaurant Catering Walk-in Cold Stores, Chain Hotel Cold Stores, Small Retail Sales Walk in Coolers & Freezers, Edible Mushroom Breeding Center Cold Room Plant, Farming Cold Storage Warehouses, Agricultural Products Wholesale Market Refrigerated Warehouses, Refrigerated Seed Storage Rooms, Medical Laboratory Walk in Cold Rooms, Medicine Cold Storage Chambers, Pharmaceutical Cold Storage Facilities, Refrigerated Chemicals Storage Warehouses, Blast Freezers, Refrigerated Trailers, Refrigerated Storage Containers, Reefer Containers, etc.
Here below we will have a cold storage facility indtrouction on cold storage application and cold storage functions, types of cold storage facilities, cold storage warehouse design factors, essential parts & components to build a refrigerated warehouse and cold room prices.
Professional cold room designer and export supplier in China specializing in commercial & industrial walk-in cold storage design and construction with nearly 30 years of experience in commercial refrigeration and cold storage industry. Superior Quality, and Affordable Price.
Cold Storage Warehouse Project
For Food Processing, Cold Chain Logistics, Agriculture,
Supermarket, Retail Sales, Medical & Pharmaceautical ...
Compared with small cold rooms of walk-in cooler and walk-in freezer, cold storage warehouse is medium size and large size cold room with more complicated design, larger refrigeration system and longer construction period. We will have below the introduction on this refrigerated warehouse.

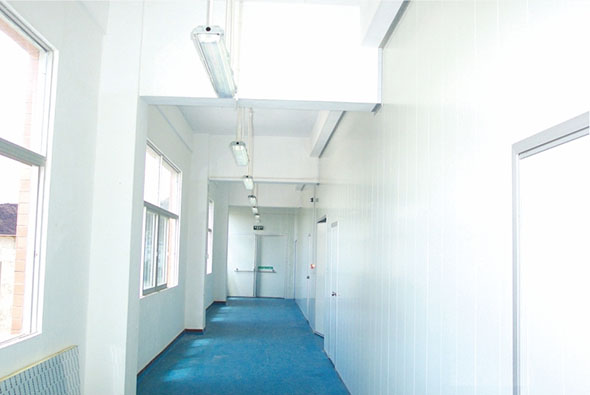

Cold storage warehouses are widely used in many industries where low storage temperature is required, such as Supermarket, Catering Services, Hotel & Restaurant, Bakery & Confectionary, Food Production, Pharmacy, Farming & Fishery, Meat & Fish Processing, Chemical, Labs etc. for the cooling storage, chilling storage and frozen storage of foodstuffs and food ingredients, chemical materials, medicines, drugs and pharmaceautical materials, etc which require different refrigerating temperatures.
Farmers and agribusinesses have always been struggling with lack of cold-storage facilities for their products, it's important to build enough cold storage warehouses to reduce foods waste. Our aim is to help our customers worldwide to build refrigerated warehouses with best quality, high-efficiency operation, energy-saving, and at best price.

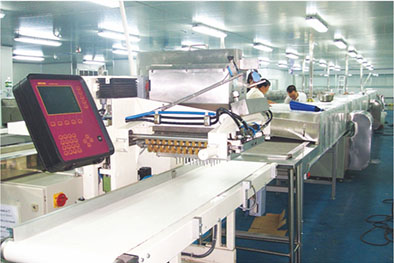

This type of cold room is used in pharmaceutical and food cold chain by food processing plant, dairy supplier, beverage producer, pharmaceautical manufacturer, chemical factory etc. for the temporary refrigerated storage of semi-finished products and materials during production.
The processing cold room usually has a strong refrigeration capacity and fast temperature pull down due to the frequent opening of cold room door, and thus it requires refrigeration units with bigger cooling capacity.

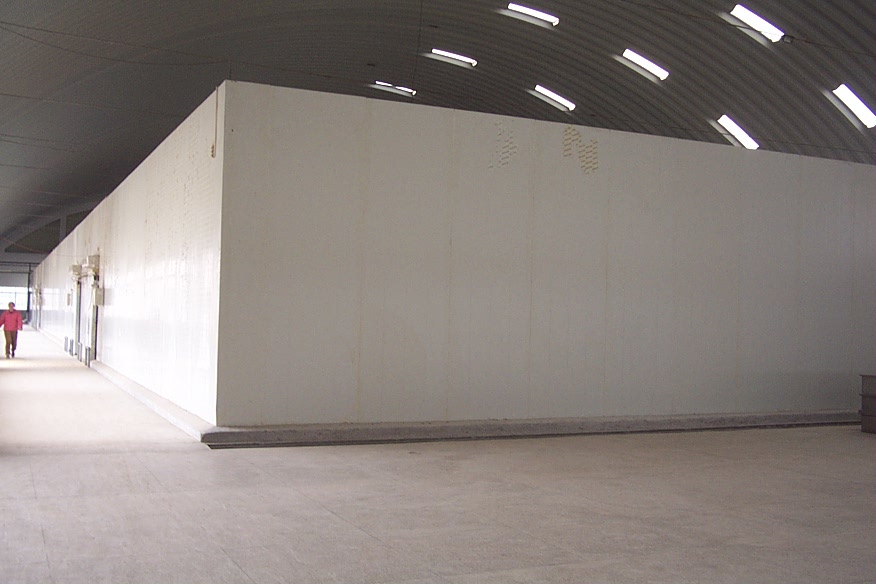

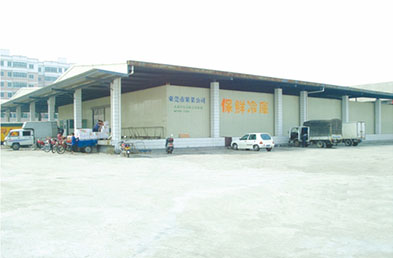

This medium size and large size cold storage warehouses are used by fruit and vegetable wholesale distribution center, meat factory, poultry farm, agro wholesale market for the chilling or freezing storage of vegetables, fruits and meat etc. in mass quantity. These refrigerated warehouses are usually with tall height, so we propose to use our PIR Insulated cold room panels connected by tigntening device instead of cam lock design.

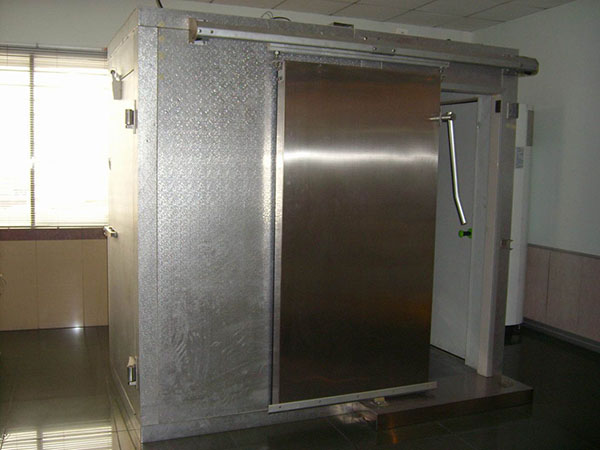

Small cold stores of walk-in cooler and walk-in freezer are mostly used in retail distribution, food-service, supermarket, restaurant, bakery, hotel and hospital for the refriterated storage of fruits and vegetables, frozen and fresh meat and poultry, dairy products and medicines etc. The walk in coolers & freezers are usually with small size and sometimes it requires to be easily relocated in other places, so we suggest to use our PUR Insulated cold room panels which is equipped with cam locks for easily assembling and disassembling.
Before you build a cold torage warehouse, we have the below proposal to suggest to customers:
Different goods requires different storage temperature. Below is a table for suitable refrigerating temperature applying for different types of goods:
| Foods Name | Storage Temperature | Relative Humidity | Freezing Point | Storage Period |
|---|---|---|---|---|
| Apple | -1~+1 ℃ | 85~95 % | -2 ℃ | 2~7 mths |
| Banana | 11.7 ℃ | 85 % | -1.7 ℃ | 14 mths |
| Pear | -0.5~+1.5 ℃ | 85~95 % | -2 ℃ | 1~6 mths |
| Grape | 1~-+3 ℃ | 85~90 % | -4 ℃ | 1~4 mths |
| Onion | -1.5 ℃ | 80 % | -1 ℃ | 3 mths |
| Cabbage | 0~+1 ℃ | 85~90 % | -0.5 ℃ | 1~3 mths |
| Potato | +3~+5 ℃ | 85~90 % | -1.2 ℃ | 6 mths |
| Egg | -1~-0.5 ℃ | 85~85 % | -2.2 ℃ | 8 mths |
| Fresh Pork | 0~+1.2 ℃ | 85~90 % | -2.2 ℃ | 3~10 mths |
| Frozen Pork | -24~-15 ℃ | 85~90 % | 2~8 mths | |
| Frozen Poultry | -30~-10 ℃ | 80 % | 3~8 mths | |
| Frozen Mutton | -12~-18 ℃ | 80~85 % | 3~8 mths | |
| Frozen Egg | -18 ℃ | 12 mths | ||
| Sausage | -4~+5 ℃ | 85~90 % | 7~21 mths | |
| Butter | 0~+2 ℃ | 80 % | 7 mths | |
| Sugar | +7~+10 ℃ | <60 % | 0.2 ℃ | 12~36 mths |
| Rice | 1.5 ℃ | 65 % | -1.7 ℃ | 6 mths |
| Beer | 0~+5 ℃ | -2 ℃ | 6 mths |
When you need a cold storage room designed for frozen pork and frozen poultry or freezing fish, beef and lamb, you will need to choose a walk-in freezer. When you need a cold room designed for vegetables & fruits or dairy, you will need to choose a walk-in cooler.
When we build a cold storage warehouse, in addition to the information of goods type, we also need to know the warehousing information such as how much quantity of the goods are to be stored in the warehouse and what type of package each unit is, so that we can know the required refrigeration capacity and what the cold room size will be.
If it's a large cold storage warehouse, we will also need to know the product loading quantity per batch, the loading temperature, product unloading frequency, the frequency of door opening etc.

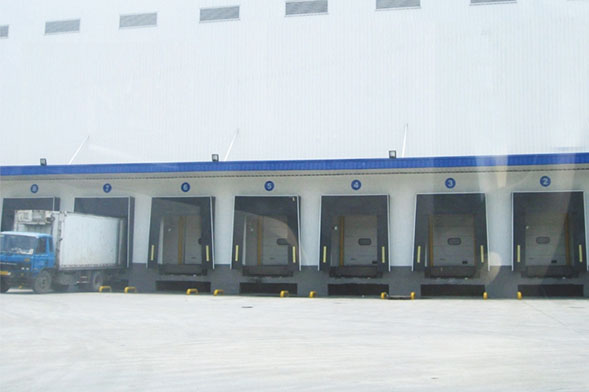

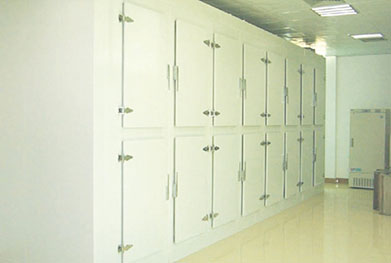

Cold storage rooms can be designed and used for refrigerated storage, refrigerated processing, cold chain logistics, refrigerated transportation, wholesale and retail and complex purpose etc.. And we also need to consider whether a partition is required to seperate the cold room into cooler room, freezer room, blast freezer, anteroom etc. These information can help us make a suitable cold room design.
Cold storage warehouse users should consider where to build the refrigerated warehouse. When it is a farm produce refrigerated warehouse, it's proposed to build the warehouse nearby the place of origin of vegetables and fruits. When refrigerated warehouse is for wholesale or retail buisness, the warehouse should be nearby large foods market. Convenient transportaion is a necessity.
Also electricity supply and water supply at the warehouse location should be considered.
Cold storage warehouse is usually a big project with huge investment and cost. Qualtiy is very important for the long-term performance. The choice of building materials is vital on planning a cold storage warehousing solution.
According to our customers' feedback, our cold storare warehouses work perfect after 5 years of operation, while those supplied by another producer at the same period failed frequently. Cold storage operation failure would be a disaster to a refrigerated warehouse user. That would noy only involves operation and maintenance cost, but also would cause production loss. But at the same time, we also need to reduce some unnecessary cost to make a cold room project cost effective.
As a cold storage warehouse manufacturer and designer with nearly 30 years of building experience, it would be our honor to make suitable cold room construction and cold storage design proposals to our customers.

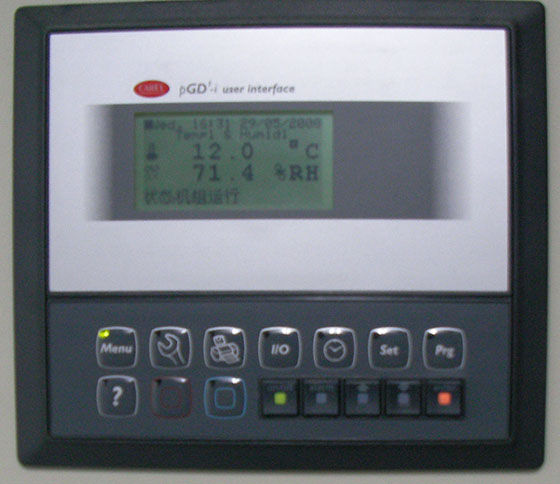

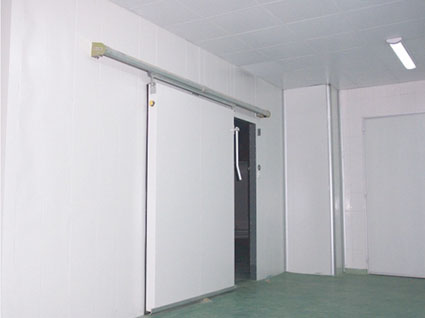

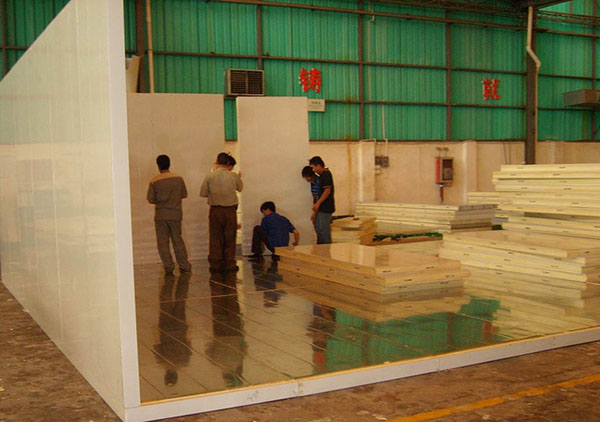

A cold storage room basically consists of cold storage cabinet (insulated sandwich cold room panels & cold storage door), outdoor cold room condensing unit, indoor cold room evaporator unit cooler, electric controller, connection pipe and accessories.
The cold room refrigeration system usually consists of 4 parts: refrigeration compressor, cold storage condenser unit , cold storage evaporator coil, and expansion valve.
A large cold storage warehouse is a group of buildings surrounding the main cold storage room, which may consist of anteroom, blast freezer, cooling storage room, freezing storage room, ice room etc.
For large size refrigerated warehouse, we suggest to use our PIR inuslated sandwich panel as the wall panel and ceiling. This PIR insulation panel is manufactured in our continous panel production line which is suitable for tall-height cold room plants.
Below is a typical parts & components list for a cold room/cold storage warehouse:
Cold Room Wall Panels & Ceiling Panels: 0.426mm pre-coated galvanized mild steel 200mm thickness polyurethane insulation panel with cam lock
Remarks:
1. The cold storage warehouse power supply of the refrigeration system for our walk-in cooler and freezer cold rooms can be customized.
2. Standard Voltage: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.
3. 220V ±10%, 50Hz, 1Ph: China, Vietname, Cambodia, Thailand, Malaysia, Indonesia, Australia, New Zealand, Bangladesh, India, Sri Lanka, Pakistan, Afghanistan, Uzbekistan, Turkmenistan, Kazakhstan, Georgia, Azerbaijan, Iran, Iraq, UAE, Yemen, Turkey, Egypt, Ethiopia, Kenya, Tanzania, Mozambique, Madagascar, South Africa, Angola, Congo, Cameron, Nigeria, Ghana, Cote d'Ivoire, Morocco, Algeria, Libya, Tunisia, Italy, Greece, Spain, Portugal, Britain, France, Germany, Sweden, Norway, Finland, Poland, Hungary, Ukraine, Serbia, Croatia, Romania, Bulgaria, Russia, Chile, Argentina, Paraguay etc.
220V ±10%, 60Hz, 1Ph: Korea, Saudi Arabia, Philippines, Peru etc.
110V ±10%, 60Hz, 1Ph: Japan, United States, Canada, Mexico, Ecuador, Brazil, Colombia, Venezuela etc.
As per our above cold storage warehouse introduction, a cold room consisits of 6 essecial parts: cold storage insulated panels, cold room doors, cold room condenser, cold room evaporator, connetion pipe and electric controller. So we can get the total cold room prices by combining the cold room panel cost, cold room door cost, condensing unit cost, cold room evaporator cost, connection pipe cost and electric controller cost. The typical cold room price list is as below:
| Types of Cold Rooms | Cold Room Prices |
|---|---|
| 8'x8' Walk-in Cooler Price | ≥US$4,000 |
| 8'x8' Walk-in Freezer Price | ≥US$5,000 |
| 10'x10' Walk-in Cool Room Price | ≥US$5,000 |
| 10'x10' Walk-in Freezer Room Price | ≥US$5,000 |
| 50T Cold Storage Warehouse Price | ≥US$40,000 |
| 500T Walk-in Refrigerated Warehouse Price | ≥US$170,000 |
The above walk-in cold room price is for reference. Please feel free to send us your enquiry with cold room size, storage temperature & other specifications for accurate cold room price quotation.
Coolplus Refrigeration, as a professional cold storage warehouse manufacturer and designer, has been around for nearly 30 years of cold room building experience and has managed to serve thousands of customers with their high-quality products. In addition, their walk in cold storage rooms and refrigerated warehouses are designed by a highly experienced and qualified team of engineers who focus on creating these products for professional use.
Apart from having a remarkable team, Coolplus Refrigeration also ensures the use of high-quality material. In addition, they also make sure that all their cold storage warehouses go through a strict quality assurance system regardless of their exceptional output. If you are looking for professional use, then we are the best Cold Storage Warehouse Manufacturer and Manufacturer in China. Even though you'll find numerous other Manufacturers, Coolplus Refrigeration has never failed to satisfy their customers by providing the best walk in cold rooms and cold storage warehouses.
Customers shall choose cold room specification and types of cold storage warehouses according to stored goods, storage temperature, storage volume, land and building conditions etc. Welcome to send enquiry for cold room design and construction, cost and price and cold room panel supply.
