SUPERMARKET REFRIGERATION EQUIPMENT

SUPERMARKET REFRIGERATED MEAT CASES

As one of the leaders in the food service and hospitality industry in China, Coolplus Refrigeration manufacture and supply whole range of Supermkarket Refrigerated Display Cases including Supermarket Display Cooler Cabinets and Supermarket Display Freezer Cabinets. This serie of Refrigerated Fresh Meat Display Cases are the Supermarket Refrigerated Showcases and professional refrigerated storage cabinets for fresh meat, beef, fish and poultry chilling and cooling cold storage and displays. In order to keep the freshness and best taste, this refrigerated meat case is with the storage temperature of -2 ~ +2℃ which is lower than that of beverage display case and milk & dairy showcase but not at freezing temperature as frozen meat dispaly case.

Supermarket Fresh Meat Cooler Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

In difference with glass-door closed deli display case, this meat cooler showcase is an open supermarket display case without cover which is a self-service case. Besides this series of horizontal meat case, we also supply upright meat display cases which are available with both vertical open meat cooler cabinet and vertical glass door meat cooler cabinet.

These meat cases can be used as supermarket fridge, convenience store fridge, butchers' fridge which are suitable for retail foodservice industry in supermarkets, hypermarkets, self-service stores, food stores, convenience stores, food markets, produce markets, seafood shops, butcher's shops, fowl shops, aquatic product stores, hotels & restaurants etc. Professional supermarket display case manufacturer and supplier in China with over 20 years of experience in commercial refrigeration equipment & supermarket refrigeration equipment, quality is guaranteed.

SUPERMARKET MEAT DISPLAY CASES DESIGNS & STYLES

XRA Refrigerated Fresh Meat Display Case; Commercial supermarket fridge manufacturer with 20+ Years of experience, Quality Guaranteed.

Classic Type Supermarket Refrigerated Meat Showcase

MF41B Natural Wood Color Supermarket Refrigerated Meat Case; Commercial supermarket fridge manufacturer with 20+ Years of experience, Quality Guaranteed.

Natural Wood Color Refrigerated Meat Case

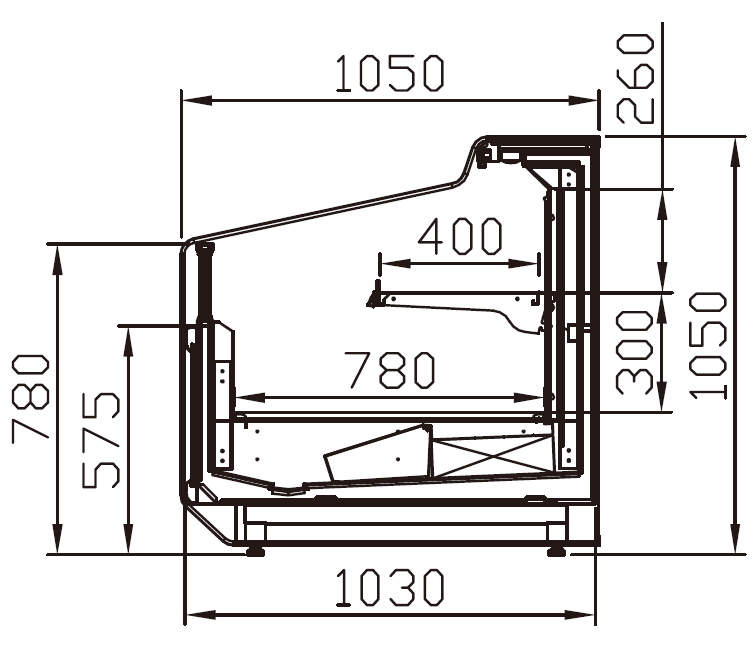

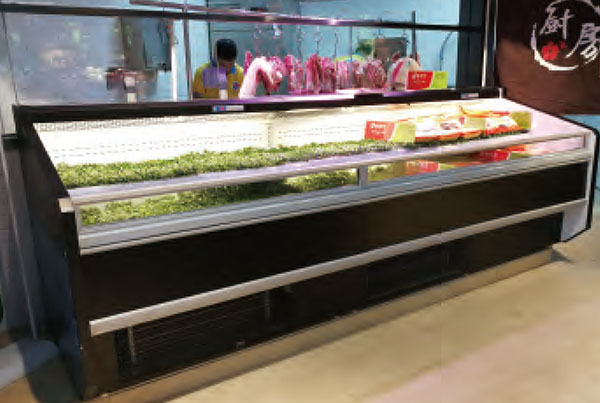

SF41BF Double Deck Supermarket Meat Cooler Service Cabinet; Commercial supermarket fridge manufacturer with 20+ Years of experience, Quality Guaranteed.

Double Deck Fresh Meat Cooler Display Cabinet

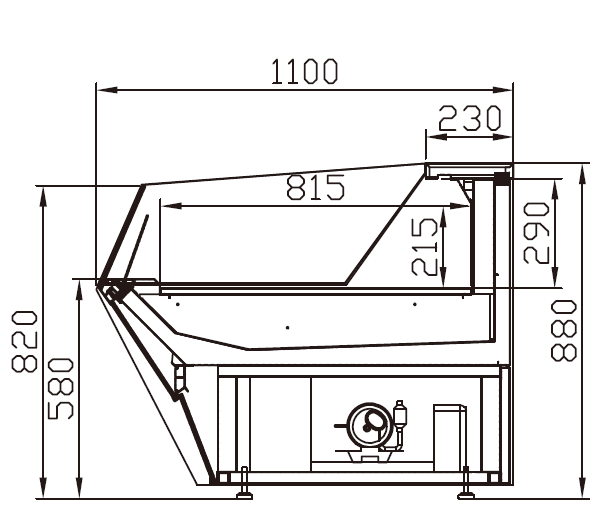

XR41BF Horizontal Supermarket Fresh Meat Chiller Cabinet; Commercial supermarket fridge manufacturer with 20+ Years of experience, Quality Guaranteed.

Horizontal Fresh Meat Chiller Display Case

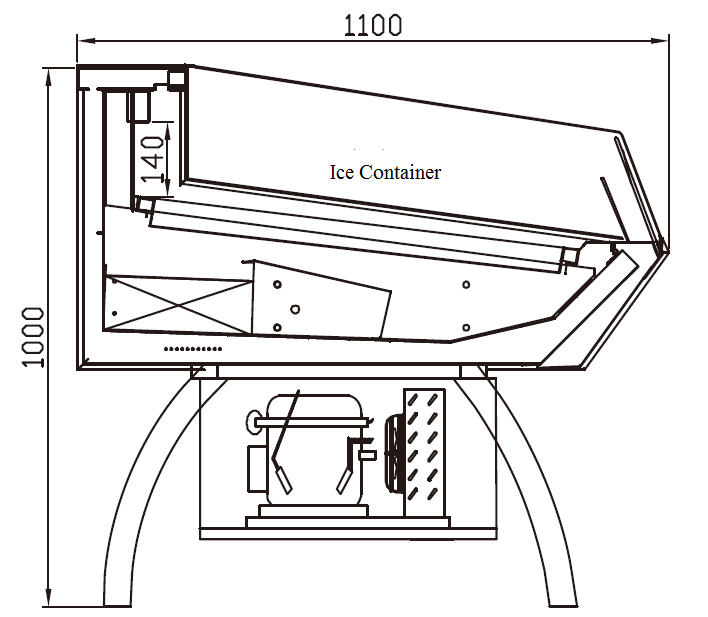

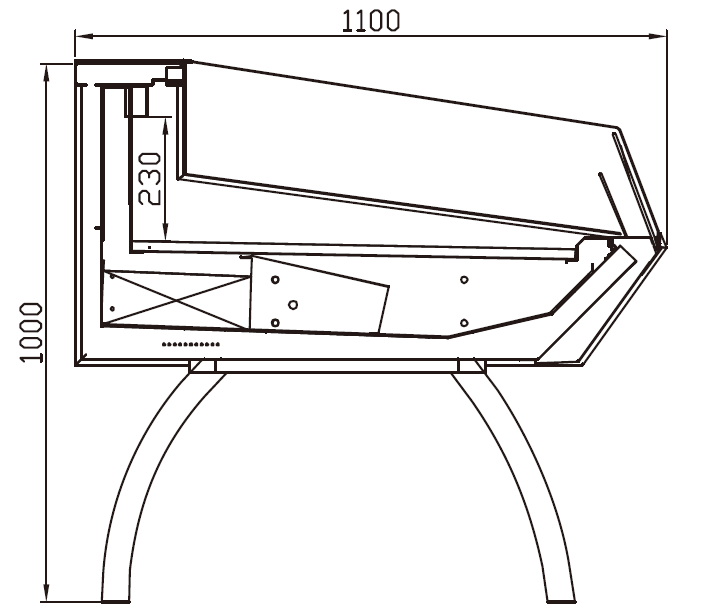

ZF41BZ Supermarket Refrigerated Self-Service Cabinet; Commercial supermarket fridge manufacturer with 20+ Years of experience, Quality Guaranteed.

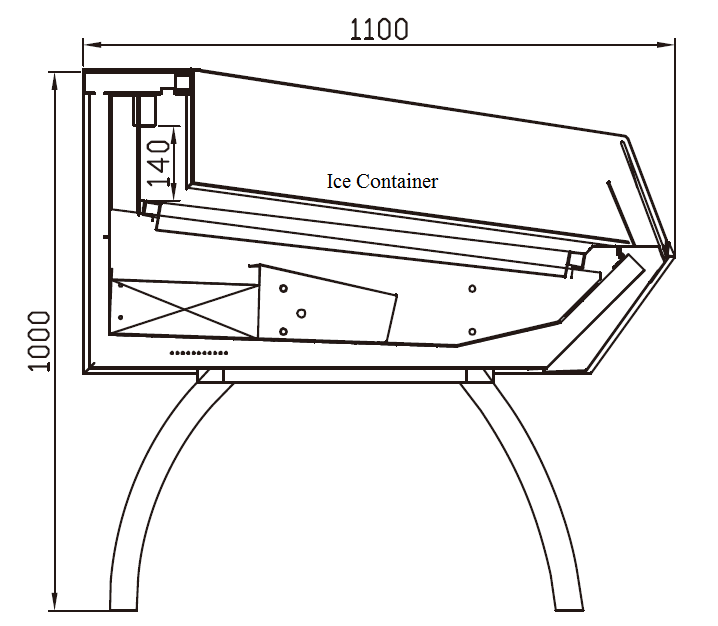

Refrigerated Serve-Over Fish Counters Display Cabinet with Flaked Ice (-2~+2 ℃)

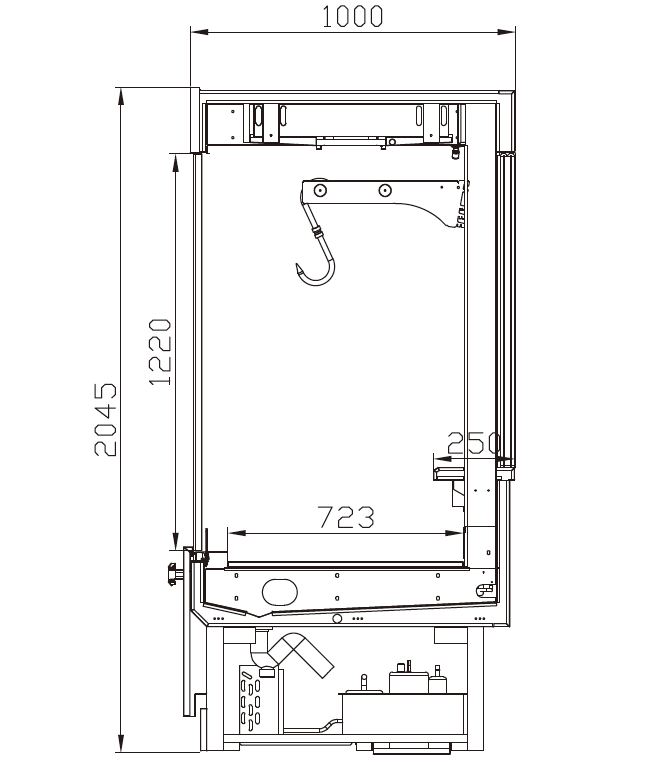

LM4-Z-4D1_Upright_Glass_Door_Butcher_Shop_Refrigerated_Meat_Chiller_Display_Case_Meat_Store_Fridge_Cabinet; Commercial supermarket fridge manufacturer with 20+ Years of experience, Quality Guaranteed.

Upright Glass Door Butcher Shop Refrigerated Meat Display Case (-2~+2 ℃)

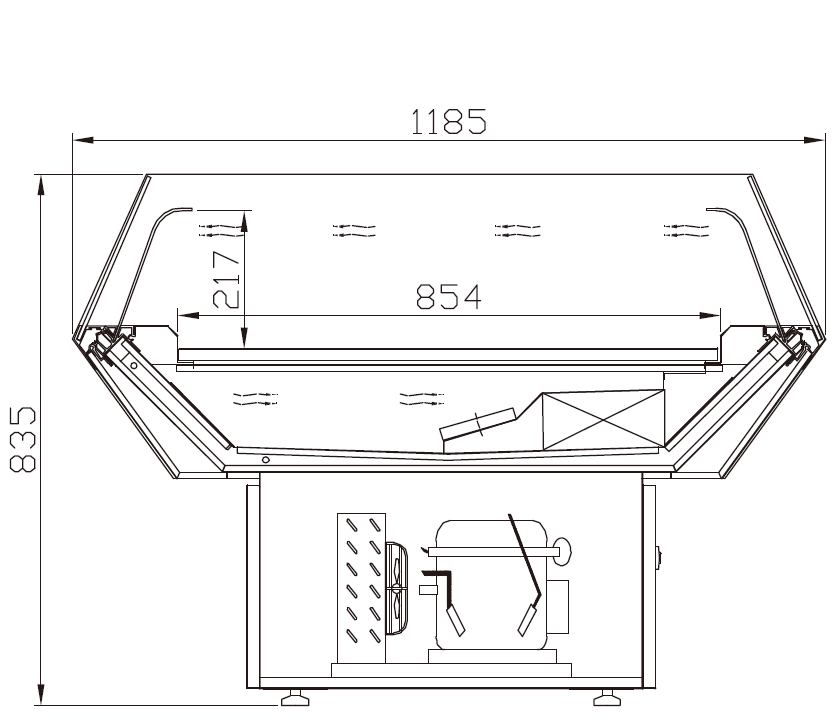

CX41BZ_Hypermarket_Refrigerated_Advertising_Promotional_Display_Cabinet; Commercial supermarket fridge manufacturer with 20+ Years of experience, Quality Guaranteed.

Refrigerated Advertising & Promotional Display Cabinet (+2~+8 ℃)

This series of supermarket meat display cases are available in many attractive designs, customers have plenty choices to combine the meat cases to different layouts. Idea advertisement refrigerator and promotion display cooler to increase the sales of milk & dairy, fresh meat, frozen meat, frozen fish, frozen foods, prepackaged foods, frozen seafoods etc.

1

Classic Type Supermarket Refrigerated Meat Showcase

  • ➢  Supermarket Meat Display Case / Refrigerated Meat Showcase / Meat Case / Meat Counter / Meat Display Cabinet / Meat Service Cabinet / Supermarket Meat Fridge / Meat Cooler / Meat Chiller / Meat Refrigerator / Horizontal Serve-over Counter / Meat Serve-over Counter / Horizontal Serve-over Cabinet / Meat Serve-over Cabinet
  • ➢  To be used in supermarkets, hypermarkets, butcher's stores, poultry & meat shops, food stores etc.
  • ➢  Key Functions: A commercial refrigerated showcase and display cooler for fresh meat, poultry, fish, beef, pork, chicken, mutton.
  • ➢  Chilling temperature: -2 ℃~+2 ℃
  • ➢  Tags: meat case, meat display case, meat showcase, meat service cabinet, meat display cabinet, refrigreated meat case, supermarket meat cooler, supermarket meat chiller,supermarket meat fridge, meat display cooler, meat display chiller, meat display fridge, horizontal serve-over counter, meat serve-over counter, horizontal serve-over cabinet, meat serve-over cabinet

Supermarket Refrigerated Meat Showcase

FRESH & COOL
Classic Type Supermarket Meat Refrigerator Showcase Product Features
  • Elegant and user-friendfly design supermarket fridges, simple and fashionable streamline fridge cabinet, beautiful and well-proportioned lines, larger fridge didplay area. Provide full display effect and create a comfortable supermarket shopping environment for consumers' enjoyable shopping experience and increase supermarket sales.
  • Easily-Disassemblable Modules can be joined together for a longer fridge unit to suit supermarket space.
  • Single supermarket fridge cabinet length from 6 feet to 12 feet, and extensible by connecting, suitable for any size of supermarkets, stores and shops
  • Multiple Colors according to customers' culture and preference
  • High-Efficiency Supermarket Fridge Evaporator with Long-Short Fin Design to improve the frosting condition. The Multi-Dimensional Air Blow Design makes extremely fast cooling, even cooling and low energy consumption.
  • Corner Units available. L-Shape and W-Shape Corner-Joining fridge units for connection to meet your personalized shop and store layouts
  • Free combination for any desired length
  • High Thermal-Efficiency Polyurethane(PU)-Foam-Insulated Board Cabinet
  • The LED integrated microcomputer thermostat is safe and easy to operate for Precise Digital Temperature Display, Monitoring & Temperature Setting.
  • Ebmpapst Energy-Saving Brushless DC Fan Motor. 50% motor energy-saving compared to standard motor, and more quiet.
Superior Quality World Brand Compressors For Powerful Cooling and Freezing Capability. Long Lasting Life & Quiet, Energy-Saving

Superior Quality World Brand Compressors For Powerful Cooling and Freezing Capability. Long Lasting Life & Quiet, Energy-Saving

Both Fridge Condenser & Evaporator With 100% Pure Copper Tube, Strong, No Corrosion, Long-Lasting Life, High Efficiency For Powerful Cooling & Energy-Saving

Both Fridge Condenser & Evaporator With 100% Pure Copper Tube, Strong, No Corrosion, Long-Lasting Life

Ebmpapst Energy-Saving Brushless DC Fan Motor for Supermarket Refrigerators & Freezers

Ebmpapst Energy-Saving Brushless DC Fan Motor -- 50% energy-saving, and more quiet

LED microcomputer digital temperature display controller for Supermarket Refrigerators & Freezers

LED microcomputer digital temperature display controller

Honeycomb Air Outlet Back Blowing Cooling System to Pefectly Return and Retain Cooling Air Inside Fridge Cabinet, Energy-Saving, Laminar Air Flow Cirulation to Cool Down Temperature Quickly and Evenly

Honeycomb Air Outlet Back Blowing Cooling System to Pefectly Return and Retain Cooling Air, Energy-Saving, Laminar Air Flow to Cool Quickly and Evenly

Supermarket Meat Display Cooler With Undercounter Refrigerated Storage Cabinet

Available With Undercounter Intergrated Refrigerated Storage Cabinets Besides the Above Food Display Case

Supermarket Refrigerator LED-Light With Multiple Warm Colors and Magnetic Clips

Long Lasting Life LED-Light With Multiple Colors & Magnetic Clips

Supermarket Fridge Universal Casters, No Noise, Anti-Skid Wheels.

Universal Casters, No Noise. Anti-Skid Wheels

Supermarket Refrigerator & Freezer Cabinet Optional Colors

Supermarket Fridge Cabinet Colors

Product Images
Supermarket Meat Case Manufacturer in China with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

XRA Supermarket Refrigerated Meat Case

Supermarket Meat Display Case Manufacturer in China with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

XRA Supermarket Meat Showcase

Classic Type Supermarket Meat Refrigerator Showcase Product Views

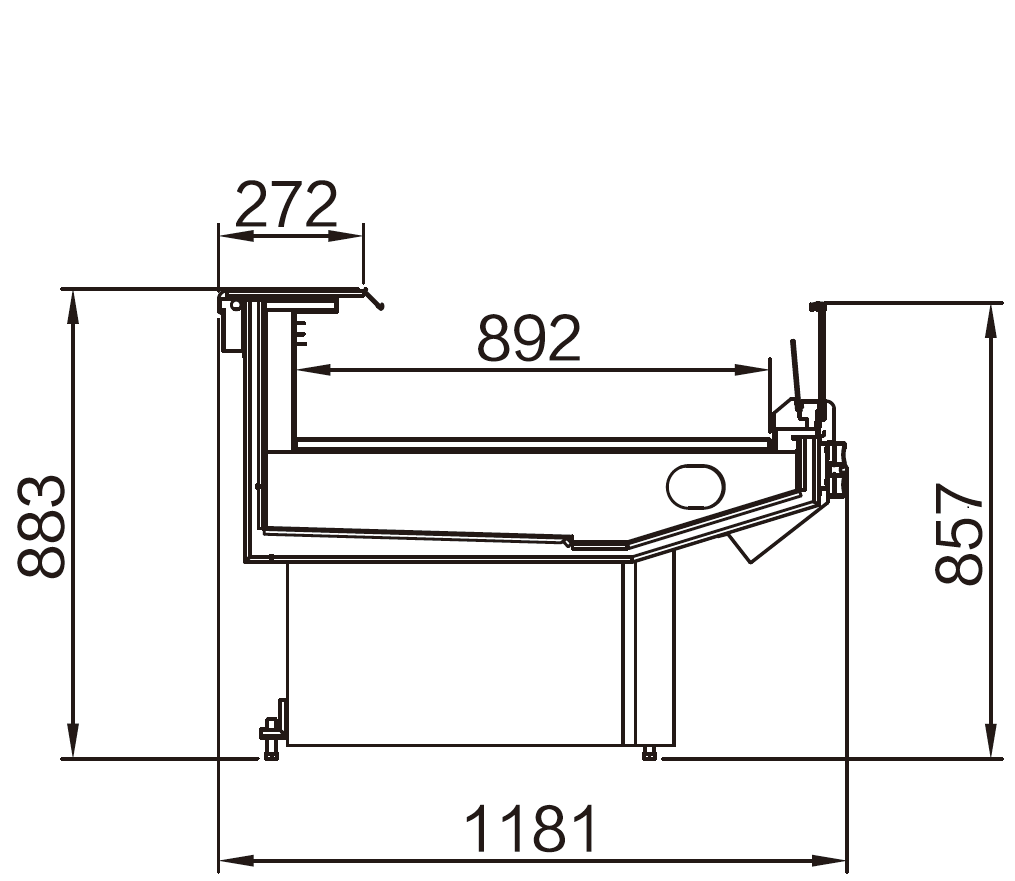

XRA Supermarket Refrigerated Fresh Meat Showcase Left Side View; Professional supermarket meat display case manufactrer, Quality Guaranteed.

XRA Refrigerated Supermarket Meat Showcase

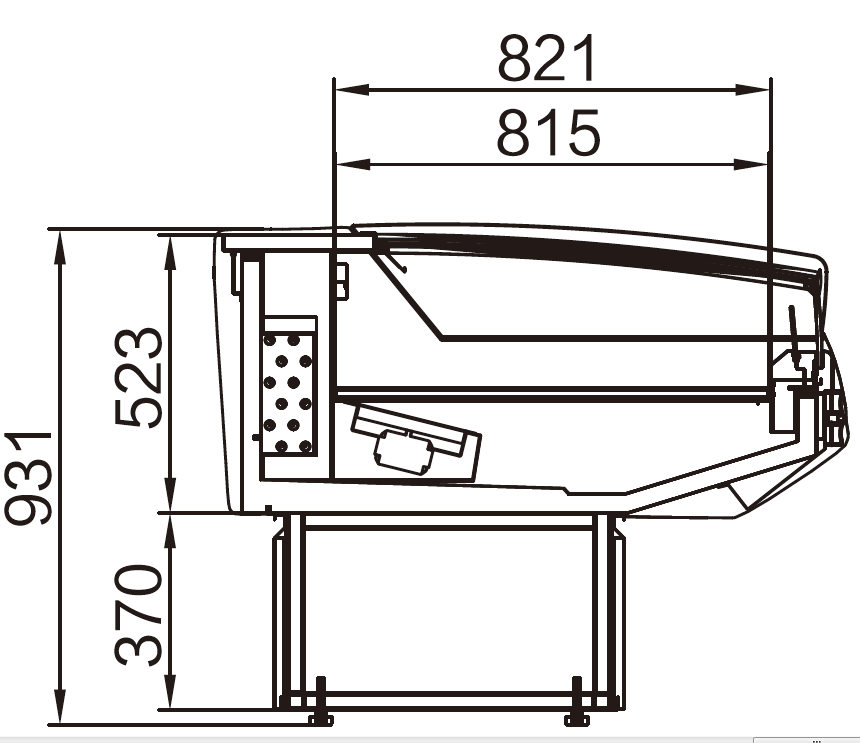

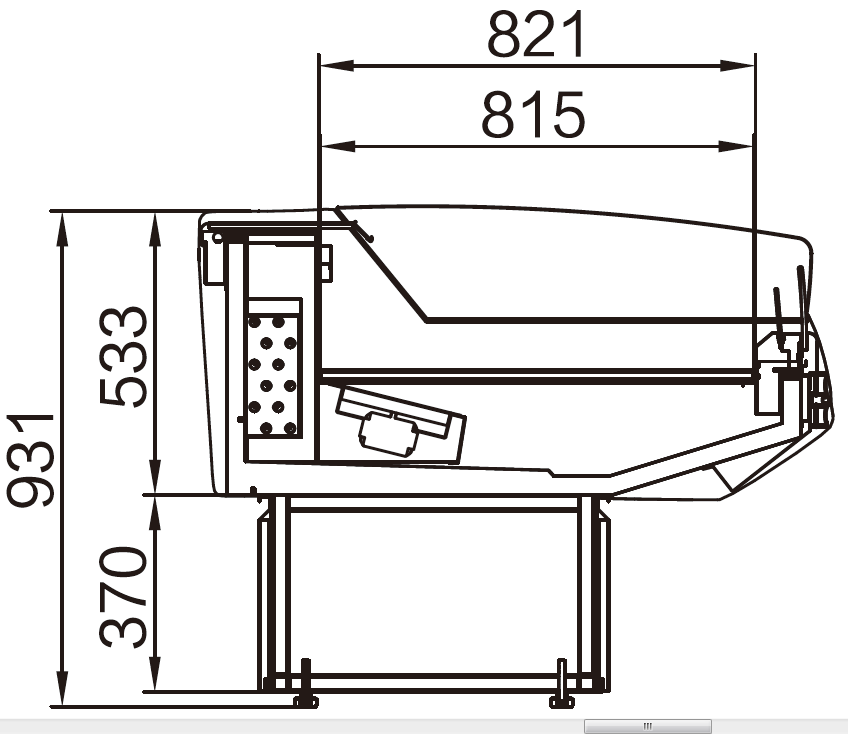

XRA Supermarket Refrigerated Fresh Meat Display Cabinet Left Side View; Professional supermarket meat display case manufactrer, Quality Guaranteed.

XRA Refrigerated Supermarket Meat Display Case

XRA Supermarket Refrigerated Fresh Meat Display Cabinet Left Side View; Professional supermarket meat display case manufactrer, Quality Guaranteed.

XRA Refrigerated Supermarket Meat Display Case

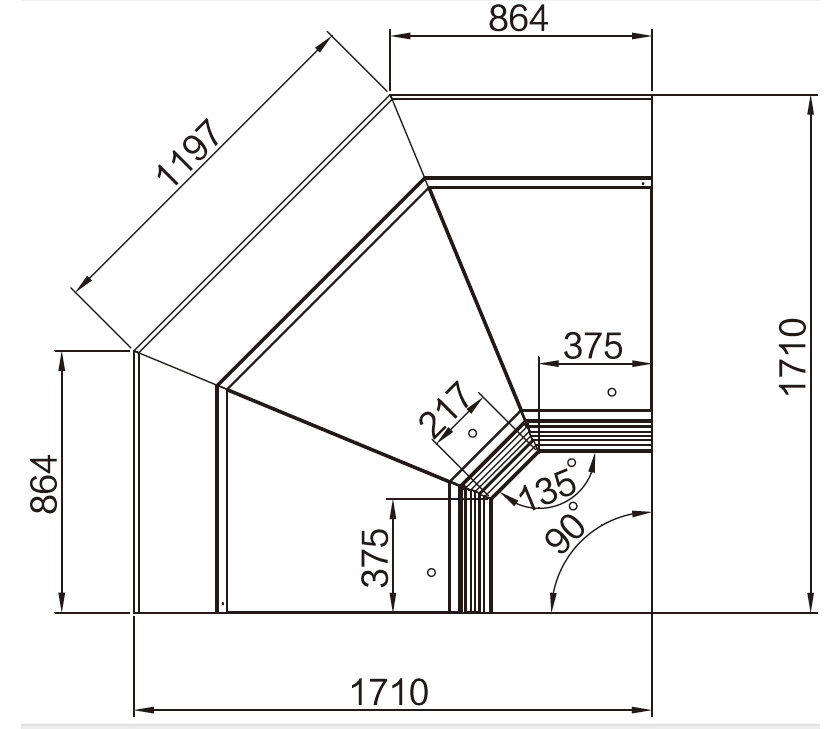

XRA Supermarket Refrigerated Fresh Meat Display Cabinet Corner Connection Vertical View; Professional supermarket meat display case manufactrer, Quality Guaranteed.

XRA Refrigerated Supermarket Meat Display Case Corner Unit

Classic Type Supermarket Meat Refrigerator Showcase Technical Specification
Ask for Price
  Skype       Ask for Price
Model Description Type Storage Temperature Product Length Cabinet Size (mm) Display Area Net Weight Gross Weight Voltage
XR-A06118Z 6' Supermarket Meat Showcase Plug-in Self-Contained -2 ~ +2℃ 1920 mm / 6 ft 1920L x 1180D x 890H 1.72 m2 / 19 sq. ft. 205 kg 245 kg 220V ±10%, 50Hz, 1Ph
XR-A08118Z 8' Supermarket Meat Showcase Plug-in Self-Contained -2 ~ +2℃ 2460 mm / 8 ft 2460L x 1180D x 890H 2.36 m2 / 25 sq. ft. 273 kg 313 kg 220V ±10%, 50Hz, 1Ph
XR-A10118Z 10' Supermarket Meat Showcase Plug-in Self-Contained -2 ~ +2℃ 2840 mm / 10 ft 2840L x 1180D x 890H 2.7 m2 / 29 sq. ft. 305 kg 362 kg 220V ±10%, 50Hz, 1Ph
XR-A12118Z 12' Supermarket Meat Showcase Plug-in Self-Contained -2 ~ +2℃ 3750 mm / 12 ft 3750L x 1180D x 890H 3.4 m2 / 37 sq. ft. 412 kg 452 kg 220V ±10%, 50Hz, 1Ph
2

Natural Wood Color Refrigerated Supermarket Meat Case

  • ➢  Supermarket Refrigerated Meat Case / Meat Display Case / Meat Showcase / Fresh Meat Cooler / Fresh Meat Chiller / Horizontal Serve-over Counter / Meat Serve-over Counter / Horizontal Serve-over Cabinet / Meat Serve-over Cabinet
  • ➢  To be used in supermarkets, hypermarkets, butcher's stores, poultry & meat shops, food stores etc.
  • ➢  Key Functions: A commercial refrigerated showcase and display cooler for fresh meat, poultry, fish, beef, pork, chicken, mutton.
  • ➢  Chilling temperature: -2 ℃~+2 ℃
  • ➢  Tags: meat case, meat display case, meat showcase, meat service cabinet, meat display cabinet, refrigreated meat case, supermarket meat cooler, supermarket meat chiller,supermarket meat fridge, meat display cooler, meat display chiller, meat display fridge, horizontal serve-over counter, meat serve-over counter, horizontal serve-over cabinet, meat serve-over cabinet
  • ➢  Shipping Ports: Shenzhen China, Guangzhou China

Supermarket Refrigerated Meat Display Case

FRESH & COOL
Wood Color Supermarket Refrigerated Meat Case | Meat Counter Product Features
  • Elegant and user-friendfly design supermarket fridges, simple and fashionable streamline fridge cabinet, beautiful and well-proportioned lines, larger fridge didplay area. Provide full display effect and create a comfortable supermarket shopping environment for consumers' enjoyable shopping experience and increase supermarket sales.
  • Easily-Disassemblable Modules can be joined together for a longer fridge unit to suit supermarket space.
  • Single supermarket fridge cabinet length from 6 feet to 12 feet, and extensible by connecting, suitable for any size of supermarkets, stores and shops
  • Multiple Wooden Colors according to customers' culture and preference
  • High-Efficiency Supermarket Fridge Evaporator with Long-Short Fin Design to improve the frosting condition. The Multi-Dimensional Air Blow Design makes extremely fast cooling, even cooling and low energy consumption.
  • Corner Units available. V-Shape/W-Shape/L-Shape Corner-Joining units for connection to meet your personalized shop and store layouts
  • Free combination for any desired length
  • High Thermal-Efficiency Polyurethane(PU)-Foam-Insulated Board Cabinet
  • The LED integrated microcomputer thermostat is safe and easy to operate for Precise Digital Temperature Display, Monitoring & Temperature Setting.
  • Ebmpapst Energy-Saving Brushless DC Fan Motor. 50% motor energy-saving compared to standard motor, and more quiet.
Supermarket Fridge Parts & Componets
Description Standard Parts Optional Parts
Cabinet Material SPCC + Powder Spraying SUS304 Stainless Steel
Lighting LED (6500K) LED (Desired Colour Temp.)
Cabinet Colour Wood Grain Finish/W.P.C. Multiple Wood Colours/Solid Wood
Power Supply 380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph 110V,60Hz;220V,60Hz;380V,60Hz
Worktop Board Stainless Steel
Fan Motor EBM Shaded Pole Motor EBM Brushless DC Motor
Evaporator Corrugated Fin
Compressors Brand Compressors
Thermostat Micro-Computer Digital Temperature Display Thermostat
Decorating Light Floor Light
Refrigerant R404a/R22
Product Images
Supermarket Meat Showcase Manufacturer with 20+ Years in producing Refrigeration Equipment, Quality Guaranteed.

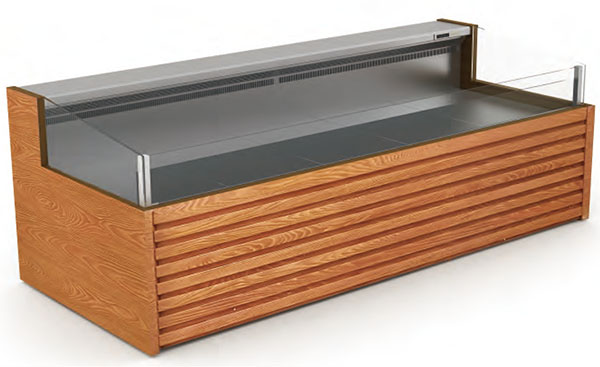

MF41B Wood Color Supermarket Refrigerated Meat Display Case (Remote Cooler)

Supermarket Meat Case Manufacturer with 20+ Years in producing Refrigeration Equipment, Quality Guaranteed.

MF41B Wood Color Supermarket Refrigerated Meat Showase (Remote Cooler)

Supermarket Meat Display Case Manufacturer with 20+ Years in producing Refrigeration Equipment, Quality Guaranteed.

MF41B Supermarket Meat Case with End Cap Unit

Wood Color Supermarket Refrigerated Meat Case | Meat Counter Product Views

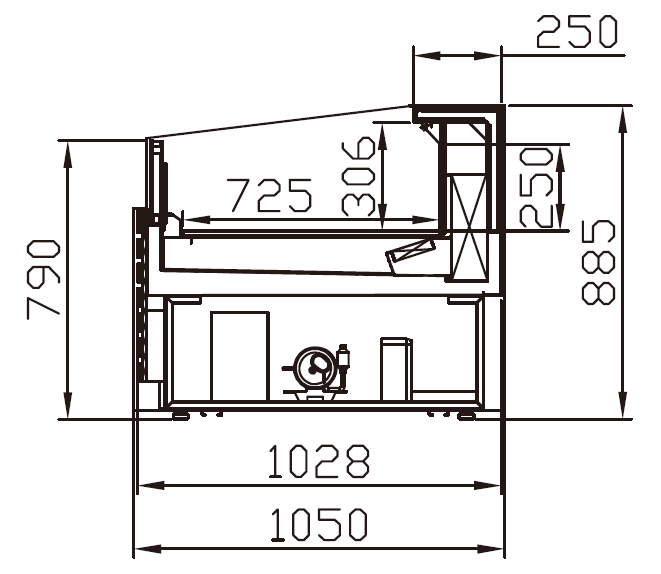

MF41B_Natural_Wood_Color_Supermarket_Refrigerated_Meat_Display_Case_Right_Side_View; Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

MF41B Natural Wood Color Supermarket Meat Display Case

MF41B_Supermarket_Meat_Case_NV_45°_Inward_Corner_Vertical_View; Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

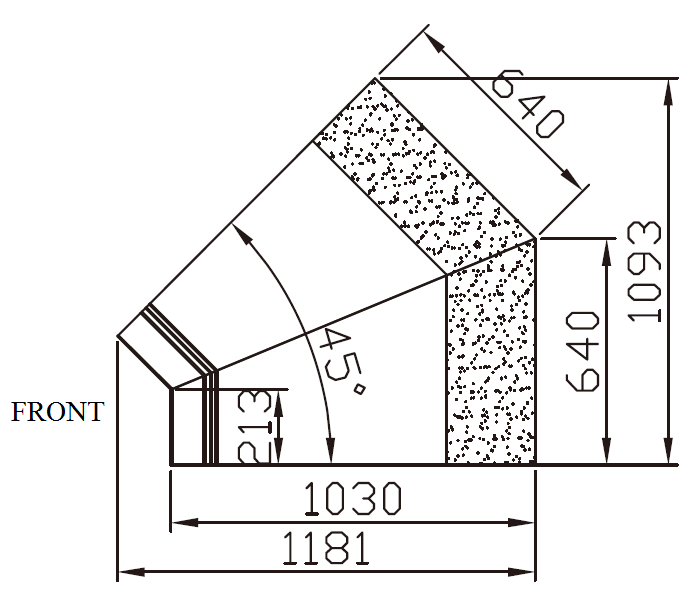

MF41B Supermarket Meat Case NV V-Shape 45° Inward Corner

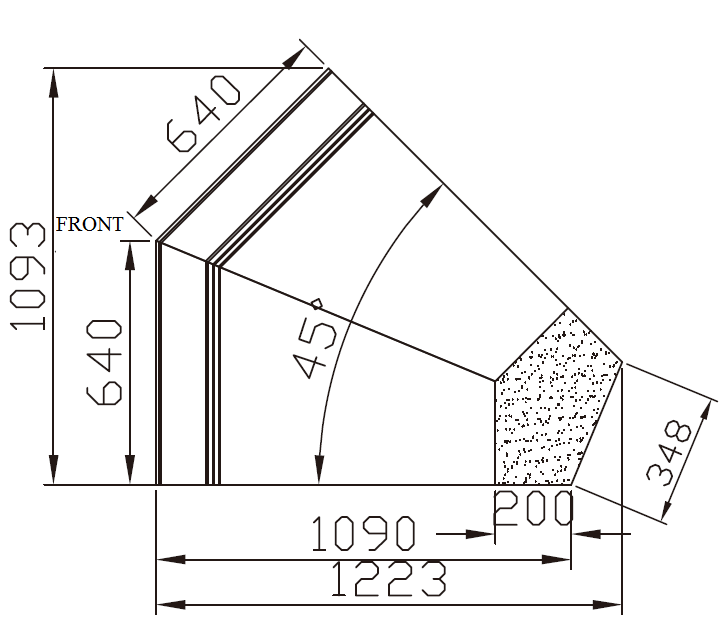

MF41B_Supermarket_Meat_Case_YV_45°_Outward_Corner_Vertical_View; Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

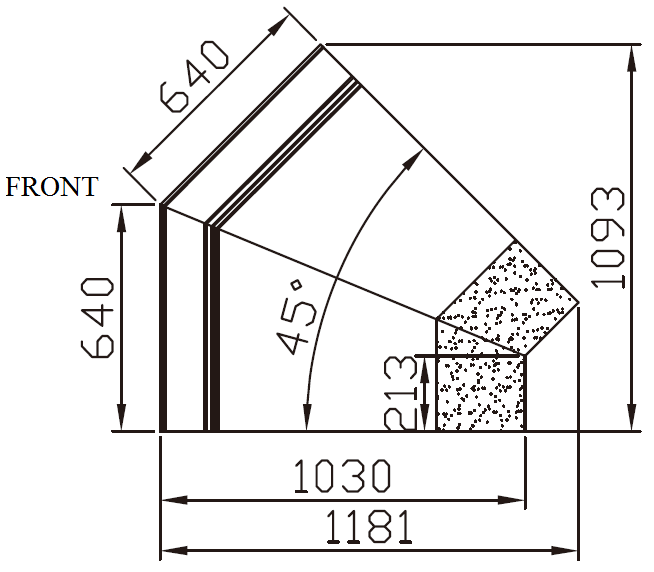

MF41B Supermarket Meat Case YV V-Shape 45° Outward Corner

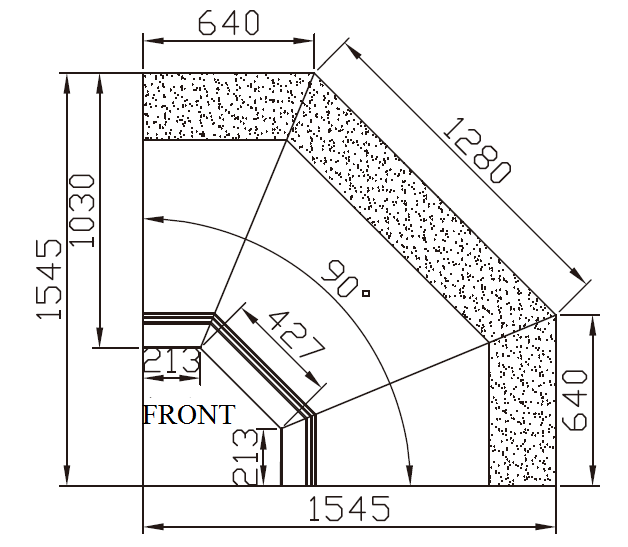

MF41B_Supermarket_Meat_Case_NW_90°_W-Shape_Inward_Corner_Vertical_View; Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

MF41B Supermarket Meat Case NW W-Shape 90° Inward Corner

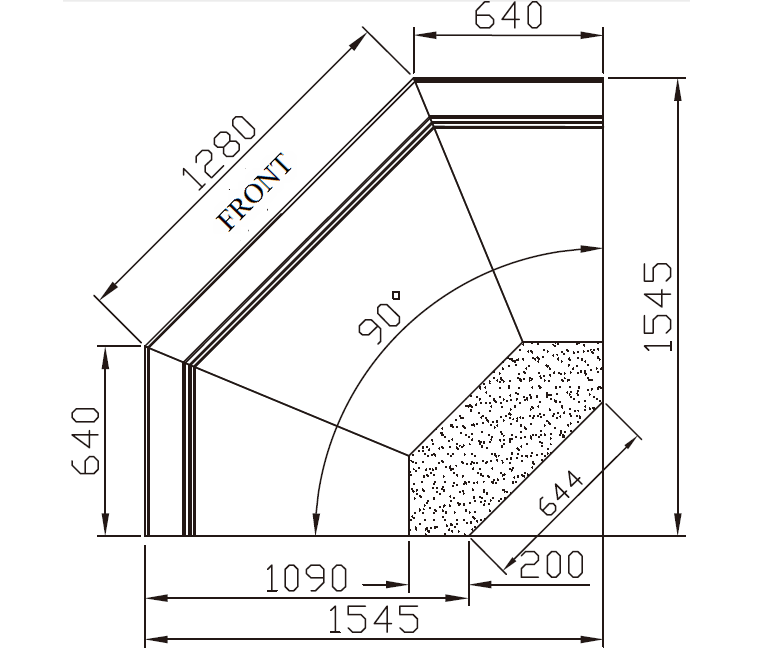

MF41B_Supermarket_Meat_Case_YW_90°_W-Shape_Outward_Corner_Vertical_View; Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

MF41B Supermarket Meat Case YW W-Shape 90° Outward Corner

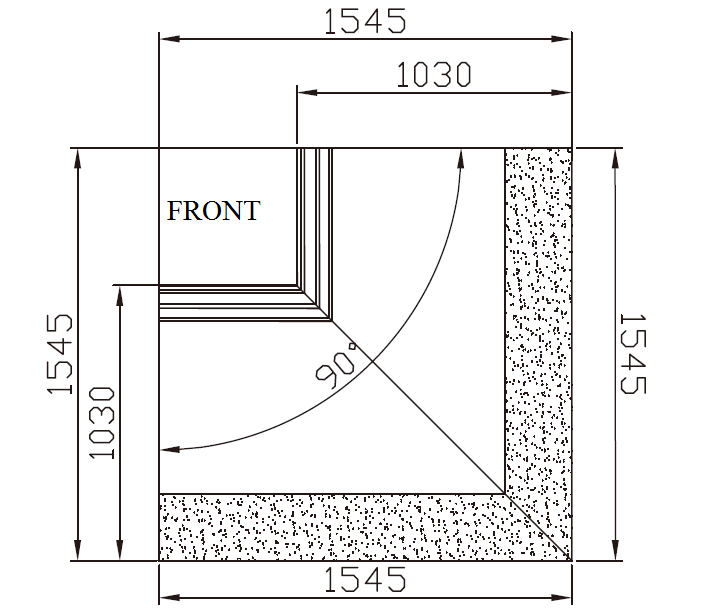

MF41B_Supermarket_Meat_Case_NL_90°_L-Shape_Inward_Corner_Vertical_View; Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

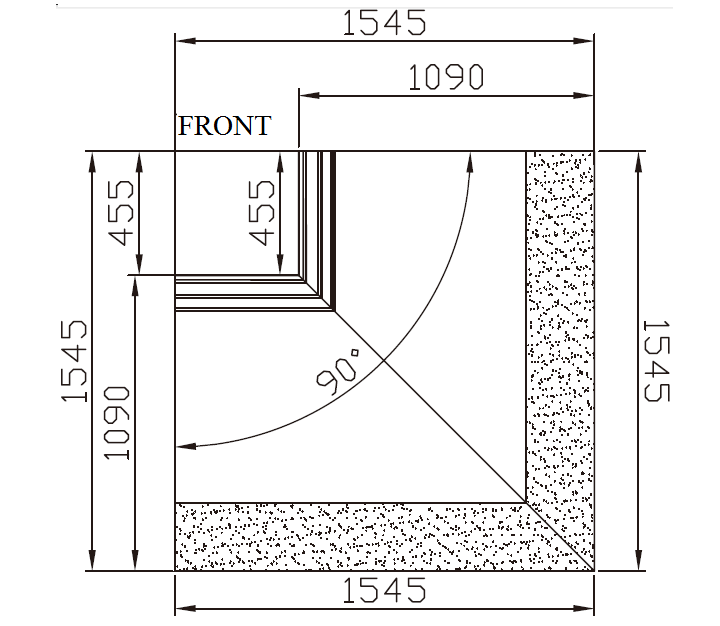

MF41B Supermarket Meat Case NL L-Shape 90° Inward Corner

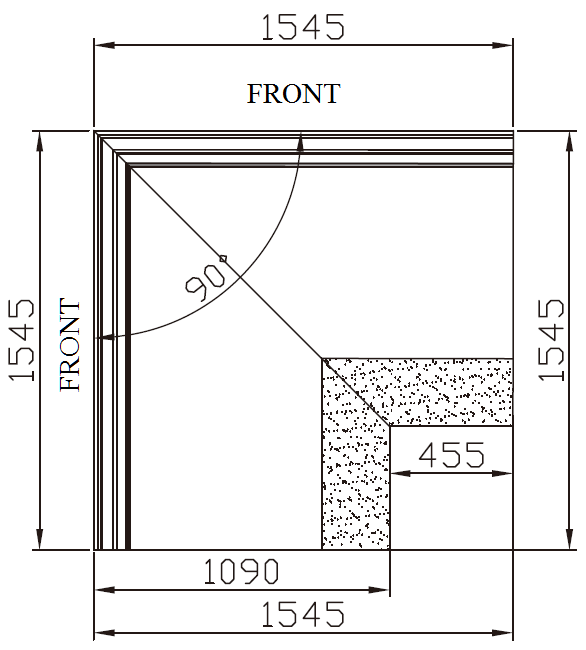

MF41B_Supermarket_Meat_Case_YL_90°_L-Shape_Outward_Corner_Vertical_View; Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

MF41B Supermarket Meat Case YL L-Shape 90° Outward Corner

Wood Color Supermarket Refrigerated Meat Case | Meat Counter (Remote) Technical Specification
Ask for Price
  Skype       Ask for Price
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (625 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
MF41B-06105F 6' Refrigerated Supermarket Meat Case Remote -2 ~ +2℃ / +2 ~ +4℃ 1875 mm / 6 ft 1875L x 1050D x 885H 3 80 mm 1.4 m2 / 15 sq. ft. 0.272 m3 / 10 Cu. Ft. 1291 W 81 W (Indoor) 500 W 380V ±10%, 50Hz, 3Ph
MF41B-08105F 8' Refrigerated Supermarket Meat Case Remote -2 ~ +2℃ / +2 ~ +4℃ 2500 mm / 8 ft 2500L x 1050D x 885H 4 80 mm 1.8 m2 / 19 sq. ft. 0.363 m3 / 13 Cu. Ft. 1722 W 103 W (Indoor) 700 W 380V ±10%, 50Hz, 3Ph
MF41B-10105F 10' Refrigerated Supermarket Meat Case Remote -2 ~ +2℃ / +2 ~ +4℃ 3125 mm / 10 ft 3125L x 1050D x 885H 5 80 mm 2.3 m2 / 25 sq. ft. 0.453 m3 / 16 Cu. Ft. 2152 W 110 W (Indoor) 900 W 380V ±10%, 50Hz, 3Ph
MF41B-12105F 12' Refrigerated Supermarket Meat Case Remote -2 ~ +2℃ / +2 ~ +4℃ 3750 mm / 12 ft 3750L x 1050D x 885H 6 80 mm 2.7 m2 / 29 sq. ft. 0.544 m3 / 19 Cu. Ft. 2583 W 147 W (Indoor) 1200 W 380V ±10%, 50Hz, 3Ph
MF41B-NVF V-Shape 45° Inward Corner Remote -2 ~ +2℃ / +2 ~ +4℃ 230 mm * 2 / 1 ft * 2 (230 * 2)L x 1050D x 885H 45° Inward Corner 80 mm 0.5 m2 / 5 sq. ft. 0.100 m3 / 4 Cu. Ft. 475 W 41 W (Indoor) 400 W 380V ±10%, 50Hz, 3Ph
MF41B-YVF V-Shape 45° Outward Corner Remote -2 ~ +2℃ / +2 ~ +4℃ 680 mm * 2 / 2 ft * 2 (680 * 2)L x 1050D x 885H 45° Outward Corner 80 mm 0.6 m2 / 6 sq. ft. 0.120 m3 / 4 Cu. Ft. 570 W 41 W (Indoor) 400 W 380V ±10%, 50Hz, 3Ph
MF41B-NWF W-Shape 90° Inward Corner Remote -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1050D x 885H 90° Inward Corner 80 mm 1.0 m2 / 11 sq. ft. 0.2 m3 / 7 Cu. Ft. 850 W 62 W (Indoor) 400 W 380V ±10%, 50Hz, 3Ph
MF41B-YWF W-Shape 90° Outward Corner Remote -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1050D x 885H 90° Outward Corner 80 mm 1.2 m2 / 13 sq. ft. 0.24 m3 / 8 Cu. Ft. 1140 W 62 W (Indoor) 400 W 380V ±10%, 50Hz, 3Ph
MF41B-NLF L-Shape 90° Inward Corner Remote -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1050D x 885H 90° Inward Corner 80 mm 1.4 m2 / 15 sq. ft. 0.380 m3 / 13 Cu. Ft. 1220 W 92 W (Indoor) 500 W 380V ±10%, 50Hz, 3Ph
MF41B-YLF L-Shape 90° Outward Corner Remote -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1050D x 885H 90° Outward Corner 80 mm 1.5 m2 / 16 sq. ft. 0.300 m3 / 11 Cu. Ft. 1425 W 92 W (Indoor) 500 W 380V ±10%, 50Hz, 3Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage for the supermarket refrigeration units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.
220V ±10%, 50Hz, 1Ph: China, Vietname, Cambodia, Thailand, Malaysia, Indonesia, Australia, New Zealand, Bangladesh, India, Sri Lanka, Pakistan, Afghanistan, Uzbekistan, Turkmenistan, Kazakhstan, Georgia, Azerbaijan, Iran, Iraq, UAE, Yemen, Turkey, Egypt, Ethiopia, Kenya, Tanzania, Mozambique, Madagascar, South Africa, Angola, Congo, Cameron, Nigeria, Ghana, Cote d'Ivoire, Morocco, Algeria, Libya, Tunisia, Italy, Greece, Spain, Portugal, Britain, France, Germany, Sweden, Norway, Finland, Poland, Hungary, Ukraine, Serbia, Croatia, Romania, Bulgaria, Russia, Chile, Argentina, Paraguay etc.
220V ±10%, 60Hz, 1Ph: Korea, Saudi Arabia, Philippines, Peru etc.
110V ±10%, 60Hz, 1Ph: Japan, United States, Canada, Mexico, Ecuador, Brazil, Colombia, Venezuela etc.

Wood Color Supermarket Refrigerated Meat Case | Meat Counter (Self-Contained) Technical Specification
Ask for Price
  Skype       Ask for Price
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (625 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
MF41B-06105Z 6' Refrigerated Supermarket Meat Case Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 1875 mm / 6 ft 1875L x 1050D x 885H 3 80 mm 1.4 m2 / 15 sq. ft. 0.272 m3 / 10 Cu. Ft. 1291 W 1291 W 500 W 380V ±10%, 50Hz, 3Ph
MF41B-08105Z 8' Refrigerated Supermarket Meat Case Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 2500 mm / 8 ft 2500L x 1050D x 885H 4 80 mm 1.8 m2 / 19 sq. ft. 0.363 m3 / 13 Cu. Ft. 1722 W 1313 W 700 W 380V ±10%, 50Hz, 3Ph
MF41B-10105Z 10' Refrigerated Supermarket Meat Case Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 3125 mm / 10 ft 3125L x 1050D x 885H 5 80 mm 2.3 m2 / 25 sq. ft. 0.453 m3 / 16 Cu. Ft. 2152 W 2010 W 900 W 380V ±10%, 50Hz, 3Ph
MF41B-12105Z 12' Refrigerated Supermarket Meat Case Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 3750 mm / 12 ft 3750L x 1050D x 885H 6 80 mm 2.7 m2 / 29 sq. ft. 0.544 m3 / 19 Cu. Ft. 2583 W 2097 W 1200 W 380V ±10%, 50Hz, 3Ph
MF41B-NVZ V-Shape 45° Inward Corner Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 230 mm * 2 / 1 ft * 2 (230 * 2)L x 1050D x 885H 45° Inward Corner 80 mm 0.5 m2 / 5 sq. ft. 0.100 m3 / 4 Cu. Ft. 475 W 591 W 400 W 380V ±10%, 50Hz, 3Ph
MF41B-YVZ V-Shape 45° Outward Corner Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 680 mm * 2 / 2 ft * 2 (680 * 2)L x 1050D x 885H 45° Outward Corner 80 mm 0.6 m2 / 6 sq. ft. 0.120 m3 / 4 Cu. Ft. 570 W 591 W 400 W 380V ±10%, 50Hz, 3Ph
MF41B-NWZ W-Shape 90° Inward Corner Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1050D x 885H 90° Inward Corner 80 mm 1.0 m2 / 11 sq. ft. 0.2 m3 / 7 Cu. Ft. 850 W 612 W 400 W 380V ±10%, 50Hz, 3Ph
MF41B-YWZ W-Shape 90° Outward Corner Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1050D x 885H 90° Outward Corner 80 mm 1.2 m2 / 13 sq. ft. 0.24 m3 / 8 Cu. Ft. 1140 W 612 W 400 W 380V ±10%, 50Hz, 3Ph
MF41B-NLZ L-Shape 90° Inward Corner Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1050D x 885H 90° Inward Corner 80 mm 1.4 m2 / 15 sq. ft. 0.380 m3 / 13 Cu. Ft. 1220 W 1302 W 500 W 380V ±10%, 50Hz, 3Ph
MF41B-YLZ L-Shape 90° Outward Corner Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1050D x 885H 90° Outward Corner 80 mm 1.5 m2 / 16 sq. ft. 0.300 m3 / 11 Cu. Ft. 1425 W 1302 W 500 W 380V ±10%, 50Hz, 3Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage: 220V ±10%, 50Hz, 1Ph. 110V/60Hz and 220V/60Hz availability to be confirmed.



3

Double Deck Supermarket Fresh Meat Cooler Display Cabinet

  • ➢  Supermarket Refrigerated Meat Case / Meat Display Case / Meat Showcase / Fresh Meat Cooler / Fresh Meat Chiller / Horizontal Serve-over Counter / Meat Serve-over Counter / Horizontal Serve-over Cabinet / Meat Serve-over Cabinet
  • ➢  To be used in supermarkets, hypermarkets, butcher's stores, poultry & meat shops, food stores etc.
  • ➢  Key Functions: A commercial refrigerated showcase and display cooler for fresh meat, poultry, fish, beef, pork, chicken, mutton.
  • ➢  Chilling temperature: -2 ℃~+2 ℃
  • ➢  Tags: meat case, meat display case, meat showcase, meat service cabinet, meat display cabinet, refrigreated meat case, supermarket meat cooler, supermarket meat chiller,meat display fridge, supermarket meat fridge, meat display cooler, meat display chiller, meat display refrigerator, poultry display refrigerator, chicken display refrigerator, beef display refrigerator, fish display refrigerator, horizontal serve-over counter, meat serve-over counter, horizontal serve-over cabinet, meat serve-over cabinet
  • ➢  Shipping Ports: Shenzhen China, Guangzhou China

Double Deck Supermarket Meat Cooler

FRESH & COOL
Double Deck Supermarket Meat Cooler | Poultry Display Cabinet Product Features
  • Elegant and user-friendfly design supermarket fridges, simple and fashionable streamline fridge cabinet, beautiful and well-proportioned lines, larger fridge didplay area. Provide full display effect and create a comfortable supermarket shopping environment for consumers' enjoyable shopping experience and increase supermarket sales.
  • Easily-Disassemblable Modules can be joined together for a longer fridge unit to suit supermarket space.
  • Single supermarket fridge cabinet length from 6 feet to 12 feet, and extensible by connecting, suitable for any size of supermarkets, stores and shops
  • Multiple Colors according to customers' culture and preference
  • Remote split type and Plug-in Self-Contained monoblock type with indoor built-in compressor or outdoor condensor for choice according to display area, installation space, and power supply(single phase and 3-phase)
  • High-Efficiency Supermarket Fridge Evaporator with Long-Short Fin Design to improve the frosting condition. The Multi-Dimensional Air Blow Design makes extremely fast cooling, even cooling and low energy consumption.
  • Free combination for any desired length
  • High Thermal-Efficiency Polyurethane(PU)-Foam-Insulated Board Cabinet
  • The LED integrated microcomputer thermostat is safe and easy to operate for Precise Digital Temperature Display, Monitoring & Temperature Setting.
  • Ebmpapst Energy-Saving Brushless DC Fan Motor. 50% motor energy-saving compared to standard motor, and more quiet.
Supermarket Fridge Parts & Componets
Description Standard Parts Optional Parts
Cabinet Material SPCC + Powder Spraying
Lighting LED (6500K) LED (Desired Colour Temp.)
Cabinet Colour Black Multiple Colours
Power Supply 380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph 110V,60Hz;220V,60Hz;380V,60Hz
Worktop Board SPCC + Powder Spraying
Fan Motor EBM Shaded Pole Motor EBM Brushless DC Motor
Evaporator Corrugated Fin
Compressors Brand Compressors
Thermostat Micro-Computer Digital Temperature Display Thermostat
Nos. of Shelves 1 PC
Refrigerant R404a/R22
Product Images
Supermarket Meat Chiller Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

SF41BF Supermarket Meat Chiller Display Case

Supermarket Meat Cooler Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

SF41BF Supermarket Meat Cooler Display Case

Double Deck Supermarket Meat Cooler | Poultry Display Cabinet Product Views

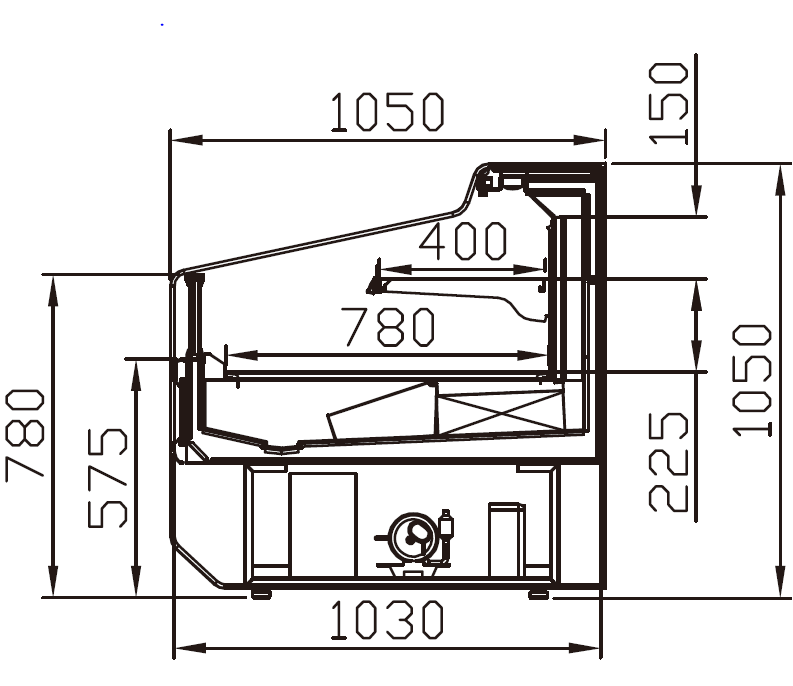

SF41BF_Double_Deck_Supermarket_Meat_Display_Cooler_Service_Cabinet_Right_Side_View; Professional Chinese supermarket refrigerator and freezer manufactrer, Quality Guaranteed.

SF41BF Double Deck Fresh Meat Cooler(Remote Condenser Split Type)

SF41BZ_Double_Deck_Supermarket_Meat_Display_Cooler_Service_Cabinet_Right_Side_View; Professional Chinese supermarket refrigerator and freezer manufactrer, Quality Guaranteed.

SF41BZ Double Deck Fresh Meat Cooler(Built-in Compressor Plug-in Self-Contained)

Double Deck Supermarket Meat Cooler | Poultry Display Cabinet (Remote) Technical Specification
Ask for Price
  Skype       Ask for Price
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (625 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
SF41B-06105F 6' Supermarket Meat Cooler Display Cabinet Remote -2 ~ +2℃ / +2 ~ +4℃ 1875 mm / 6 ft 1875L x 1050D x 1050H 3 80 mm 2.2 m2 / 24 sq. ft. 0.553 m3 / 20 Cu. Ft. 2489 W 101 W (Indoor) 500 W 380V ±10%, 50Hz, 3Ph
SF41B-08105F 8' Supermarket Meat Cooler Display Cabinet Remote -2 ~ +2℃ / +2 ~ +4℃ 2500 mm / 8 ft 2500L x 1050D x 1050H 4 80 mm 3.0 m2 / 32 sq. ft. 0.738 m3 / 26 Cu. Ft. 3319 W 132 W (Indoor) 700 W 380V ±10%, 50Hz, 3Ph
SF41B-10105F 10' Supermarket Meat Cooler Display Cabinet Remote -2 ~ +2℃ / +2 ~ +4℃ 3125 mm / 10 ft 3125L x 1050D x 1050H 5 80 mm 3.7 m2 / 40 sq. ft. 0.922 m3 / 33 Cu. Ft. 4148 W 141 W (Indoor) 900 W 380V ±10%, 50Hz, 3Ph
SF41B-12105F 12' Supermarket Meat Cooler Display Cabinet Remote -2 ~ +2℃ / +2 ~ +4℃ 3750 mm / 12 ft 3750L x 1050D x 1050H 6 80 mm 4.4 m2 / 47 sq. ft. 1.106 m3 / 39 Cu. Ft. 4978 W 191 W (Indoor) 1200 W 380V ±10%, 50Hz, 3Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage for the supermarket refrigeration units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.

Double Deck Supermarket Meat Cooler | Poultry Display Cabinet (Self-Contained) Technical Specification
Ask for Price
  Skype       Ask for Price
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (625 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
SF41B-06105Z 6' Supermarket Meat Cooler Display Case Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 1875 mm / 6 ft 1875L x 1050D x 1050H 3 80 mm 2.2 m2 / 24 sq. ft. 0.553 m3 / 20 Cu. Ft. 2489 W 101 W (Indoor) 500 W 220V ±10%, 50Hz, 1Ph
SF41B-08105Z 8' Supermarket Meat Cooler Display Case Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 2500 mm / 8 ft 2500L x 1050D x 1050H 4 80 mm 3.0 m2 / 32 sq. ft. 0.738 m3 / 26 Cu. Ft. 3319 W 132 W (Indoor) 700 W 220V ±10%, 50Hz, 1Ph
SF41B-10105Z 10' Supermarket Meat Cooler Display Case Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 3125 mm / 10 ft 3125L x 1050D x 1050H 5 80 mm 3.7 m2 / 40 sq. ft. 0.922 m3 / 33 Cu. Ft. 4148 W 141 W (Indoor) 900 W 220V ±10%, 50Hz, 1Ph
SF41B-12105Z 12' Supermarket Meat Cooler Display Case Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 3750 mm / 12 ft 3750L x 1050D x 1050H 6 80 mm 4.4 m2 / 47 sq. ft. 1.106 m3 / 39 Cu. Ft. 4978 W 191 W (Indoor) 1200 W 220V ±10%, 50Hz, 1Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage: 220V ±10%, 50Hz, 1Ph. 110V/60Hz and 220V/60Hz availability to be confirmed.



4

Horizontal Supermarket Meat Chiller Display Case

  • ➢  Supermarket Refrigerated Meat Case / Meat Display Case / Meat Showcase / Fresh Meat Cooler / Fresh Meat ChillerHorizontal Supermarket Meat Chiller Display Case
  • ➢  To be used in supermarkets, hypermarkets, butcher's stores, poultry & meat shops, food stores etc.
  • ➢  Key Functions: A commercial refrigerated showcase and display cooler for fresh meat, poultry, fish, beef, pork, chicken, mutton.
  • ➢  Chilling temperature: -2 ℃~+2 ℃
  • ➢  Tags: meat case, meat display case, meat showcase, meat service cabinet, meat display cabinet, refrigreated meat case, supermarket meat cooler, supermarket meat chiller,meat display fridge, supermarket meat fridge, meat display cooler, meat display chiller, meat display refrigerator, poultry display refrigerator, chicken display refrigerator, beef display refrigerator, fish display refrigerator, horizontal serve-over counter, meat serve-over counter, horizontal serve-over cabinet, meat serve-over cabinet
  • ➢  Shipping Ports: Shenzhen China, Guangzhou China

Horizontal Supermarket Meat Chiller

FRESH & COOL
Horizontal Supermarket Meat Chiller | Poultry Display Case Product Features
  • Elegant and user-friendfly design supermarket fridges, simple and fashionable streamline fridge cabinet, beautiful and well-proportioned lines, larger fridge didplay area. Provide full display effect and create a comfortable supermarket shopping environment for consumers' enjoyable shopping experience and increase supermarket sales.
  • Easily-Disassemblable Modules can be joined together for a longer fridge unit to suit supermarket space.
  • Single supermarket fridge cabinet length from 6 feet to 12 feet, and extensible by connecting, suitable for any size of supermarkets, stores and shops
  • Multiple Colors according to customers' culture and preference
  • High-Efficiency Supermarket Fridge Evaporator with Long-Short Fin Design to improve the frosting condition. The Multi-Dimensional Air Blow Design makes extremely fast cooling, even cooling and low energy consumption.
  • Corner Units available. V-Shape/W-Shape/L-Shape Corner-Joining units for connection to meet your personalized shop and store layouts
  • Free combination for any desired length
  • High Thermal-Efficiency Polyurethane(PU)-Foam-Insulated Board Cabinet
  • The LED integrated microcomputer thermostat is safe and easy to operate for Precise Digital Temperature Display, Monitoring & Temperature Setting.
  • Ebmpapst Energy-Saving Brushless DC Fan Motor. 50% motor energy-saving compared to standard motor, and more quiet.
Supermarket Fridge Parts & Componets
Description Standard Parts Optional Parts
Cabinet Material SPCC + Powder Spraying SUS304 Stainless Steel
Lighting LED-X3C (Red Light) LED (Desired Colour Temp.)
Cabinet Colour White Multiple Colours
Power Supply 380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph 110V,60Hz;220V,60Hz;380V,60Hz
Worktop Board SUS304 Stainless Steel Marble
Fan Motor EBM Shaded Pole Motor EBM Brushless DC Motor
Evaporator Corrugated Fin
Compressors Brand Compressors
Thermostat Micro-Computer Digital Temperature Display Thermostat
Decorating Light Floor Light
Refrigerant R404a/R22
Product Images
Supermarket Fresh Meat Cooler Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

XR41BF Supermarket Fresh Meat Cooler with V-Shap, L-Shape, W-Shape Corner Units

Supermarket Fresh Meat Chiller Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

XR41BF Supermarket Fresh Meat Chiller

Horizontal Supermarket Meat Chiller | Poultry Display Case Product Views
XR41BF_Horizontal_Supermarket_Fresh_Meat_Chiller_Display_Case_Right_Side_View; Professional supermarket display case manufacturer, Quality Guaranteed.

XR41BF Horizontal Supermarket Meat Chiller Display Case

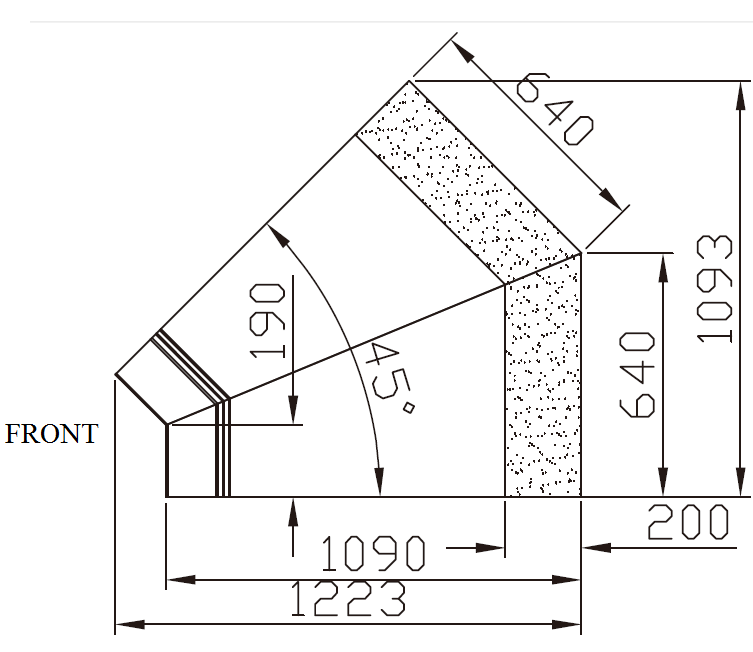

XR41BF_Horizontal_Supermarket_Fresh_Meat_Chiller_Display_Case_NV_45°_Inward_Corner_Vertical_View; Professional supermarket display case manufacturer, Quality Guaranteed.

XR41BF Horizontal Supermarket Meat Chiller Display Case NV 45° Inward Corner

XR41BF_Horizontal_Supermarket_Fresh_Meat_Chiller_Display_Case_YV_45°_Outward_Corner_Vertical_View; Professional supermarket display case manufacturer, Quality Guaranteed.

XR41BF Horizontal Supermarket Meat Chiller Display Case YV 45° Outward Corner

XR41BF_Horizontal_Supermarket_Fresh_Meat_Chiller_Display_Case_NW_90°_W-Shape_Inward_Corner_Vertical_View; Professional supermarket display case manufacturer, Quality Guaranteed.

XR41BF Horizontal Supermarket Meat Chiller Display Case NW W-Shape 90° Inward Corner

XR41BF_Horizontal_Supermarket_Fresh_Meat_Chiller_Display_Case_YW_90°_W-Shape_Outward_Corner_Vertical_View; Professional supermarket display case manufacturer, Quality Guaranteed.

XR41BF Horizontal Supermarket Meat Chiller Display Case YW W-Shape 90° Outward Corner

XR41BF_Horizontal_Supermarket_Fresh_Meat_Chiller_Display_Case_NL_90°_L-Shape_Inward_Corner_Vertical_View; Professional supermarket display case manufacturer, Quality Guaranteed.

XR41BF Horizontal Supermarket Meat Chiller Display Case NL L-Shape 90° Inward Corner

XR41BF_Horizontal_Supermarket_Fresh_Meat_Chiller_Display_Case_YL_90°_L-Shape_Outward_Corner_Vertical_View; Professional supermarket display case manufacturer, Quality Guaranteed.

XR41BF Horizontal Supermarket Meat Chiller Display Case YL L-Shape 90° Outward Corner

Horizontal Supermarket Meat Chiller | Poultry Display Case (Remote) Technical Specification
Ask for Price
  Skype       Ask for Price
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (625 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
XR41B-06110F 6' Supermarket Meat Chiller Display Case Remote -2 ~ +2℃ / +2 ~ +4℃ 1875 mm / 6 ft 1875L x 1100D x 880H 3 80 mm 1.5 m2 / 16 sq. ft. 0.270 m3 / 10 Cu. Ft. 1238 W 81 W (Indoor) 500 W 380V ±10%, 50Hz, 3Ph
XR41B-08110F 8' Supermarket Meat Chiller Display Case Remote -2 ~ +2℃ / +2 ~ +4℃ 2500 mm / 8 ft 2500L x 1100D x 880H 4 80 mm 2.1 m2 / 23 sq. ft. 0.378 m3 / 13 Cu. Ft. 1733 W 103 W (Indoor) 700 W 380V ±10%, 50Hz, 3Ph
XR41B-10110F 10' Supermarket Meat Chiller Display Case Remote -2 ~ +2℃ / +2 ~ +4℃ 3125 mm / 10 ft 3125L x 1100D x 880H 5 80 mm 2.6 m2 / 28 sq. ft. 0.468 m3 / 17 Cu. Ft. 2145 W 110 W (Indoor) 900 W 380V ±10%, 50Hz, 3Ph
XR41B-12110F 12' Supermarket Meat Chiller Display Case Remote -2 ~ +2℃ / +2 ~ +4℃ 3750 mm / 12 ft 3750L x 1100D x 880H 6 80 mm 3.1 m2 / 33 sq. ft. 0.558 m3 / 20 Cu. Ft. 2588 W 147 W (Indoor) 1200 W 380V ±10%, 50Hz, 3Ph
XR41B-NVF V-Shape 45° Inward Corner Remote -2 ~ +2℃ / +2 ~ +4℃ 640 mm * 2 / 2 ft * 2 (640 * 2)L x 1100D x 880H 45° Inward Corner 80 mm 0.6 m2 / 6 sq. ft. 0.108 m3 / 4 Cu. Ft. 495 W 41 W (Indoor) 200 W 380V ±10%, 50Hz, 3Ph
XR41B-YVF V-Shape 45° Outward Corner Remote -2 ~ +2℃ / +2 ~ +4℃ 640 mm * 2 / 2 ft * 2 (640 * 2)L x 1100D x 880H 45° Outward Corner 80 mm 0.7 m2 / 8 sq. ft. 0.126 m3 / 4 Cu. Ft. 578 W 41 W (Indoor) 200 W 380V ±10%, 50Hz, 3Ph
XR41B-NWF W-Shape 90° Inward Corner Remote -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1100D x 880H 90° Inward Corner 80 mm 1.2 m2 / 13 sq. ft. 0.216 m3 / 8 Cu. Ft. 990 W 62 W (Indoor) 300 W 380V ±10%, 50Hz, 3Ph
XR41B-YWF W-Shape 90° Outward Corner Remote -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1100D x 880H 90° Outward Corner 80 mm 1.4 m2 / 15 sq. ft. 0.252 m3 / 9 Cu. Ft. 1155 W 62 W (Indoor) 300 W 380V ±10%, 50Hz, 3Ph
XR41B-NLF L-Shape 90° Inward Corner Remote -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1100D x 880H 90° Inward Corner 80 mm 1.6 m2 / 17 sq. ft. 0.288 m3 / 10 Cu. Ft. 1320 W 92 W (Indoor) 500 W 380V ±10%, 50Hz, 3Ph
XR41B-YLF L-Shape 90° Outward Corner Remote -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1100D x 880H 90° Outward Corner 80 mm 1.7 m2 / 18 sq. ft. 0.306 m3 / 11 Cu. Ft. 1403 W 92 W (Indoor) 500 W 380V ±10%, 50Hz, 3Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage for the supermarket refrigeration units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.

Horizontal Supermarket Meat Chiller | Poultry Display Case (Self-Contained) Technical Specification
Ask for Price
  Skype       Ask for Price
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (625 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
XR41B-06110Z 6' Supermarket Meat Chiller Showcase Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 1875 mm / 6 ft 1875L x 1100D x 880H 3 80 mm 1.5 m2 / 16 sq. ft. 0.270 m3 / 10 Cu. Ft. 1238 W 1291 W 500 W 220V ±10%, 50Hz, 1Ph
XR41B-08110Z 8' Supermarket Meat Chiller Showcase Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 2500 mm / 8 ft 2500L x 1100D x 880H 4 80 mm 2.1 m2 / 23 sq. ft. 0.378 m3 / 13 Cu. Ft. 1733 W 1313 W 700 W 220V ±10%, 50Hz, 1Ph
XR41B-10110Z 10' Supermarket Meat Chiller Showcase Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 3125 mm / 10 ft 3125L x 1100D x 880H 5 80 mm 2.6 m2 / 28 sq. ft. 0.468 m3 / 17 Cu. Ft. 2145 W 2010 W 900 W 220V ±10%, 50Hz, 1Ph
XR41B-12110Z 12' Supermarket Meat Chiller Showcase Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 3750 mm / 12 ft 3750L x 1100D x 880H 6 80 mm 3.1 m2 / 33 sq. ft. 0.558 m3 / 20 Cu. Ft. 2588 W 2097 W 1200 W 220V ±10%, 50Hz, 1Ph
XR41B-NVZ V-Shape 45° Inward Corner Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 640 mm * 2 / 2 ft * 2 (640 * 2)L x 1100D x 880H 45° Inward Corner 80 mm 0.6 m2 / 6 sq. ft. 0.108 m3 / 4 Cu. Ft. 495 W 591 W 200 W 220V ±10%, 50Hz, 1Ph
XR41B-YVZ V-Shape 45° Outward Corner Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 640 mm * 2 / 2 ft * 2 (640 * 2)L x 1100D x 880H 45° Outward Corner 80 mm 0.7 m2 / 8 sq. ft. 0.126 m3 / 4 Cu. Ft. 578 W 591 W 200 W 220V ±10%, 50Hz, 1Ph
XR41B-NWZ W-Shape 90° Inward Corner Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1100D x 880H 90° Inward Corner 80 mm 1.2 m2 / 13 sq. ft. 0.216 m3 / 8 Cu. Ft. 990 W 797 W 300 W 220V ±10%, 50Hz, 1Ph
XR41B-YWZ W-Shape 90° Outward Corner Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1100D x 880H 90° Outward Corner 80 mm 1.4 m2 / 15 sq. ft. 0.252 m3 / 9 Cu. Ft. 1155 W 797 W 300 W 220V ±10%, 50Hz, 1Ph
XR41B-NLZ L-Shape 90° Inward Corner Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1100D x 880H 90° Inward Corner 80 mm 1.6 m2 / 17 sq. ft. 0.288 m3 / 10 Cu. Ft. 1320 W 1302 W 500 W 220V ±10%, 50Hz, 1Ph
XR41B-YLZ L-Shape 90° Outward Corner Plug-in Self-Contained -2 ~ +2℃ / +2 ~ +4℃ 1545 mm / 5 ft 1545L x 1100D x 880H 90° Outward Corner 80 mm 1.7 m2 / 18 sq. ft. 0.306 m3 / 11 Cu. Ft. 1403 W 1302 W 500 W 220V ±10%, 50Hz, 1Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage: 220V ±10%, 50Hz, 1Ph. 110V/60Hz and 220V/60Hz availability to be confirmed.



5

Supermarket Serve-Over Fish Counters Cabinet

  • ➢  Serve-Over Fish Counters, Supermarket Refrigerated Self Serve Cabinet / Refrigerated Self Serve Showcase / Self Serve Display Case / Self Service Display Cabinet / Seafood Display Case / Refigerated Fish Showcase / Aquatic Products Display Fridge / Horizontal Serve-over Counter / Seafood Serve-over Counter / Fish Serve-over Counter / Aquatic Products Serve-over Counter / Horizontal Serve-over Cabinet / Seafoods Serve-over Cabinet / Fish Serve-over Cabinet / Aquatic Products Serve-over Cabinet
  • ➢  To be used in supermarkets, hypermarkets, butcher's stores, poultry & meat shops, food stores etc.
  • ➢  Key Functions: A commercial refrigerated showcase and display chiller for frozen meat and poultry, iced fish and seafish .
  • ➢  Chilling temperature: -2 ℃~+2 ℃
  • ➢  Tags: Self Serve Cabinet, Self Serve Case, Self Serve Showcase, Refrigerated Self Service Display Case, Iced Preservation Display Case, Horizontal Serve-over Counter, Seafoods Serve-over Counter, Iced Fish Serve-over Counter, Aquatic Products Serve-over Counter, Horizontal Serve-over Cabinet, Seafoods Serve-over Cabinet, Iced Fish Serve-over Cabinet, Aquatic Products Serve-over Cabinet
  • ➢  Shipping Ports: Shenzhen China, Guangzhou China

Self Serve Supermarket Refrigerated Showcase

FRESH & COOL
Supermarket Seafood Display Case | Refrigerated Fish Display Cabinet | Aquatic Products Refrigerator Product Features
  • Elegant and user-friendfly design supermarket fridges, simple and fashionable streamline fridge cabinet, beautiful and well-proportioned lines, larger fridge didplay area. Provide full display effect and create a comfortable supermarket shopping environment for consumers' enjoyable shopping experience and increase supermarket sales.
  • Iced Preservation Model for the storage and display of iced fish, seafood, aquatic products and seafish
  • Multiple Colors according to customers' culture and preference
  • High-Efficiency Supermarket Fridge Evaporator with Long-Short Fin Design to improve the frosting condition. The Multi-Dimensional Air Blow Design makes extremely fast cooling, even cooling and low energy consumption.
  • High Thermal-Efficiency Polyurethane(PU)-Foam-Insulated Board Cabinet
  • The LED integrated microcomputer thermostat is safe and easy to operate for Precise Digital Temperature Display, Monitoring & Temperature Setting.
  • Ebmpapst Energy-Saving Brushless DC Fan Motor. 50% motor energy-saving compared to standard motor, and more quiet.
Supermarket Fridge Parts & Componets
Description Standard Parts Optional Parts
Cabinet Material SPCC + Powder Spraying SUS304 Stainless Steel
Lighting LED-004 (6500K) LED (Desired Colour Temp.)
Cabinet Colour White Multiple Colours
Power Supply 380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph 110V,60Hz;220V,60Hz;380V,60Hz
Worktop Board SUS304 Stainless Steel
Fan Motor EBM Shaded Pole Motor EBM Brushless DC Motor
Evaporator Corrugated Fin
Compressors Brand Compressors
Thermostat Micro-Computer Digital Temperature Display Thermostat
Refrigerant R404a/R22
Supermarket Seafood Display Case | Refrigerated Fish Display Cabinet | Aquatic Products Refrigerator Product Views
ZF41BF Refrigerated Supermarket Self-Service Cabinet Right Side View; Professional Chinese supermarket refrigerator and freezer manufactrer, Quality Guaranteed.

ZF41BF Refrigerated Supermarket Self-Serve Cabinet(Remote Condenser Split Type)

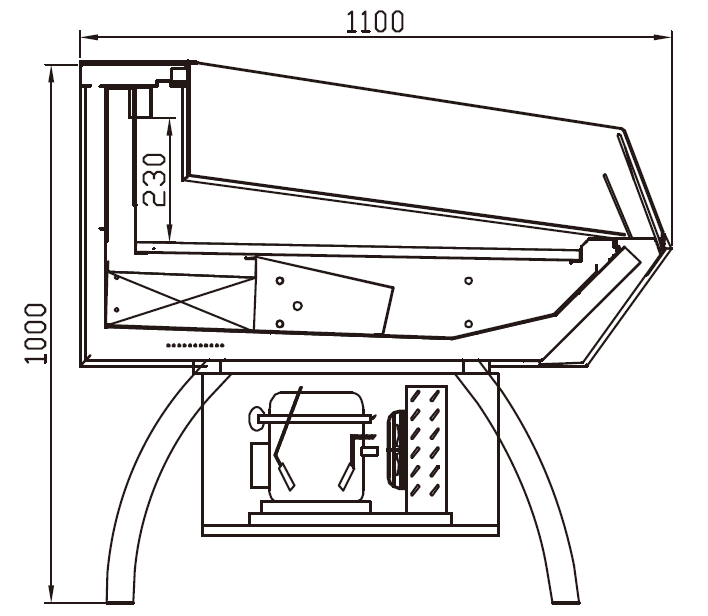

ZF41BZ Refrigerated Supermarket Self-Service Showcase Right Side View; Professional Chinese supermarket refrigerator and freezer manufactrer, Quality Guaranteed.

ZF41BZ Refrigerated Supermarket Self-Serve Showcase(Built-in Compressor Plug-in Self-Contained)

ZF42BF Refrigerated Supermarket Self-Service Display Case With Ice Container Right Side View; Professional Chinese supermarket refrigerator and freezer manufactrer, Quality Guaranteed.

ZF21BF Supermarket Self-Serve Display Case With Ice Container(Remote Condenser Split Type)

ZF42BZ Refrigerated Supermarket Self-Service Display Cabinet With Ice Container Right Side View; Professional Chinese supermarket refrigerator and freezer manufactrer, Quality Guaranteed.

ZF42BZ Supermarket Self-Serve Display Cabinet With Ice Container(Built-in Compressor Plug-in Self-Contained)

Supermarket Seafood Display Case | Refrigerated Fish Display Cabinet | Aquatic Products Refrigerator (Remote) Technical Specification
Ask for Price
  Skype       Ask for Price
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (625 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
ZF41B-06110F 6' Supermarket Self Serve Cabinet Remote -2 ~ +2℃ 1875 mm / 6 ft 1875L x 1100D x 1000H 3 80 mm 1.5 m2 / 16 sq. ft. 0.231 m3 / 8 Cu. Ft. 1153 W 90 W (Indoor) 500 W 380V ±10%, 50Hz, 3Ph
ZF41B-08110F 8' Supermarket Self Serve Cabinet Remote -2 ~ +2℃ 2500 mm / 8 ft 2500L x 1100D x 1000H 4 80 mm 2.1 m2 / 23 sq. ft. 0.308 m3 / 11 Cu. Ft. 1538 W 90 W (Indoor) 700 W 380V ±10%, 50Hz, 3Ph
ZF41B-10110F 10' Supermarket Self Serve Cabinet Remote -2 ~ +2℃ 3125 mm / 10 ft 3125L x 1100D x 1000H 5 80 mm 2.6 m2 / 28 sq. ft. 0.384 m3 / 14 Cu. Ft. 1922 W 160 W (Indoor) 900 W 380V ±10%, 50Hz, 3Ph
ZF41B-12110F 12' Supermarket Self Serve Cabinet Remote -2 ~ +2℃ 3750 mm / 12 ft 3750L x 1100D x 1000H 6 80 mm 3.1 m2 / 33 sq. ft. 0.461 m3 / 16 Cu. Ft. 2306 W 160 W (Indoor) 1200 W 380V ±10%, 50Hz, 3Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage for the supermarket refrigeration units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.

Supermarket Seafood Display Case | Refrigerated Fish Display Cabinet | Aquatic Products Refrigerator (Self-Contained) Technical Specification
Ask for Price
  Skype       Ask for Price
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (625 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
ZF41B-06110Z 6' Refrigerated Self Serve Showcase Plug-in Self-Contained -2 ~ +2℃ 1875 mm / 6 ft 1875L x 1100D x 1000H 3 80 mm 1.5 m2 / 16 sq. ft. 0.231 m3 / 8 Cu. Ft. 1153 W 640 W 500 W 220V ±10%, 50Hz, 1Ph
ZF41B-08110Z 8' Refrigerated Self Serve Showcase Plug-in Self-Contained -2 ~ +2℃ 2500 mm / 8 ft 2500L x 1100D x 1000H 4 80 mm 2.1 m2 / 23 sq. ft. 0.308 m3 / 11 Cu. Ft. 1538 W 1190 W 700 W 220V ±10%, 50Hz, 1Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage: 220V ±10%, 50Hz, 1Ph. 110V/60Hz and 220V/60Hz availability to be confirmed.

Supermarket Seafood Case | Refrigerated Fish Cabinet | Aquatic Products Chiller (Ice Bed | Remote) Technical Specification
Ask for Price
  Skype       Ask for Price
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (625 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
ZF42B-06110F 6' Refrigerated Self Serve Display Case with Ice Container Remote -2 ~ +2℃ 1875 mm / 6 ft 1875L x 1100D x 1000H 3 80 mm 1.5 m2 / 16 sq. ft. 0.231 m3 / 8 Cu. Ft. 1153 W 90 W (Indoor) 500 W 380V ±10%, 50Hz, 3Ph
ZF42B-08110F 8' Refrigerated Self Serve Case with Ice Container Remote -2 ~ +2℃ 2500 mm / 8 ft 2500L x 1100D x 1000H 4 80 mm 2.1 m2 / 23 sq. ft. 0.308 m3 / 11 Cu. Ft. 1538 W 90 W (Indoor) 700 W 380V ±10%, 50Hz, 3Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage for the supermarket refrigeration units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.

Supermarket Seafood Case | Refrigerated Fish Cabinet | Aquatic Products Chiller (Ice Bed | Self-Contained) Technical Specification
Ask for Price
  Skype       Ask for Price
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (625 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
ZF42B-06110Z 6' Refrigerated Self Serve Display Cabinet with Ice Container Plug-in Self-Contained -2 ~ +2℃ 1875 mm / 6 ft 1875L x 1100D x 1000H 3 80 mm 1.5 m2 / 16 sq. ft. 0.231 m3 / 8 Cu. Ft. 1153 W 640 W 500 W 220V ±10%, 50Hz, 1Ph
ZF42B-08110Z 8' Refrigerated Self Serve Display Cabinet with Ice Container Plug-in Self-Contained -2 ~ +2℃ 2500 mm / 8 ft 2500L x 1100D x 1000H 4 80 mm 2.1 m2 / 23 sq. ft. 0.308 m3 / 11 Cu. Ft. 1538 W 1190 W 700 W 220V ±10%, 50Hz, 1Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage: 220V ±10%, 50Hz, 1Ph. 110V/60Hz and 220V/60Hz availability to be confirmed.



6

Upright Glass Door Butcher Shop Refrigerated Meat Display Case

  • ➢  Upright Supermarket Refrigerated Meat Case / Hanging Meat Display Case / Hanging Meat Showcase / Vertical Fresh Meat Cooler / Upright Fresh Meat Chiller
  • ➢  To be used in supermarkets, hypermarkets, butcher's stores, poultry & meat shops, food stores etc.
  • ➢  Key Functions: A commercial refrigerated showcase and display cooler for fresh meat, poultry, fish, beef, pork, chicken, mutton.
  • ➢  Chilling temperature: -2 ℃~+2 ℃
  • ➢  Tags: hanging meat case, hanging meat display case, hanging meat showcase, hanging meat service cabinet, vertical meat display cabinet, vertical refrigreated meat case, vertical supermarket meat cooler, upright supermarket meat chiller, upright meat display fridge, upright supermarket meat fridge, vertical meat display cooler, vertical meat display chiller, stand type meat display refrigerator, stand type poultry display refrigerator, stand type chicken display refrigerator, stand type beef display refrigerator, stand type fish display refrigerator
  • ➢  Shipping Ports: Shenzhen China, Guangzhou China

Upright Supermarket & Butcher Shop
Meat Display Fridge Cabinet

FRESH & COOL
Upright Glass Door Supermarket & Butcher Shop Meat Display Fridge Product Features
  • Elegant and user-friendfly design supermarket fridges, simple and fashionable streamline fridge cabinet, beautiful and well-proportioned lines, larger fridge didplay area. Provide full display effect and create a comfortable supermarket shopping environment for consumers' enjoyable shopping experience and increase supermarket sales.
  • Optional front sliding door or rear sliding glass door for the convenience to take the displayed hanging meats
  • 4-Side-Glass refrigerated meat showcase. Excellent for meat sales promotion.
  • This upright meat fridge is equipped with Butcher Meat Hooks & Rack. Excellent for meat sales promotion.
  • Easily-Disassemblable Modules can be joined together for a longer fridge unit to suit supermarket space.
  • Single supermarket fridge cabinet length from 6 feet to 12 feet, and extensible by connecting, suitable for any size of supermarkets, stores and shops
  • Free combination for any desired length
  • High-Efficiency Supermarket Fridge Evaporator with multi-dimensional refrigeration to make fast and even cooling to ensure meat freshness and quality.
  • High Thermal-Efficiency Polyurethane(PU)-Foam-Insulated Board Cabinet
  • The LED integrated microcomputer thermostat is safe and easy to operate for Precise Digital Temperature Display, Monitoring & Temperature Setting.
  • Ebmpapst Energy-Saving Brushless DC Fan Motor. 50% motor energy-saving compared to standard motor, and more quiet.
Supermarket Fridge Parts & Componets
Description Standard Parts Optional Parts
Cabinet Material SPCC + Powder Spraying SUS304 Stainless Steel
Lighting LED LED (Desired Colour Temp.)
Cabinet Colour Black/Grey/Wood Color
Power Supply 380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph 110V,60Hz;220V,60Hz;380V,60Hz
Butcher Hangers Meat Hooks & Rack
Fan Motor EBM Shaded Pole Motor EBM Brushless DC Motor
Evaporator Corrugated Fin
Compressors Brand Compressors/Panasonic
Thermostat Micro-Computer Digital Temperature Display Thermostat
Refrigerant R22
Doors Double Layer Vaccumed Glass Sliding Doors
Castors Swivel Castors
Upright Supermarket & Butcher Shop Refrigerated Meat Showcase Product Views
LM4-Z-4D1_Upright_Glass_Door_Butcher_Shop_Refrigerated_Meat_Chiller_Display_Case_Meat_Store_Fridge_Cabinet_Right_Side_View_Right_Side_View; Professional supermarket display case manufacturer, Quality Guaranteed.

LM4-Z-4D1 Vertical Glass Door Supermarket & Butcher Shop Meat Display Case

Upright Supermarket & Butcher Shop Refrigerated Meat Display Case Technical Specification
Ask for Price
  Skype       Ask for Price
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (625 mm) Side Panel Display Area Capacity Input Power Defrost Voltage
LM4-04206Z-4D1 4' Butcher Shop Meat Fridge Plug-in Fridge -2 ~ +2℃ 1250 mm / 4 ft 1250L x 1030D x 2060H 4 80 mm 3.0 m2 / 32 sq. ft. 1.250 m3 / 44 Cu. Ft. 1351 W 300 W 220V ±10%, 50Hz, 1Ph
LM4-05206Z-4D1 5' Butcher Shop Meat Fridge Plug-in Fridge -2 ~ +2℃ 1525 mm / 5 ft 1525L x 1030D x 2060H 5 80 mm 3.2 m2 / 34 sq. ft. 1.500 m3 / 53 Cu. Ft. 1756 W 370 W 220V ±10%, 50Hz, 1Ph
LM4-06206Z-4D1 6' Butcher Shop Meat Fridge Plug-in Fridge -2 ~ +2℃ 1830 mm / 6 ft 1830L x 1030D x 2060H 6 80 mm 3.6 m2 / 39 sq. ft. 1.876 m3 / 66 Cu. Ft. 2281 W 600 W 220V ±10%, 50Hz, 1Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage for the supermarket refrigeration units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.



7

Hypermarket Refrigerated Advertising & Promotion Display Cabinet

  • ➢  Supermarket Refrigerated Promotion Cabinet / Refrigerated Promotion Showcase / Refrigerated Promotion Display Case / Advertisement Display Cooler / Advertisement Display Chiller / Supermarket Promotion Cooler / Supermarket Promotion Fridge
  • ➢  To be used in supermarkets, hypermarkets, butcher's stores, poultry & meat shops, food stores etc.
  • ➢  Key Functions: A Supermarket Fridge to display and promote the sales of fresh and frozen meat and poultry and dairy.
  • ➢  Chilling temperature: -2 ℃~+2 ℃
  • ➢  Tags: supermarket promotion cooler, supermarket promotion chiller, supermarket promotion fridge, supermarket promotion display cooler, supermarket advertising refrigerator, supermarket advertising fridge, refrigerated promotion display cabinet, refrigerated promotion display case, refrigerated promotion showcase
  • ➢  Shipping Ports: Shenzhen China, Guangzhou China

Hypermarket Advertising Refrigerated Display Case

FRESH & COOL
Supermarket Refrigerated Food Service Case | Self-Service Cabinet | Frozen Foods Display Case Product Features
  • Elegant and user-friendfly design supermarket fridges, simple and fashionable streamline fridge cabinet, beautiful and well-proportioned lines, larger fridge didplay area. Provide full display effect and create a comfortable supermarket shopping environment for consumers' enjoyable shopping experience and increase supermarket sales.
  • Multiple Colors according to customers' culture and preference
  • High-Efficiency Supermarket Fridge Evaporator with Long-Short Fin Design to improve the frosting condition. The Multi-Dimensional Air Blow Design makes extremely fast cooling, even cooling and low energy consumption.
  • High Thermal-Efficiency Polyurethane(PU)-Foam-Insulated Board Cabinet
  • The LED integrated microcomputer thermostat is safe and easy to operate for Precise Digital Temperature Display, Monitoring & Temperature Setting.
Supermarket Fridge Parts & Componets
Description Standard Parts Optional Parts
Cabinet Material SPCC + Powder Spraying SUS304 Stainless Steel
Cabinet Colour White Multiple Colours
Power Supply 220V ±10%, 50Hz, 1Ph 110V,60Hz;220V,60Hz
Fan Motor Axis Flow Fan
Evaporator Corrugated Fin
Compressors Brand Compressors
Thermostat Micro-Computer Digital Temperature Display Thermostat
Refrigerant R404a
Supermarket Refrigerated Food Service Case | Self-Service Cabinet | Frozen Foods Display Case Product Views
CX41BZ Hypermarket Refrigerated Advertising & Promotional Display Cabinet Front View; Professional Chinese hypermarket refrigerator and freezer manufacturer, Quality Guaranteed, Affordable Price.

CX41BZ Hypermarket Refrigerated Advertising & Promotional Display Case

Supermarket Refrigerated Food Service Case | Self-Service Cabinet | Frozen Foods Display Case Technical Specification
Ask for Price
  Skype       Ask for Price
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (625 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
CX41B-04119Z 4' Supermarket Promotion Cooler Plug-in Self-Contained -2 ~ +2℃ 1250 mm / 4 ft 1250L x 1185D x 835H 2 40 mm 1.1 m2 / 12 sq. ft. 0.213 m3 / 8 Cu. Ft. 583 W 700 W 400 W 220V ±10%, 50Hz, 1Ph
CX41B-05119Z 5' Supermarket Promotion Refrigerator Plug-in Self-Contained -2 ~ +2℃ 1500 mm / 5 ft 1500L x 1185D x 835H 2.5 40 mm 1.3 m2 / 14 sq. ft. 0.355 m3 / 13 Cu. Ft. 704 W 845 W 500 W 220V ±10%, 50Hz, 1Ph
CX41B-06119Z 6' Supermarket Promotion Fridge Plug-in Self-Contained -2 ~ +2℃ 1875 mm / 6 ft 1875L x 1185D x 835H 3 40 mm 1.6 m2 / 17 sq. ft. 0.319 m3 / 11 Cu. Ft. 880 W 1065 W 500 W 220V ±10%, 50Hz, 1Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage: 220V ±10%, 50Hz, 1Ph. 110V/60Hz and 220V/60Hz availability to be confirmed.



Related Products

Supermarket Beverage & Drinks Refrigerator Showcase Manufacturer & Supplier in China

Supermarket Refrigerator - Glass Door Display Cooler

Supermarket Freezer Manufacturer & Supplier in China

Supermarket Freezer - Vertical Glass Door Display Freezer

Supermarket Fridge Manufacturer & Supplier in China

Supermarket Air Curtain Cooler | Open Chiller

Supermarket Island Freezer Manufacturer & Supplier in China

Supermarket Island Freezer

Supermarket Deli Showcase Manufacturer & Supplier in China

Supermarket Deli Display Case & Foodservice Cabinet

Supermarket Display Case Manufacturer & Supplier in China

Supermarket Seadfood Display Case

Supermarket Aquariums Manufacturer & Supplier in China

Supermarket Aquarium & Shellfish Tank

Supermarket Multideck Refrigerator Manufacturer & Supplier in China

Supermarket & Convenience Store Multideck Chiller

Supermarket Milk & Dairy Refrigerator Manufacturer & Supplier in China

Convenience Store Multideck Milk & Dairy Fridge

Supermarket Beverage Refrigerator Showcase Manufacturer & Supplier in China

Convenience Store Beverage Refrigerator Showcase

Supermarket Beverage Showcase Manufacturer & Supplier in China

Convenience Store Freezer Showcase

Featured Products

Walk-in Cooler & Freezer Cold Room Manufacturer & Supplier in China

Walk in Cooler & Freezer Cold Rooms

Insulated Cold Room Sandwich Panel Manufacturer & Supplier in China

Cold Room Panels: Sandwich Panel/PU Insulated Panel

Beverage Showcase Manufacturer & Supplier in China

Refrigerated Showcase: Beverage Display Fridge

Gelato Display Freezer Case & Ice Cream Showcase Manufacturer & Supplier in China

Ice Cream Showcase & Gelato Display Case

Hot Sales

Walk-in Cold Rooms - Professional cold room manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Walk-in Cold Rooms
Walk-in Cold Storage Warehouses - Professional cold storage room manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Cold Storage Warehouses
Walk-in Cold Storage Warehouses - Professional cold storage warehouse manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Ice Cream Refrigerated Warehouse
Walk-in Coolers - Professional cold storage warehouse manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Walk-in Coolers
Walk-in Freezers - Professional cold storage warehouse manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Walk-in Freezers
Walk-in Chiller Cold Stores - Professional cold store manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Walk-in Chillers
Walk-in Cold Room Panels, Sandwich Panels, Insulation Panels, PU Panels - Professional cold room panel manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Cold Room Panels
Cold Room Refrigeration Units -Evaporator & Condenser - Professional cold room refrigeration system producer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Cold Room Evaporator & Condenser
Walk-in Cold Room Doors - Professional cold room refrigeration system producer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Cold Room Doors
Professional Chinese Supermarket Refrigerator & Freezer Manufacturer - Supermarket Air Curtain Coolers Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Refrigerators & Freezers
Professional Chinese Supermarket Fridge Manufacturer - Supermarket Multideck Chiller Pioneer Factory Producer in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Multideck Chillers
Professional Chinese Supermarket Refrigerator & Freezer Manufacturer - Supermarket Island Freezers Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Island Freezers
Professional Chinese Supermarket Refrigerator & Freezer Manufacturer - Supermarket Refrigerated Meat Showcases Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Meat Display Cases
Professional Chinese Supermarket Refrigerator & Freezer Manufacturer - Supermarket Deli Display Cases Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Deli Display Cases
Professional Chinese Supermarket Refrigerator & Freezer Manufacturer - Hypermarket Vertical Glass-Door Display Coolers Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Display Coolers
Professional Chinese Supermarket Refrigerator & Freezer Manufacturer - Hypermarket Vertical Glass-Door Display Freezers Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Display Freezers
Professional Chinese Supermarket Refrigerator & Freezer Manufacturer - Supermarket Vertical Display Freezers Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Upright Freezers
Supermarket Fridge Producer in China - Supermarket Aquariums & Fish Tanks Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Aquariums & Fish Tanks
Supermarket Fridge Producer in China - Supermarket Milk Cooler Showcase & Dairy Chiller Display Case Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Milk & Dairy Showcases
Supermarket Fridge Producer in China - Supermarket & Convenient Store Beverage Cooler Showcase Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Beverage Coolers
Supermarket Fridge Producer in China - Supermarket & Convenient Store Upright Freezer Showcase Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Freezer Showcases
China Beverage Display Cooler Manufacturer - 1-Door Upright Beverage Display Cooler
Single Door Beverage Cooler
China Beverage Display Cooler Manufacturer - 2-Door Upright Beverage Display Cooler
Double Door Beverage Cooler
China Beverage Display Cooler Manufacturer - 3-Door Upright Beverage Display Cooler
Triple Door Beverage Cooler
Chinese manufacturer of undercounter back bar fridge. High quality at competitive price.
Undercounter Back Bar Cooler
Chinese manufacturer of countertop refrigerator showcase. High quality at competitive price.
Countertop Beverage Refrigerator
Chinese manufacturer of barrel cooler/can cooler. High quality at competitive price.
Can Coolers
China Ice Cream Showcase Manufacturer - Curved Glass Ice Cream Showcase Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Curved Ice Cream Showcase
China Ice Cream Showcase Manufacturer - Plain Glass Ice Cream Showcase
Plain Ice Cream Showcase
China Ice Cream Showcase Manufacturer - Ice Cream Cart Showcase
Ice Cream Cart
China Ice Cream Showcase Manufacturer - Rotary Gelato Showcase
Rotary Gelato Display Case
Vegetables & Fruits Refrigerated Warehouse - Professional cold room manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Vegetables & Fruits Refrigerated Warehouse
Poultry & Meat Freezer Room - Professional cold room manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Poultry & Meat Freezer Room
Food Processing Cold Storage Plant - Professional cold room manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Food Processing Cold Storage Plant
Potato Cold Storage Warehouse - Professional cold room manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Potato Cold Storage Warehouse
Cold Chain Refrigerated Warehouse - Professional cold room manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Cold Chain Refrigerated Warehouse
Supermarket Cold Storage Warehouse - Professional cold room manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Cold Storage Warehouse
Insulated Sandwich Cold Storage Panel - Professional cold room manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Insulated Sandwich Panel
Cold Storage Condenser - Professional cold room manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Cold Storage Condenser
Cold Storage Evaporator Unit Cooler - Professional cold room manufacturer,designer and supplier in China. High quality at affordable price. Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Cold Storage Evaporator Unit Cooler
Professional Chinese Supermarket Cooler Manufacturer - Supermarket Air Curtain Coolers Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Air Curtain Coolers
Professional Chinese Supermarket Cooler Manufacturer - Supermarket Open Coolers Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Open Coolers
Professional Chinese Supermarket Cooler Manufacturer - Supermarket Multideck Fridges Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Multideck Fridges
Professional Chinese Supermarket Cooler Manufacturer - Supermarket Multideck Chillers Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Multideck Chillers
Professional Chinese Supermarket Cooler Manufacturer - Supermarket Vegetables & Fruits Chillers Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Vegetables & Fruits Chillers
Chinese Supermarket Freezer Manufacturer - Supermarket Island Freezer Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Single Island Freezer
Chinese Supermarket Freezer Manufacturer - Supermarket Island Freezer Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Double Island Freezer
Chinese Supermarket Freezer Manufacturer - Supermarket Island Freezer Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Supermarket Combined Island Freezers
Chinese Supermarket Meat Display Case Manufacturer - Supermarket Poultry & Meat Cooler Showcase Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Classic Meat Display Case
Chinese Supermarket Meat Display Case Manufacturer - Supermarket Poultry & Meat Cooler Showcase Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Wood Color Meat Display Case
Chinese Supermarket Meat Display Case Manufacturer - Supermarket Poultry & Meat Cooler Showcase Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Double Deck Meat Cooler
Chinese Supermarket Meat Display Case Manufacturer - Supermarket Poultry & Meat Cooler Showcase Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Iced Fish & Seafood Display Case
Chinese Supermarket Meat Display Case Manufacturer - Supermarket Poultry & Meat Cooler Showcase Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Advertising Refrigerated Display Case
Chinese Supermarket Meat Display Case Manufacturer - Supermarket Poultry & Meat Cooler Showcase Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Horizontal Meat Chiller
Chinese Supermarket Meat Display Case Manufacturer - Supermarket Poultry & Meat Cooler Showcase Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Upright Refrigerated Meat Showcase
Chinese Convenience Store Fridge Manufacturer - Supermarket Convenience Store Cooler Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Convenience Store Coolers
Chinese Convenience Store Fridge Manufacturer - Supermarket Convenience Store Freezer Pioneer Factory in China among commercial & industrial refrigeration equipment manufactuers & suppliers.
Convenience Store Freezers
Bookmark to Social Media for Later Review
Share

Enquiry
