SUPERMARKET REFRIGERATION EQUIPMENT

SUPERMARKET SEMI-HEIGHT MULTIDECK CHILLERS

We manufacture and supply whole range of Supermkarket Refrigeration Equipment including Supermarket Chillers and Supermarket Freezers. This serie of Half-Height Supermarket Multi-Deck Chillers are the Refrigerated Supermarket Fridge Display Cases designed with our unique Multi-Direction Air Blow technology for quick chilling and energy-saving efficiency. This supermarket multideck display fridge series include both remote chiller and plugin chiller, open chiller and glass door chiller, which can be used as drinks & beverage display chiller, vegetable & fruits chiller, milk and dairy chiller, meat display chiller, deli food service display cabinet etc.

Supermarket Fridge Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

The refrigerated storage temperature of this supermarket diplay cases is at the chilling and cooling temperature of optional +3~+7℃ / -1~+5℃ / +2 ~ +8℃ / -2 ℃~+2 ℃ for the different refrigered display and storage purposes of beverage & drinks, fruits, vegetables & produces, milk & dairy, fresh meats, poultries, eggs, prepackaged foods, cooked foods, deli foods, processed foods, food materials, dry goods etc.

Our Supermarket Fridges are widely used in foodservice industry for wholesale storage warehouses and retail stores including supermarkets, hypermarkets, supercenters, shopping malls, superstores, retail chain stores, self-service stores, foods stores, convenience stores, grocery stores, drinks shops, food markets, produce markets, seafood shops, butcher's shops, fowl shops, aquatic product stores, green grocery and vegetables stores, snack bars, hotels & restaurants etc. Professional supermarket fridge manufacturer and supplier in China with over 20 years of experience in commercial refrigeration equipment & supermarket refrigeration equipment, quality is guaranteed.

SUPERMARKET SEMI-HEIGHT MULTI-DECK CHILLERS DESIGNS & STYLES

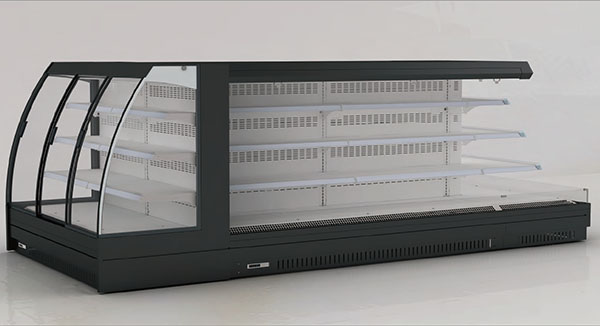

Island Air-Curtain Open Cooler (Remote); Supermarket Fridge Producer with 20+ Years of experience, Quality Guaranteed.

Supermarket Multideck Open Cooler (Remote)

Supermarket Vegetables & Fruits Open Chiller (Remote); Supermarket Fridge Producer with 20+ Years of experience, Quality Guaranteed.

Supermarket Vegetables & Fruits Open Chiller (Plug-in)

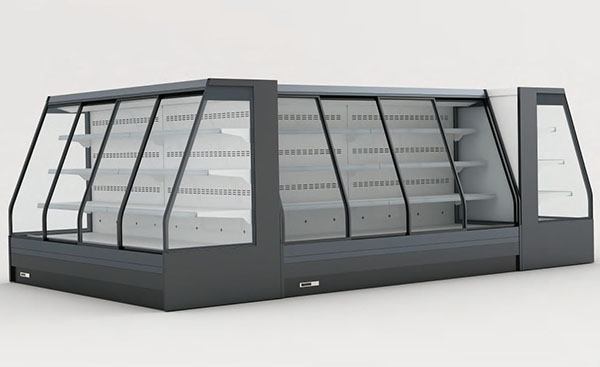

Stair-Design Open Air-Curtain Chiller (Remote); Supermarket Fridge Producer with 20+ Years of experience, Quality Guaranteed.

Supermarket Multideck Chillers (W/WO Glass Door)

MD1-FZ-4A1_Grab_and_Go_Supermarket_Fridge_Multideck_Chiller_Open_Cooler_Refrigerated_Display_Case; Supermarket Fridge Producer in China with 20+ Years of experience in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

Grab-and-Go Multideck Open Chillers (Remote/Plug-in)

MD1-FZ-4B1_Grab_and_Go_Supermarket_Refrigerator_Multideck_Cooler_Open_Chiller_Refrigerated_Display_Cabinet; Supermarket Refrigerator Producer in China with 20+ Years of experience in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

Grab-and-Go Supermarket Open Coolers (Remote/Plug-in)

In camparison with the vertical multideck supermarket fridge with the height of 2 meters, this series of Half-Height Multi-Deck Supermarket Chillers are Supermarket Open Chillers accessible directly through the open side with the lower height of 1.5 meters which is very suitable for the refrigerated display of fresh fruits, vegetables and produces. Idea for selling fruits, vegetables, packaged foodstuffs, dairies and beverages and other items without assisted serving. Supermarkets' customers can observe the freshness of the vegetables and fruits conveniently and then do the grab-and-go shopping with excellent shopping experience.

Both remote type supermarket chillers and plug-in type supermarket chillers are avaible for choices to supermarkets and convenience stores. Besides open chillers, glass door chillers are also available for better cooling preservation and to lock the moisture of the fruits and vegetables.

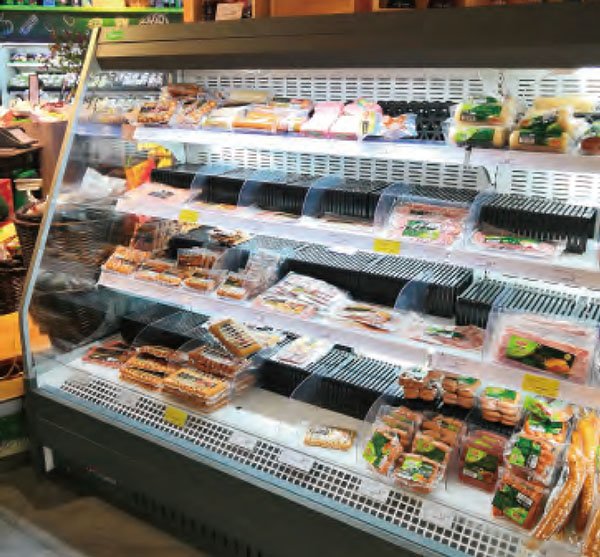

Grab And Go Air-Curtain Supermarket Multi-Deck Cooler (Remote)

➢ Supermarket Multi-Deck Fridge / Semi-Height Multi-Deck Cooler / Semi-Height Multideck Chiller / Semi-Height Multideck Refrigerator / Supermarket Fruits & Vegetables Display Cooler / Dairy Display Cooler / Beverage Display Chiller / Prepackaged Foodservice Refrigerator / Self-Service Multideck Cooler
➢ Used for: supermarkets, hypermarkets, fruits & vegetables shops, foods chain stores etc.
➢ Key Functions: Cooling display and chilling storage of fruits, vegetables, prepackaged meat & fish, produce, dairy, eggs, processed foods, deli foods, beverages & drinks etc.
➢ Chilling temperature: +3~+7℃ / -1~+5℃
➢ Tags: supermarket fridge, supermarket multideck fridge, multideck open cooler, multideck open chiller, supermarket display cooler, air curtain chiller, air curtain open cooler, vertical display cooler, convenient store fridge, supermarket dairy cooler, supermarket beverage cooler, fruits & vegetables cooler, hypermarket air curtain cooler, supermarket refrigerator, supermarket freezer, supermarket fridge
➢ Shipping Ports: Shenzhen China, Guangzhou China

Supermarket Semi-Height Multi-Deck Cooler
Grab And Go Open Cooler

FRESH & COOL

Upright Island Mutl-Deck Supermarket Fridge Product Features

Elegant and user-friendfly design supermarket fridges, simple and fashionable streamline fridge cabinet, beautiful and well-proportioned lines, larger fridge didplay area. Provide full display effect and create a comfortable supermarket shopping environment for consumers' enjoyable shopping experience and increase supermarket sales.
Free Combination: end cap unit + line unit(s) + end cap unit / end cap unit + end cap unit for connection to meet your personalized shop and store layouts
Easily-Disassemblable Modules can be joined together for a longer fridge unit to suit supermarket space.
Single supermarket fridge cabinet length from 6 feet to 12 feet, and extensible by connecting, suitable for any size of supermarkets, stores and shops
Multiple Colors according to customers' culture and preference
Remote Open Cooler with outdoor condenser unit
High-Efficiency Supermarket Fridge Evaporator with Long-Short Fin Design to improve the frosting condition. The Multi-Dimensional Air Blow Design makes extremely fast cooling, more even cooling, reducing energy consumption and save your money.

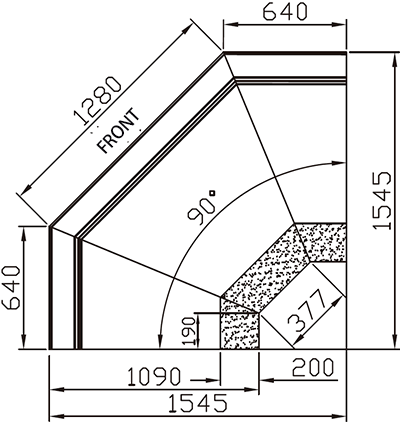

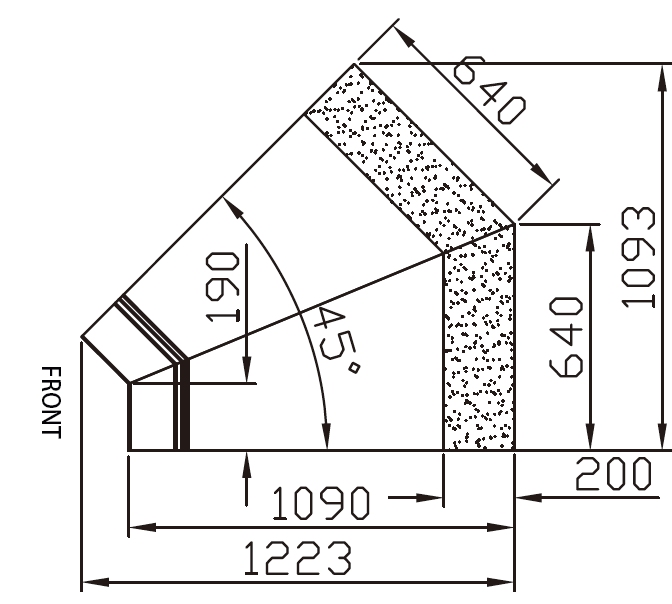

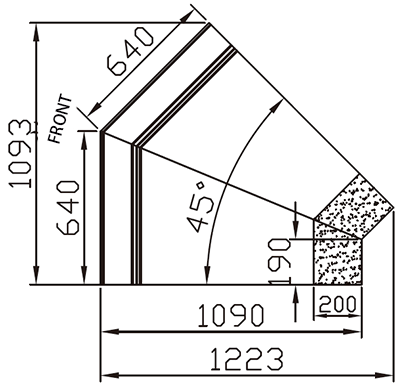

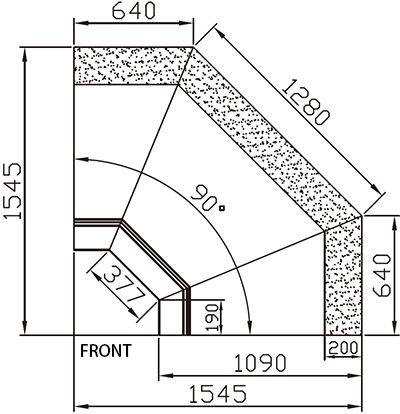

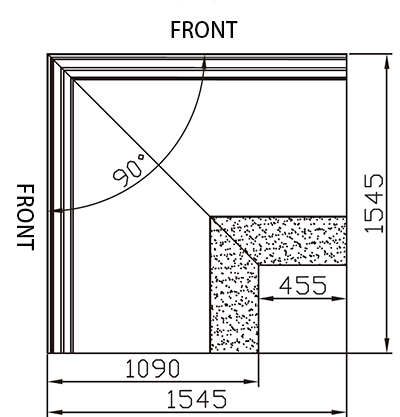

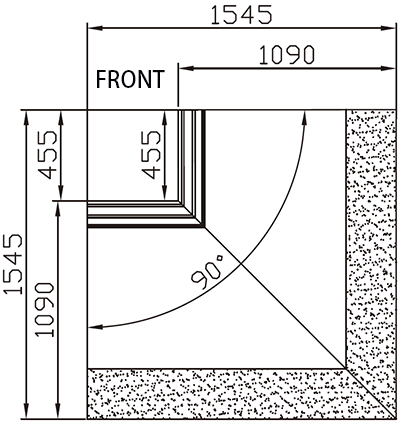

Corner Units available. L-Shape, V-Shape, and W-Shape Corner-Joining fridge units for connection to meet your personalized shop and store layouts
Free combination for any desired length
Adjustable Tilt Shelves. Vertical Shelf distance adjustable for flexible foods loading space. Horizontal shelf direction adjustable for free display angles.
Roller Deceleration Supermarket Fridge Night Curtain Cover is equipped for more energy saving at night running. The night curtain is equipped with deceleration devices to avoid the fast rolling-back speed strikes on the fridge cabinet to ensure the supermarket fridge durability.
High Thermal-Efficiency Polyurethane(PU)-Foam-Insulated Board Cabinet with insulation thickness of 40mm.
The LED integrated microcomputer thermostat is safe and easy to operate for Precise Digital Temperature Display, Monitoring & Temperature Setting.
Ebmpapst Energy-Saving Brushless DC Fan Motor. 50% motor energy-saving compared to standard motor, and more quiet.

Superior Quality World Brand Compressors For Powerful Cooling and Freezing Capability. Long Lasting Life & Quiet, Energy-Saving

Both Fridge Condenser & Evaporator With 100% Pure Copper Tube, Strong, No Corrosion, Long-Lasting Life

Ebmpapst Energy-Saving Brushless DC Fan Motor for Supermarket Refrigerators & Freezers

Ebmpapst Energy-Saving Brushless DC Fan Motor -- 50% energy-saving, and more quiet

LED microcomputer digital temperature display controller

Honeycomb Air Outlet Back Blowing Cooling System to Pefectly Return and Retain Cooling Air Inside Fridge Cabinet, Energy-Saving, Laminar Air Flow Cirulation to Cool Down Temperature Quickly and Evenly

Honeycomb Air Outlet Back Blowing Cooling System to Pefectly Return and Retain Cooling Air, Energy-Saving, Laminar Air Flow to Cool Quickly and Evenly

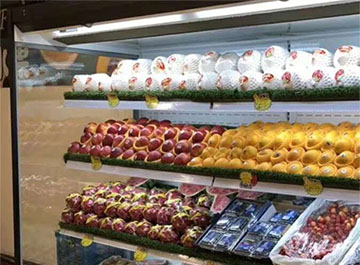

Adjustable Cooler Shelf With Both Adjustable Vertical Position & Adjustable Horizontal Placing Angle

Cooler Shelves Adjustable on Both Up-and-Down Position & Horizontal Placing Direction. Unlimited Storage Place & Any Display Angle

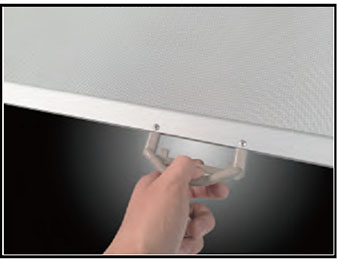

Deceleration Supermarket Fridge Night Curtain

Supermarket Refrigerator LED-Light With Multiple Warm Colors and Magnetic Clips

Long Lasting Life LED-Light With Multiple Colors & Magnetic Clips

Universal Casters, No Noise. Anti-Skid Wheels

Supermarket Refrigerator & Freezer Cabinet Optional Colors

Supermarket Fridge Cabinet Colors

Supermarket Fridge Parts & Componets

Description	Standard Parts	Optional Parts
Cabinet Material	SPCC + Powder Spraying	SUS304 Stainless Steel
Lighting	LED (6500K)	LED (Desired Colour Temp.)
Cabinet Colour	White	Multiple Options
Power Supply	380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph	110V,60Hz;220V,60Hz;380V,60Hz
Side Panels	Spray Paint Side Panels
Fan Motor	EBM Shaded Pole Motor	EBM Brushless DC Motor
Evaporator	Corrugated Fin
Compressors	Brand Compressors
Thermostat	Micro-Computer Digital Temperature Display Thermostat
Shelves	Spray Coating Edged Shelves
Refrigerant	R404a/R22
Night Covers	PE Roller Deceleration Night Curtain	Aluminum Fabric Roller Deceleration Night Curtain
Price Tag	Co-Extrusion Heat-Resistant Price Tag
Castors		Swivel Castors

Product Images

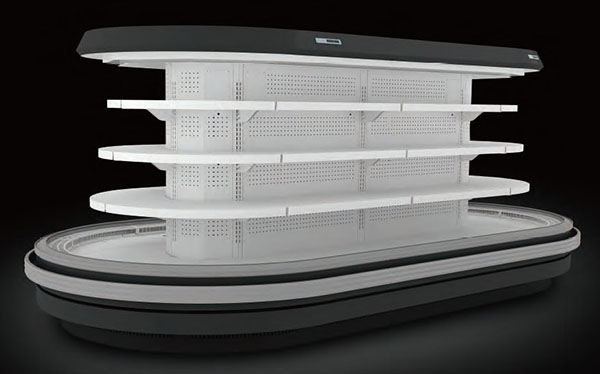

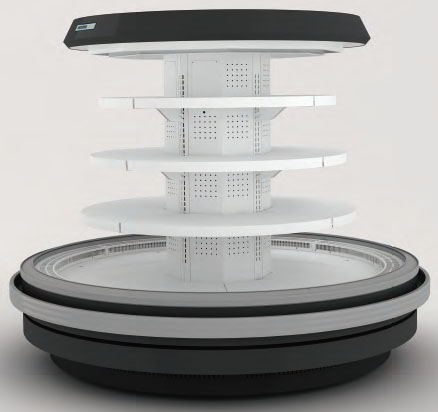

HB41HF_HB41EF Supermarket Multideck Cooler Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

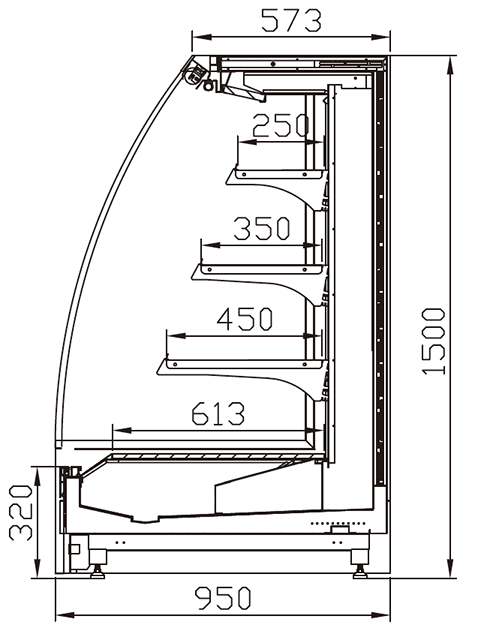

THB41B(H)F Supermarket Muli-Deck Open Cooler (Remote)

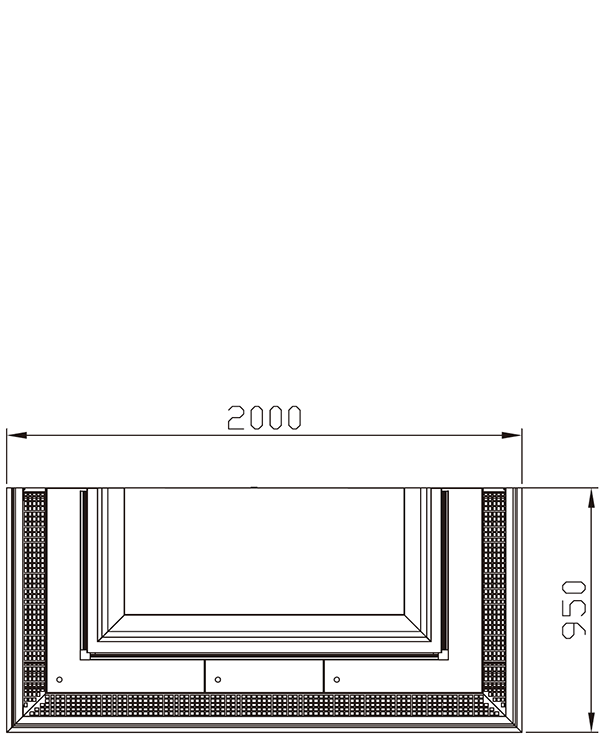

HB41B(H)F Supermarket Muli-Deck Cooler End Cap Unit (Remote)

Upright Island Mutl-Deck Supermarket Fridge Product Views

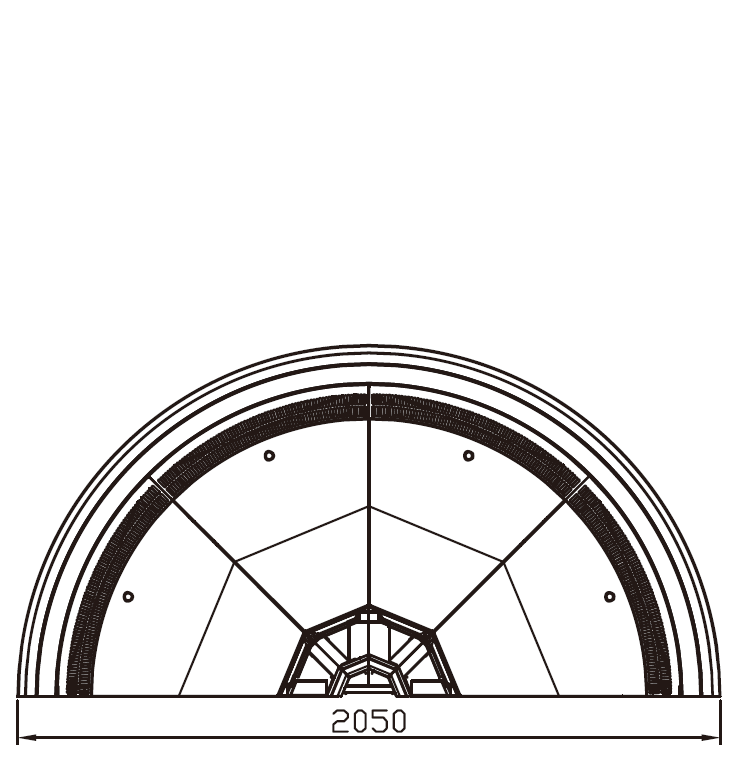

HB41B(H)F_Island_Air-Curtain_Open_Cooler_Vertical_View; Manufacturer with 20+ Years in producing Refrigeration Equipment, Quality Guaranteed.

HB41B(H)F Open Type Air-Curtain Supermarket Multi-Deck Refrigerator End Cap Unit

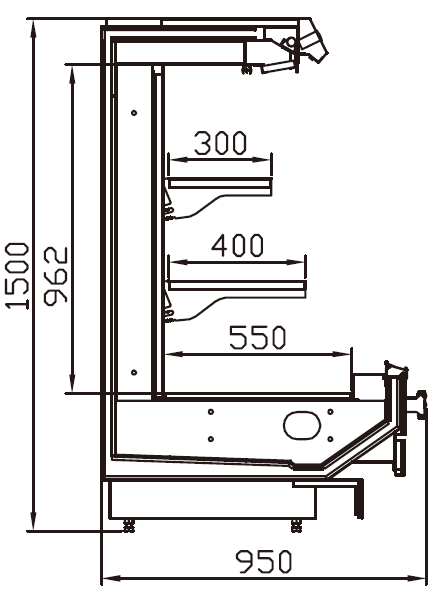

HB41BF_Island_Air-Curtain_Open_Cooler_Left_Side_View; Manufacturer with 20+ Years in producing Refrigeration Equipment, Quality Guaranteed.

THB41BF Island Shape Supermarket Air-Curtain Multi-Deck Open Cooler

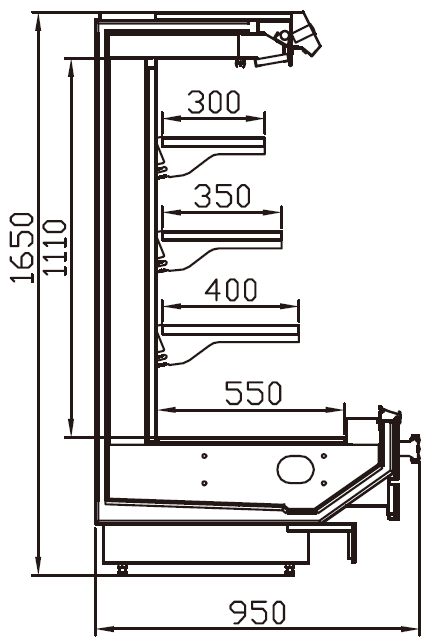

HB41HF_Island_Air-Curtain_Open_Cooler_Left_Side_View; Manufacturer with 20+ Years in producing Refrigeration Equipment, Quality Guaranteed.

THB41HF Island Shape Supermarket Air-Curtain Multi-Deck Open Cooler

Upright Supermarket Fridge | Multi-Deck Cooler Technical Specification

Ask for Price

Skype Ask for Price

Model	Description	Type	Storage Temp.	Product Length	Cabinet Size (mm)	Module (625 mm)	Side Panel	Display Area	Capacity	Refrig. Capacity	Energy Consum.	Defrost	Voltage
HB41B-06150F	6' Island Supermarket Multi-Deck Cooler	Remote	+3~+7℃ / -1~+5℃	1875 mm / 6 ft	1875L x 950D x 1500H	3	80 mm	2.4 m2 / 27 sq. ft.	0.731 m3 / 26 Cu. Ft.	2391 W	160 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
HB41B-08150F	8' Island Supermarket Multi-Deck Cooler	Remote	+3~+7℃ / -1~+5℃	2500 mm / 8 ft	2500L x 950D x 1500H	4	80 mm	3.3 m2 / 36 sq. ft.	0.975 m3 / 34 Cu. Ft.	3188 W	160 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
HB41B-10150F	10' Island Supermarket Multi-Deck Cooler	Remote	+3~+7℃ / -1~+5℃	3125 mm / 10 ft	3125L x 950D x 1500H	5	80 mm	4.1 m2 / 44 sq. ft.	1.219 m3 / 43 Cu. Ft.	3984 W	170 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
HB41B-12150F	12' Island Supermarket Multi-Deck Cooler	Remote	+3~+7℃ / -1~+5℃	3750 mm / 12 ft	3750L x 950D x 1500H	6	80 mm	4.9 m2 / 53 sq. ft.	1.463 m3 / 52 Cu. Ft.	4781 W	180 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
HB41B-07150F/2	7' Island-Shape Multi-Deck Cooler	Remote	+3~+7℃	2050 mm (Φ)÷2 (7 ft ÷ 2)	(2050Φ÷2) x 1500H	1 (2050 mm (Φ)÷2)	80 mm	2.1 m2 / 23 sq. ft.	0.719 m3 / 25 Cu. Ft.	2085 W	170 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph

Upright Supermarket Fridge | Multi-Deck Refrigerator (Corner) Technical Specification

Ask for Price

Skype Ask for Price

Model	Description	Type	Storage Temp.	Product Length	Cabinet Size (mm)	Module (625 mm)	Side Panel	Display Area	Capacity	Refrig. Capacity	Energy Consum.	Defrost	Voltage
HB41H-06165F	6' Island Supermarket Multi-Deck Refrigerator	Remote	+3~+7℃ / -1~+5℃	1875 mm / 6 ft	1875L x 950D x 1650H	3	80 mm	3.0 m2 / 32 sq. ft.	0.719 m3 / 25 Cu. Ft.	2423 W	170 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
HB41H-08165F	8' Island Supermarket Multi-Deck Refrigerator	Remote	+3~+7℃ / -1~+5℃	2500 mm / 8 ft	2500L x 950D x 1650H	4	80 mm	4.0 m2 / 43 sq. ft.	0.750 m3 / 26 Cu. Ft.	3230 W	170 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
HB41H-10165F	10' Island Supermarket Multi-Deck Refrigerator	Remote	+3~+7℃ / -1~+5℃	3125 mm / 10 ft	3125L x 950D x 1650H	5	80 mm	5.0 m2 / 54 sq. ft.	0.750 m3 / 26 Cu. Ft.	4038 W	170 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
HB41H-12165F	12' Island Supermarket Multi-Deck Refrigerator	Remote	+3~+7℃ / -1~+5℃	3750 mm / 12 ft	3750L x 950D x 1650H	6	80 mm	6.0 m2 / 65 sq. ft.	1.463 m3 / 52 Cu. Ft.	4845 W	180 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
HB41H-07165F/2	7' Island-Shape Multi-Deck Refrigerator	Remote	+3~+7℃	2050 mm (Φ)÷2 (7 ft ÷ 2)	(2050Φ÷2) x 1650H	1 (2050 mm (Φ)÷2)	80 mm	2.5 m2 / 27 sq. ft.	0.719 m3 / 25 Cu. Ft.	2204 W	170 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage for the supermarket refrigeration units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.
220V ±10%, 50Hz, 1Ph: China, Vietname, Cambodia, Thailand, Malaysia, Indonesia, Australia, New Zealand, Bangladesh, India, Sri Lanka, Pakistan, Afghanistan, Uzbekistan, Turkmenistan, Kazakhstan, Georgia, Azerbaijan, Iran, Iraq, UAE, Yemen, Turkey, Egypt, Ethiopia, Kenya, Tanzania, Mozambique, Madagascar, South Africa, Angola, Congo, Cameron, Nigeria, Ghana, Cote d'Ivoire, Morocco, Algeria, Libya, Tunisia, Italy, Greece, Spain, Portugal, Britain, France, Germany, Sweden, Norway, Finland, Poland, Hungary, Ukraine, Serbia, Croatia, Romania, Bulgaria, Russia, Chile, Argentina, Paraguay etc.
220V ±10%, 60Hz, 1Ph: Korea, Saudi Arabia, Philippines, Peru etc.
110V ±10%, 60Hz, 1Ph: Japan, United States, Canada, Mexico, Ecuador, Brazil, Colombia, Venezuela etc.

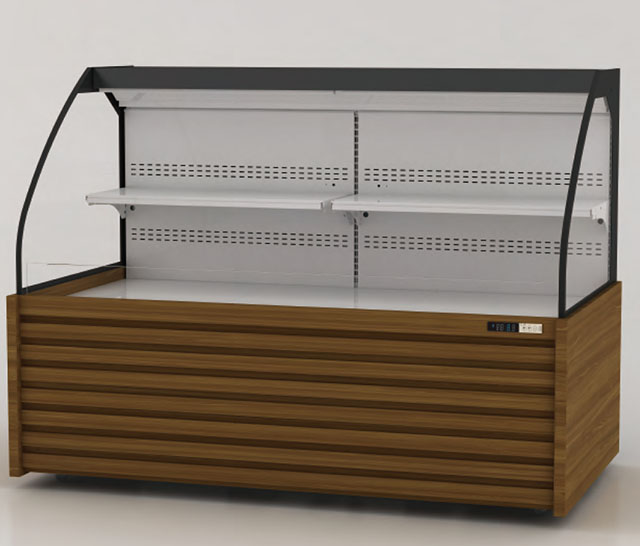

Supermarket Vegetables & Fruits Semi-Height Open Chiller (Plug-in)

➢ Supermarket Multi-Deck Fridge / Multi-Deck Cooler / Multideck Chiller / Multideck Refrigerator / Supermarket Fruits & Vegetables Display Cooler / Dairy Display Cooler / Beverage Display Chiller / Foodservice Case / Refrigerated Self-Service Case
➢ Used for: supermarkets, hypermarkets, fruits & vegetables shops, foods chain stores etc.
➢ Key Functions: Cooling display and chilling storage of fruits, vegetables, prepackaged meat & fish, produce, dairy, eggs, processed foods, deli foods, beverages & drinks etc.
➢ Chilling temperature: +2 ℃~+8 ℃
➢ Tags: supermarket fridge, supermarket multideck fridge, multideck open cooler, multideck open chiller, supermarket vegetable chiller, vegetable cooler, vegetable refrigerated display case, supermarket produce fridge, convenience store vegetable & fruits display case, supermarket display cooler, air curtain chiller, air curtain open cooler, vertical display cooler, convenient store fridge, supermarket dairy cooler, supermarket beverage cooler, fruits & vegetables cooler, hypermarket air curtain cooler, supermarket refrigerator, supermarket freezer, supermarket fridge
➢ Shipping Ports: Shenzhen China, Guangzhou China

Semi-Height Vegetable Open Cooler

FRESH & COOL

Open Type Vegetables & Fruits Supermarket Chiller Product Features

Elegant and user-friendfly design supermarket fridges, simple and fashionable streamline fridge cabinet, beautiful and well-proportioned lines, larger fridge didplay area. Provide full display effect and create a comfortable supermarket shopping environment for consumers' enjoyable shopping experience and increase supermarket sales.
4 PC of Shelves with Solid Wood Fruit and Vegetable Baskets, special design for fruits display and vegetables display
Easily-Disassemblable Modules can be joined together for a longer fridge unit to suit supermarket space.
Single supermarket fridge cabinet length from 6 feet to 12 feet, and extensible by connecting, suitable for any size of supermarkets, stores and shops
Multiple Colors according to customers' culture and preference
Plug-in Cooler for convenient movement
High-Efficiency Supermarket Fridge Evaporator with Long-Short Fin Design to improve the frosting condition. The Multi-Dimensional Air Blow Design makes extremely fast cooling, even cooling and low energy consumption.
Free combination for any desired length
High Thermal-Efficiency Polyurethane(PU)-Foam-Insulated Board Cabinet
The LED integrated microcomputer thermostat is safe and easy to operate for Precise Digital Temperature Display, Monitoring & Temperature Setting.
Ebmpapst Energy-Saving Brushless DC Fan Motor. 50% motor energy-saving compared to standard motor, and more quiet.

Supermarket Fridge Parts & Componets

Description	Standard Parts	Optional Parts
Cabinet Material	SPCC + Powder Spraying	SUS304 Stainless Steel
Lighting	External LED Lighting	LED (Desired Colour Temp.)
Cabinet Colour	White	Multiple Options
Power Supply	380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph	110V,60Hz;220V,60Hz;380V,60Hz
Fan Motor	EBM Shaded Pole Motor	EBM Brushless DC Motor
Evaporator	Corrugated Fin
Compressors	Brand Compressors
Thermostat	Micro-Computer Digital Temperature Display Thermostat
Refrigerant	R404a/R134a
Side Panels	Spray Paint Edging Side Panels
Shelves	4 PC with Solid Wood Fruit and Vegetable Container & Shelf Trolley
Sliding Door	Vaccumed Low-Emittance Glass
Humidification		Mist Spraying Humidify

Product Images

HB41HF_HB41EF Supermarket Multideck Chiller Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

TC41B-Z Supermarket Mulideck Chiller (Plug-in)

Supermarket Vegetable & Fruits Chiller

Open Type Vegetables & Fruits Supermarket Chiller Product Views

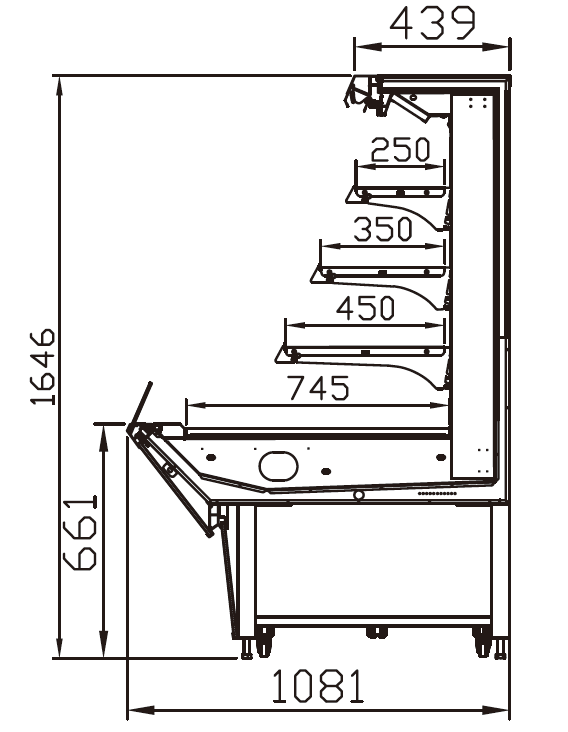

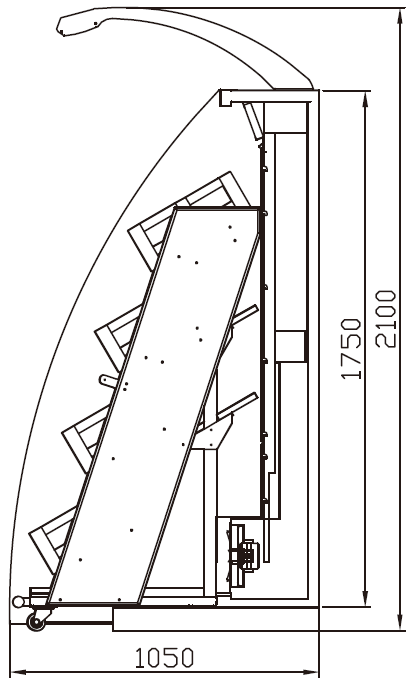

TC41BF_Supermarket_Vegetables_Fruits_Open_Chiller_Right_Side_View_1; Manufacturer with 20+ Years in producing Refrigeration Equipment, Quality Guaranteed.

TC41BZ Supermarket Fruits & Vegetables Chiller Right Side View

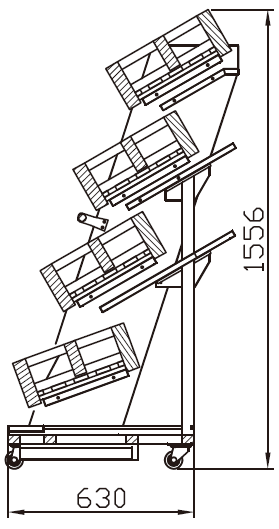

TC41BF_Supermarket_Vegetables_Fruits_Open_Chiller_Right_Side_View_2; Manufacturer with 20+ Years in producing Refrigeration Equipment, Quality Guaranteed.

TC41BZ Supermarket Fruits & Vegetables Chiller Right Side View

Fruits & Vegetables Supermarket Fridge | Semi-Height Open Chiller Technical Specification

Ask for Price

Skype Ask for Price

Model	Description	Type	Storage Temp.	Product Length	Cabinet Size (mm)	Module (625 mm)	Side Panel	Display Area	Capacity	Refrig. Capacity	Energy Consum.	Defrost	Voltage
TC41B-04210Z	4' Vegetables & Fruits Multi-Deck Open Chiller	Plug-in	+2 ~ +8℃	1250 mm / 4 ft	1250L x 1050D x 2050H	1	80 mm	1.8 m2 / 19 sq. ft.	0.250 m3 / 9 Cu. Ft.	3000 W	130 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
TC41B-08210Z	8' Vegetables & Fruits Multi-Deck Open Chiller	Plug-in	+2 ~ +8℃	2500 mm / 8 ft	2500L x 1050D x 2050H	2	80 mm	3.6 m2 / 39 sq. ft.	0.500 m3 / 18 Cu. Ft.	6000 W	250 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
TC41B-12210Z	12' Vegetables & Fruits Multi-Deck Open Chiller	Plug-in	+2 ~ +8℃	3750 mm / 12 ft	3750L x 1050D x 2050H	3	80 mm	5.4 m2 / 58 sq. ft.	0.750 m3 / 26 Cu. Ft.	9000 W	370 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph

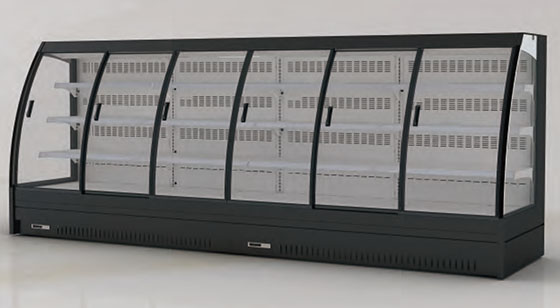

Supermarket Multi-Deck Chillers (W/WO Glass Door)

➢ Supermarket Multi-Deck Fridge / Multi-Deck Cooler / Multideck Chiller / Multideck Refrigerator / Supermarket Fruits & Vegetables Display Cooler / Dairy Display Cooler / Beverage Display Chiller / Foodservice Case / Refrigerated Self-Service Case
➢ Used for: supermarkets, hypermarkets, fruits & vegetables shops, foods chain stores etc.
➢ Key Functions: Cooling display and chilling storage of fruits, vegetables, prepackaged meat & fish, produce, dairy, eggs, processed foods, deli foods, beverages & drinks etc.
➢ Chilling temperature: -2 ℃~+2 ℃
➢ Tags: supermarket fridge, supermarket cooler, supermarket chiller, supermarket refrigerator, supermarket multideck fridge, multideck open cooler, multideck open chiller, multideck glass door cooler, multideck glass door chiller, supermarket display cooler, air curtain chiller, air curtain open cooler, vertical display cooler, convenient store fridge, supermarket dairy cooler, supermarket beverage cooler, fruits & vegetables cooler, hypermarket air curtain cooler, supermarket refrigerator, supermarket freezer, supermarket fridge
➢ Shipping Ports: Shenzhen China, Guangzhou China

Multi-Deck Chiller
Air Curtain Open Cooler
Grab and Go Supermarket Refrigerator

FRESH & COOL

Semi-Height Air Curtain Multi-Deck Supermarket Chiller Product Features

Elegant and user-friendfly design supermarket fridges, simple and fashionable streamline fridge cabinet, beautiful and well-proportioned lines, larger fridge didplay area. Provide full display effect and create a comfortable supermarket shopping environment for consumers' enjoyable shopping experience and increase supermarket sales.
Free Combination: End cap unit for connection to meet your personalized shop and store layouts
Easily-Disassemblable Modules can be joined together for a longer fridge unit to suit supermarket space.
Single supermarket fridge cabinet length from 6 feet to 12 feet, and extensible by connecting, suitable for any size of supermarkets, stores and shops
Multiple Colors according to customers' culture and preference
Super White Temper Glass. Strong and Deluxe.
Split type Remote Open Cooler with outdoor condenser and monoblock type Plug-in Self-Contained Open Cooler with built-in compressor for choice according to display area, installation space, and power supply(single phase and 3-phase)
High-Efficiency Supermarket Fridge Evaporator with Pre-Cooling Piping Layout Design to improve the frosting condition. The Multi-Dimensional Air Blow Design makes extremely fast cooling, even cooling and low energy consumption.
Free combination for any desired length
Roller Deceleration Supermarket Fridge Night Curtain Cover is equipped for more energy saving at night running. The night curtain is equipped with deceleration devices to avoid the fast rolling-back speed strikes on the fridge cabinet to ensure the supermarket fridge durability.
High Thermal-Efficiency Polyurethane(PU)-Foam-Insulated Board Cabinet
The LED integrated microcomputer thermostat is safe and easy to operate for Precise Digital Temperature Display, Monitoring & Temperature Setting.
Ebmpapst Energy-Saving Brushless DC Fan Motor. 50% motor energy-saving compared to standard motor, and more quiet.
Sliding Glass Doors can be added to the open cooler as per supermarkets' storage and display requirements

Supermarket Fridge Parts & Componets

Description	Standard Parts	Optional Parts
Cabinet Material	SPCC + Powder Spraying	SUS304 Stainless Steel
Lighting	LED (6500K)	LED (Desired Colour Temp.)
Cabinet Colour	White	Multiple Options
Power Supply	380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph	110V,60Hz;220V,60Hz;380V,60Hz
Side Panels	Double Layer Vaccumed Glass Side Panels	Vaccumed Glass with Mirror / Foamed / Foamed with Mirror
Fan Motor	EBM Shaded Pole Motor	EBM Brushless DC Motor
Evaporator	Corrugated Fin
Compressors	Brand Compressors
Thermostat	Micro-Computer Digital Temperature Display Thermostat
Shelves	Spray Coating Edged Shelves
Refrigerant	R404a/R22
Night Covers	PE Roller Deceleration Night Curtain	Aluminum Fabric Roller Deceleration Night Curtain
Price Tag	Co-Extrusion Heat-Resistant Price Tag
Castors		Swivel Castors
Humidification		Mist Spraying Humidify
Glass Doors		Optional Glass Doors to be Added

Product Images

MD1-FZ-4D1 Supermarket Multideck Chiller Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

MD1-FZ-4D1 Supermarket Muli-Deck Chiller (With End Cap Unit)

MD1-FZ-4D1 Supermarket Muli-Deck Chiller (Without End Cap Unit)

MD1-FZ-4D1 Supermarket Muli-Deck Chiller (With Sliding Glass Door)

MD1-FZ-4D1 Supermarket Muli-Deck Chiller (Remote/Plug-in)

Semi-Height Air Curtain Multi-Deck Supermarket Refrigerator Product Views

MD6-F-4D1_Supermarket_Display_Chiller_Air_Curtain_Fridge_Multideck_Cooler_Showcase_Remote_Refrigerator_Right_Side_View; Supermarket Chiller Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

MD6-F-4D1 Supermarket Multi-Deck Chiller (Remote)

MD1-F-4D1_Supermarket_Multi-Deck_Chiller_Air_Curtain_Open_Cooler_Display_Fridge_Cabinet_Remote_Refrigerator_Right_Side_View; Supermarket Chiller Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

MD1-F-4D1 Supermarket Multi-Deck Chiller (Remote)

MD1-UER-4D1_Supermarket_Chiller_Air_Curtain_Cooler_Multideck_Fridge_End_Cap_Unit_Right_Side_View; Supermarket Chiller Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

MD1-UER-4D1 Supermarket Multi-Deck Chiller (End Cap Unit)

MD1-Z-4D1_Supermarket_Chiller_Air_Curtain_Refrigerator_Multideck_Cooler_Display_Case_Plug-in_Fridge_Right_Side_View; Supermarket Chiller Manufacturer with 20+ Years in producing Supermarket Refrigeration Equipment, Quality Guaranteed.

MD1-Z-4D1 Supermarket Multi-Deck Chiller (Plug-in)

Semi-Height Air Curtain Supermarket Fridge | Multi-Deck Chiller (Remote Chiller) Technical Specification

Ask for Price

Skype Ask for Price

Model	Description	Type	Storage Temp.	Product Length	Cabinet Size (mm)	Module (625 mm)	Side Panel	Display Area	Capacity	Input Power	Defrost	Voltage
MD6-06150F-4D1	6' Supermarket Multi-Deck Chiller	Remote Chiller	-2 ~ +2℃	1875 mm / 6 ft	1875L x 950D x 1500H	3	70 mm	3.2 m2 / 34 sq. ft.	0.765 m3 / 27 Cu. Ft.	170 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
MD6-08150F-4D1	8' Supermarket Multi-Deck Chiller	Remote Chiller	-2 ~ +2℃	2500 mm / 8 ft	2500L x 950D x 1500H	4	70 mm	4.3 m2 / 46 sq. ft.	1.020 m3 / 36 Cu. Ft.	180 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
MD6-10150F-4D1	10' Supermarket Multi-Deck Chiller	Remote Chiller	-2 ~ +2℃	3125 mm / 10 ft	3125L x 950D x 1500H	5	70 mm	5.3 m2 / 57 sq. ft.	1.275 m3 / 45 Cu. Ft.	220 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
MD6-12150F-4D1	12' Supermarket Multi-Deck Chiller	Remote Chiller	-2 ~ +2℃	3750 mm / 12 ft	3750L x 950D x 1500H	6	70 mm	6.4 m2 / 69 sq. ft.	1.530 m3 / 54 Cu. Ft.	250 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph
MD1-UER-4D1	Multi-Deck Chiller End Cap Unit	Remote Chiller	-2 ~ +2℃	1930 mm / 6 ft	1930L x 950D x 1500H	End Cap	70 mm	2.2 m2 / 24 sq. ft.	0.796 m3 / 28 Cu. Ft.	250 W (Indoor)	Automatic	220V ±10%, 50Hz, 1Ph

Semi-Height Air Curtain Supermarket Fridge | Multi-Deck Cooler (Plug-in Cooler) Technical Specification

Ask for Price

Skype Ask for Price

Model	Description	Type	Storage Temp.	Product Length	Cabinet Size (mm)	Module (625 mm)	Side Panel	Display Area	Capacity	Input Power	Defrost	Voltage
MD6-06150Z-4D1	6' Supermarket Multi-Deck Cooler	Plug-in Cooler	-2 ~ +2℃	1875 mm / 6 ft	1875L x 950D x 1500H	3	70 mm	1.5 m2 / 16 sq. ft.	0.516 m3 / 18 Cu. Ft.	1720 W	Automatic	220V ±10%, 50Hz, 1Ph
MD1-08150Z-4D1	8' Supermarket Multi-Deck Cooler	Plug-in Cooler	-2 ~ +2℃	2500 mm / 8 ft	2500L x 950D x 1500H	4	70 mm	2.0 m2 / 22 sq. ft.	0.688 m3 / 24 Cu. Ft.	1960 W	Automatic	220V ±10%, 50Hz, 1Ph
MD1-10150Z-4D1	10' Supermarket Multi-Deck Cooler	Plug-in Cooler	-2 ~ +2℃	3125 mm / 10 ft	3125L x 950D x 1500H	5	70 mm	2.5 m2 / 27 sq. ft.	0.859 m3 / 30 Cu. Ft.	2590 W	Automatic	220V ±10%, 50Hz, 1Ph

Semi-Height Grab And Go Multi-Deck Supermarket Open Chillers (Remote/Plug-in)

➢ Supermarket Multi-Deck Fridge / Multi-Deck Cooler / Multideck Chiller / Multideck Refrigerator / Supermarket Fruits & Vegetables Display Cooler / Dairy Display Cooler / Beverage Display Chiller / Foodservice Case / Refrigerated Self-Service Case
➢ Used for: supermarkets, hypermarkets, fruits & vegetables shops, foods chain stores etc.
➢ Key Functions: Cooling display and chilling storage of fruits, vegetables, prepackaged meat & fish, produce, dairy, eggs, processed foods, deli foods, beverages & drinks etc.
➢ Chilling temperature: -2 ~ +2℃
➢ Tags: supermarket fridge, supermarket cooler, supermarket chiller, supermarket refrigerator, supermarket multideck fridge, multideck open cooler, multideck open chiller, supermarket display cooler, air curtain chiller, air curtain open cooler, vertical display cooler, convenient store fridge, supermarket dairy cooler, supermarket beverage cooler, fruits & vegetables cooler, hypermarket air curtain cooler, supermarket refrigerator, supermarket freezer, supermarket fridge
➢ Shipping Ports: Shenzhen China, Guangzhou China

Grab-and-Go Supermarket Multideck Open Chiller

FRESH & COOL

Semi-Height Air Curtain Multi-Deck Supermarket Chiller Product Features

Elegant and user-friendfly design supermarket fridges, simple and fashionable streamline fridge cabinet, beautiful and well-proportioned lines, larger fridge didplay area. Provide full display effect and create a comfortable supermarket shopping environment for consumers' enjoyable shopping experience and increase supermarket sales.
Easily-Disassemblable Modules can be joined together for a longer fridge unit to suit supermarket space.
Single supermarket fridge cabinet length from 6 feet to 12 feet, and extensible by connecting, suitable for any size of supermarkets, stores and shops
Free Combination: V-Shape, L-Shape and W-Shape Corner-Joining fridge units for connection to meet your personalized shop and store layouts
Multiple Colors according to customers' culture and preference
SUS304 Interior & Countertop. Strong, sanitary and durable.
Split type Remote Open Cooler with outdoor condenser and monoblock type Plug-in Self-Contained Open Cooler with built-in compressor for choice according to display area, installation space, and power supply(single phase and 3-phase)
High-Efficiency Supermarket Fridge Evaporator with Pre-Cooling Piping Layout Design to improve the frosting condition. The Multi-Dimensional Air Blow Design makes extremely fast cooling, even cooling and low energy consumption.
Roller Deceleration Supermarket Fridge Night Curtain Cover is equipped for more energy saving at night running. The night curtain is equipped with deceleration devices to avoid the fast rolling-back speed strikes on the fridge cabinet to ensure the supermarket fridge durability.
High Thermal-Efficiency Polyurethane(PU)-Foam-Insulated Board Cabinet
The LED integrated microcomputer thermostat is safe and easy to operate for Precise Digital Temperature Display, Monitoring & Temperature Setting.
Ebmpapst Energy-Saving Brushless DC Fan Motor. 50% motor energy-saving compared to standard motor, and more quiet.

Supermarket Fridge Parts & Componets

Description	Standard Parts	Optional Parts
Cabinet Material	SPCC + Powder Spraying + Interior & Countertop SUS304	SUS304 Stainless Steel
Lighting	LED (6500K)	LED (Desired Colour Temp.)
Cabinet Colour	White	Multiple Options
Power Supply	380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph	110V,60Hz;220V,60Hz;380V,60Hz
Side Panels	Single/Double Color Multi-Layer Blister Foam Side Panel	Ultra-White Tempered Glass
Fan Motor	EBM Shaded Pole Motor	EBM Brushless DC Motor
Evaporator	Corrugated Fin
Compressors	Brand Compressors
Thermostat	Micro-Computer Digital Temperature Display Thermostat
Shelves	Spray Coating Edged Shelves
Refrigerant	R404a/R22
Night Covers	PE Roller Deceleration Night Curtain	Aluminum Fabric Roller Deceleration Night Curtain
Castors		Swivel Castors

Semi-Height Multi-Deck Supermarket Open Chiller Product Views

MD1-FZ-4A1_Grab_and_Go_Supermarket_Fridge_Multideck_Chiller_Open_Cooler_Refrigerated_Display_Case_Right_Side_View; Supermarket Refrigeration Equipment Manufacturer with 20+ Years in producing Supermarket Refrigerators & Freezers, Quality Guaranteed.

MD1-FZ-4A1 Multideck Supermarket Open Chiller

/MD1-FZ-4A1_Grab_and_Go_Supermarket_Fridge_Multideck_Chiller_Open_Cooler_Refrigerated_Display_Case_V_Shape_Inward_Corner_Unit; Supermarket Refrigeration Equipment Manufacturer with 20+ Years in producing Supermarket Refrigerators & Freezers, Quality Guaranteed.

MD1-FZ-4A1 Multideck Supermarket Open Chiller V-Shape 45° Inward Corner

MD1-FZ-4A1_Grab_and_Go_Supermarket_Fridge_Multideck_Chiller_Open_Cooler_Refrigerated_Display_Case_V-Shape_Outward_Corner_Unit; Supermarket Refrigeration Equipment Manufacturer with 20+ Years in producing Supermarket Refrigerators & Freezers, Quality Guaranteed.

MD1-FZ-4A1 Multideck Supermarket Open Chiller V-Shape 45° Outward Corner

MD1-FZ-4A1_Grab_and_Go_Supermarket_Fridge_Multideck_Chiller_Open_Cooler_Refrigerated_Display_Case_W-Shape_Inward_Corner_Unit; Supermarket Refrigeration Equipment Manufacturer with 20+ Years in producing Supermarket Refrigerators & Freezers, Quality Guaranteed.

MD1-FZ-4A1 Multideck Supermarket Open Chiller W-Shape 90° Inward Corner

MD1-FZ-4A1_Grab_and_Go_Supermarket_Fridge_Multideck_Chiller_Open_Cooler_Refrigerated_Display_Case_W-Shape_Outward_Corner_Unit; Supermarket Refrigeration Equipment Manufacturer with 20+ Years in producing Supermarket Refrigerators & Freezers, Quality Guaranteed.

MD1-FZ-4A1 Multideck Supermarket Open Chiller W-Shape 90° Outward Corner

MD1-FZ-4A1_Grab_and_Go_Supermarket_Fridge_Multideck_Chiller_Open_Cooler_Refrigerated_Display_Case_L-Shape_Inward_Corner_Unit; Supermarket Refrigeration Equipment Manufacturer with 20+ Years in producing Supermarket Refrigerators & Freezers, Quality Guaranteed.

MD1-FZ-4A1 Multideck Supermarket Open Chiller L-Shape 90° Inward Corner

MD1-FZ-4A1_Grab_and_Go_Supermarket_Fridge_Multideck_Chiller_Open_Cooler_Refrigerated_Display_Case_L-Shape_Outward_Corner_Unit; Supermarket Refrigeration Equipment Manufacturer with 20+ Years in producing Supermarket Refrigerators & Freezers, Quality Guaranteed.

MD1-FZ-4A1 Multideck Supermarket Open Chiller L-Shape 90° Outward Corner

Air Curtain Supermarket Fridge | Semi-Height Multi-Deck Open Chiller (Remote Chiller) Technical Specification

Ask for Price

Skype Ask for Price

Model	Description	Type	Storage Temp.	Product Length	Cabinet Size (mm)	Module (625 mm)	Side Panel	Display Area	Capacity	Input Power	Defrost	Voltage
MD1-06150F-4A1	6' Supermarket Multi-Deck Open Chiller	Remote Chiller	-2 ~ +2℃	1875 mm / 6 ft	1875L x 1100D x 1650H	3	80 mm	2.2 m2 / 24 sq. ft.	0.506 m3 / 18 Cu. Ft.	140 W (Indoor)	500 W	220V ±10%, 50Hz, 1Ph
MD1-08150F-4A1	8' Supermarket Multi-Deck Open Chiller	Remote Chiller	-2 ~ +2℃	2500 mm / 8 ft	2500L x 1100D x 1650H	4	80 mm	2.9 m2 / 31 sq. ft.	0.675 m3 / 24 Cu. Ft.	150 W (Indoor)	700 W	220V ±10%, 50Hz, 1Ph
MD1-10150F-4A1	10' Supermarket Multi-Deck Open Chiller	Remote Chiller	-2 ~ +2℃	3125 mm / 10 ft	3125L x 1100D x 1650H	5	80 mm	3.6 m2 / 39 sq. ft.	0.844 m3 / 30 Cu. Ft.	150 W (Indoor)	900 W	220V ±10%, 50Hz, 1Ph
MD1-12150F-4A1	12' Supermarket Multi-Deck Open Chiller	Remote Chiller	-2 ~ +2℃	3750 mm / 12 ft	3750L x 1100D x 1650H	6	80 mm	4.3 m2 / 46 sq. ft.	1.013 m3 / 36 Cu. Ft.	225 W (Indoor)	1200 W	220V ±10%, 50Hz, 1Ph
MD1-F-4A1-NV	Multideck Chiller V-Shape Inward Corner Unit	Remote Chiller	-2 ~ +2℃	640+640 mm	(640+640)L x 1100D x 1650H	V-Shape 45° Inward Corner	80 mm	0.6 m2 / 6 sq. ft.	0.320 m3 / 11 Cu. Ft.	70 W (Indoor)	250 W	220V ±10%, 50Hz, 1Ph
MD1-F-4A1-WV	Multideck Chiller V-Shape Outward Corner Unit	Remote Chiller	-2 ~ +2℃	640+640 mm	(640+640)L x 1100D x 1650H	V-Shape 45° Inward Corner	80 mm	0.2 m2 / 13 sq. ft.	0.320 m3 / 11 Cu. Ft.	70 W (Indoor)	250 W	220V ±10%, 50Hz, 1Ph
MD1-F-4A1-NW	Multideck Chiller W-Shape Inward Corner Unit	Remote Chiller	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1100D x 1650H	W-Shape 90° Inward Corner	80 mm	1.6 m2 / 17 sq. ft.	0.480 m3 / 17 Cu. Ft.	70 W (Indoor)	350 W	220V ±10%, 50Hz, 1Ph
MD1-F-4A1-WW	Multideck Chiller W-Shape Outward Corner Unit	Remote Chiller	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1100D x 1650H	W-Shape 90° Outward Corner	80 mm	1.7 m2 / 18 sq. ft.	0.480 m3 / 17 Cu. Ft.	70 W (Indoor)	350 W	220V ±10%, 50Hz, 1Ph
MD1-F-4A1-NL	Multideck Chiller L-Shape Inward Corner Unit	Remote Chiller	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1100D x 1650H	L-Shape 90° Inward Corner	80 mm	2 m2 / 22 sq. ft.	0.520 m3 / 18 Cu. Ft.	70 W (Indoor)	350 W	220V ±10%, 50Hz, 1Ph
MD1-F-4A1-WL	Multideck Chiller L-Shape Outward Corner Unit	Remote Chiller	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1100D x 1650H	L-Shape 90° Inward Corner	80 mm	1.7 m2 / 18 sq. ft.	0.520 m3 / 18 Cu. Ft.	70 W (Indoor)	350 W	220V ±10%, 50Hz, 1Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity( --- ).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage for the supermarket refrigeration units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.

Air Curtain Supermarket Fridge | Semi-Height Multi-Deck Open Chiller (Self-Contained Plug-in Chiller) Technical Specification

Ask for Price

Skype Ask for Price

Model	Description	Type	Storage Temp.	Product Length	Cabinet Size (mm)	Module (625 mm)	Side Panel	Display Area	Capacity	Input Power	Defrost	Voltage
MD1-06150Z-4A1	6' Supermarket Multi-Deck Open Chiller	Plug-in Chiller	-2 ~ +2℃	1875 mm / 6 ft	1875L x 1100D x 1650H	3	80 mm	2.2 m2 / 24 sq. ft.	0.506 m3 / 18 Cu. Ft.	890 W	500 W	220V ±10%, 50Hz, 1Ph
MD1-08150Z-4A1	8' Supermarket Multi-Deck Open Chiller	Plug-in Chiller	-2 ~ +2℃	2500 mm / 8 ft	2500L x 1100D x 1650H	4	80 mm	2.9 m2 / 31 sq. ft.	0.675 m3 / 24 Cu. Ft.	1380 W	700 W	220V ±10%, 50Hz, 1Ph
MD1-10150Z-4A1	10' Supermarket Multi-Deck Open Chiller	Plug-in Chiller	-2 ~ +2℃	3125 mm / 10 ft	3125L x 1100D x 1650H	5	80 mm	3.6 m2 / 39 sq. ft.	0.844 m3 / 30 Cu. Ft.	1850 W	900 W	220V ±10%, 50Hz, 1Ph
MD1-12150Z-4A1	12' Supermarket Multi-Deck Open Chiller	Plug-in Chiller	-2 ~ +2℃	3750 mm / 12 ft	3750L x 1100D x 1650H	6	80 mm	4.3 m2 / 46 sq. ft.	1.013 m3 / 36 Cu. Ft.	1925 W	1200 W	220V ±10%, 50Hz, 1Ph
MD1-Z-4A1-NW	Multideck Chiller W-Shape Inward Corner Unit	Plug-in Chiller	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1100D x 1650H	W-Shape 90° Inward Corner	80 mm	1.6 m2 / 17 sq. ft.	0.480 m3 / 17 Cu. Ft.	820 W (Indoor)	350 W	220V ±10%, 50Hz, 1Ph
MD1-Z-4A1-WW	Multideck Chiller W-Shape Outward Corner Unit	Plug-in Chiller	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1100D x 1650H	W-Shape 90° Outward Corner	80 mm	1.7 m2 / 18 sq. ft.	0.480 m3 / 17 Cu. Ft.	820 W (Indoor)	350 W	220V ±10%, 50Hz, 1Ph
MD1-Z-4A1-NL	Multideck Chiller L-Shape Inward Corner Unit	Plug-in Chiller	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1100D x 1650H	L-Shape 90° Inward Corner	80 mm	2 m2 / 22 sq. ft.	0.520 m3 / 18 Cu. Ft.	820 W (Indoor)	350 W	220V ±10%, 50Hz, 1Ph
MD1-Z-4A1-WL	Multideck Chiller L-Shape Outward Corner Unit	Plug-in Chiller	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1100D x 1650H	L-Shape 90° Inward Corner	80 mm	1.7 m2 / 18 sq. ft.	0.520 m3 / 18 Cu. Ft.	820 W (Indoor)	350 W	220V ±10%, 50Hz, 1Ph

Semi-Height Grab And Go Multi-Deck Supermarket Open Coolers (Remote/Plug-in)

➢ Supermarket Multi-Deck Fridge / Multi-Deck Cooler / Multideck Chiller / Multideck Refrigerator / Supermarket Fruits & Vegetables Display Cooler / Dairy Display Cooler / Beverage Display Chiller / Foodservice Case / Refrigerated Self-Service Case
➢ Used for: supermarkets, hypermarkets, fruits & vegetables shops, foods chain stores etc.
➢ Key Functions: Cooling display and chilling storage of fruits, vegetables, prepackaged meat & fish, produce, dairy, eggs, processed foods, deli foods, beverages & drinks etc.
➢ Chilling temperature: -2 ~ +2℃
➢ Tags: supermarket fridge, supermarket cooler, supermarket chiller, supermarket refrigerator, supermarket multideck fridge, multideck open cooler, multideck open chiller, supermarket display cooler, air curtain chiller, air curtain open cooler, vertical display cooler, convenient store fridge, supermarket dairy cooler, supermarket beverage cooler, fruits & vegetables cooler, hypermarket air curtain cooler, supermarket refrigerator, supermarket freezer, supermarket fridge
➢ Shipping Ports: Shenzhen China, Guangzhou China

Grab-and-Go Multideck Supermarket Open Cooler

FRESH & COOL

Semi-Height Air Curtain Multi-Deck Supermarket Chiller Product Features

Elegant and user-friendfly design supermarket fridges, simple and fashionable streamline fridge cabinet, beautiful and well-proportioned lines, larger fridge didplay area. Provide full display effect and create a comfortable supermarket shopping environment for consumers' enjoyable shopping experience and increase supermarket sales.
Easily-Disassemblable Modules can be joined together for a longer fridge unit to suit supermarket space.
Single supermarket fridge cabinet length from 6 feet to 12 feet, and extensible by connecting, suitable for any size of supermarkets, stores and shops
Free Combination: V-Shape, L-Shape and W-Shape Corner-Joining fridge units for connection to meet your personalized shop and store layouts
Multiple Colors according to customers' culture and preference
SUS304 Countertop. Strong, sanitary and durable.
Split type Remote Open Cooler with outdoor condenser and monoblock type Plug-in Self-Contained Open Cooler with built-in compressor for choice according to display area, installation space, and power supply(single phase and 3-phase)
High-Efficiency Supermarket Fridge Evaporator with Pre-Cooling Piping Layout Design to improve the frosting condition. The Multi-Dimensional Air Blow Design makes extremely fast cooling, even cooling and low energy consumption.
Roller Deceleration Supermarket Fridge Night Curtain Cover is equipped for more energy saving at night running. The night curtain is equipped with deceleration devices to avoid the fast rolling-back speed strikes on the fridge cabinet to ensure the supermarket fridge durability.
High Thermal-Efficiency Polyurethane(PU)-Foam-Insulated Board Cabinet
The LED integrated microcomputer thermostat is safe and easy to operate for Precise Digital Temperature Display, Monitoring & Temperature Setting.
Ebmpapst Energy-Saving Brushless DC Fan Motor. 50% motor energy-saving compared to standard motor, and more quiet.

Supermarket Fridge Parts & Componets

Description	Standard Parts	Optional Parts
Cabinet Material	SPCC + Powder Spraying + Countertop SUS304	SUS304 Stainless Steel
Lighting	LED (6500K)	LED (Desired Colour Temp.)
Cabinet Colour	Wood Grain	Multiple Options
Power Supply	380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph	110V,60Hz;220V,60Hz;380V,60Hz
Side Panels	Wood Grain Color Metal Side Panel	Solid Wood Decorated
Fan Motor	EBM Shaded Pole Motor	EBM Brushless DC Motor
Evaporator	Corrugated Fin
Compressors	Brand Compressors
Thermostat	Micro-Computer Digital Temperature Display Thermostat
Shelves	Spray Coating Edged Shelves
Refrigerant	R404a/R22
Night Covers	PE Roller Deceleration Night Curtain	Aluminum Fabric Roller Deceleration Night Curtain
Castors		Swivel Castors
Humidification		Mist Spraying Humidify

Semi-Height Multi-Deck Supermarket Open Chiller Product Views

MD1-FZ-4B1_Grab_and_Go_Supermarket_Refrigerator_Multideck_Cooler_Open_Chiller_Refrigerated_Display_Cabinet_Right_Side_View; Supermarket Refrigeration Equipment Manufacturer with 20+ Years in producing Supermarket Refrigerators & Freezers, Quality Guaranteed.

MD1-FZ-4B1 Multideck Supermarket Open Cooler

Air Curtain Supermarket Fridge | Semi-Height Multi-Deck Open Cooler (Remote Chiller) Technical Specification

Ask for Price

Skype Ask for Price

Model	Description	Type	Storage Temp.	Product Length	Cabinet Size (mm)	Module (625 mm)	Side Panel	Display Area	Capacity	Input Power	Defrost	Voltage
MD1-06150F-4B1	6' Supermarket Multi-Deck Open Cooler	Remote Cooler	-2 ~ +2℃	1875 mm / 6 ft	1875L x 1050D x 1400H	3	80 mm	2.0 m2 / 22 sq. ft.	0.619 m3 / 22 Cu. Ft.	140 W (Indoor)	500 W	220V ±10%, 50Hz, 1Ph
MD1-08150F-4B1	8' Supermarket Multi-Deck Open Cooler	Remote Cooler	-2 ~ +2℃	2500 mm / 8 ft	2500L x 1050D x 1400H	4	80 mm	2.6 m2 / 28 sq. ft.	0.825 m3 / 29 Cu. Ft.	150 W (Indoor)	700 W	220V ±10%, 50Hz, 1Ph
MD1-10150F-4B1	10' Supermarket Multi-Deck Open Cooler	Remote Cooler	-2 ~ +2℃	3125 mm / 10 ft	3125L x 1050D x 1400H	5	80 mm	3.3 m2 / 36 sq. ft.	1.031 m3 / 36 Cu. Ft.	150 W (Indoor)	900 W	220V ±10%, 50Hz, 1Ph
MD1-12150F-4B1	12' Supermarket Multi-Deck Open Cooler	Remote Cooler	-2 ~ +2℃	3750 mm / 12 ft	3750L x 1050D x 1400H	6	80 mm	3.9 m2 / 42 sq. ft.	1.238 m3 / 44 Cu. Ft.	225 W (Indoor)	1200 W	220V ±10%, 50Hz, 1Ph
MD1-F-4B1-NV	Multideck Chiller V-Shape Inward Corner Unit	Remote Cooler	-2 ~ +2℃	640+640 mm	(640+640)L x 1050D x 1400H	V-Shape 45° Inward Corner	80 mm	0.5 m2 / 5 sq. ft.	0.165 m3 / 6 Cu. Ft.	70 W (Indoor)	250 W	220V ±10%, 50Hz, 1Ph
MD1-F-4B1-WV	Multideck Chiller V-Shape Outward Corner Unit	Remote Cooler	-2 ~ +2℃	640+640 mm	(640+640)L x 1050D x 1400H	V-Shape 45° Inward Corner	80 mm	1.0 m2 / 16 sq. ft.	0.165 m3 / 6 Cu. Ft.	70 W (Indoor)	250 W	220V ±10%, 50Hz, 1Ph
MD1-F-4B1-NWW	Multideck Chiller W-Shape Inward Corner Unit	Remote Cooler	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1050D x 1400H	W-Shape 90° Corner	80 mm	1.5 m2 / 17 sq. ft.	0.413 m3 / 16 Cu. Ft.	70 W (Indoor)	350 W	220V ±10%, 50Hz, 1Ph
MD1-F-4B1-NW	Multideck Chiller W-Shape Inward Corner Unit	Remote Cooler	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1050D x 1400H	W-Shape 90° Inward Corner	80 mm	1.8 m2 / 19 sq. ft.	0.540 m3 / 19 Cu. Ft.	70 W (Indoor)	350 W	220V ±10%, 50Hz, 1Ph
MD1-F-4B1-WW	Multideck Chiller W-Shape Outward Corner Unit	Remote Cooler	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1050D x 1400H	W-Shape 90° Outward Corner	80 mm	1.5 m2 / 17 sq. ft.	0.540 m3 / 19 Cu. Ft.	70 W (Indoor)	350 W	220V ±10%, 50Hz, 1Ph
MD1-F-4B1-NL	Multideck Chiller L-Shape Inward Corner Unit	Remote Cooler	-2 ~ +2℃	1225+1225 mm	(1225+1225)L x 1050D x 1400H	L-Shape 90° Inward Corner	80 mm	1.5 m2 / 17 sq. ft.	0.240 m3 / 8 Cu. Ft.	70 W (Indoor)	350 W	220V ±10%, 50Hz, 1Ph
MD1-F-4B1-WL	Multideck Chiller L-Shape Outward Corner Unit	Remote Cooler	-2 ~ +2℃	1225+1225 mm	(1225+1225)L x 1050D x 1400H	L-Shape 90° Inward Corner	80 mm	0.7 m2 / 8 sq. ft.	0.240 m3 / 8 Cu. Ft.	70 W (Indoor)	350 W	220V ±10%, 50Hz, 1Ph

Semi-Height Air Curtain Supermarket Fridge | Multi-Deck Open Cooler (Self-Contained Plug-in Chiller) Technical Specification

Ask for Price

Skype Ask for Price

Model	Description	Type	Storage Temp.	Product Length	Cabinet Size (mm)	Module (625 mm)	Side Panel	Display Area	Capacity	Input Power	Defrost	Voltage
MD1-06150Z-4B1	6' Supermarket Multi-Deck Open Cooler	Plug-in Chiller	-2 ~ +2℃	1875 mm / 6 ft	1875L x 1050D x 1400H	3	80 mm	2.2 m2 / 24 sq. ft.	0.506 m3 / 18 Cu. Ft.	890 W	500 W	220V ±10%, 50Hz, 1Ph
MD1-08150Z-4B1	8' Supermarket Multi-Deck Open Cooler	Plug-in Cooler	-2 ~ +2℃	2500 mm / 8 ft	2500L x 1050D x 1400H	4	80 mm	2.6 m2 / 28 sq. ft.	0.825 m3 / 29 Cu. Ft.	1380 W	700 W	220V ±10%, 50Hz, 1Ph
MD1-10150Z-4B1	10' Supermarket Multi-Deck Open Cooler	Plug-in Cooler	-2 ~ +2℃	3125 mm / 10 ft	3125L x 1050D x 1400H	5	80 mm	3.3 m2 / 36 sq. ft.	1.031 m3 / 36 Cu. Ft.	1850 W	900 W	220V ±10%, 50Hz, 1Ph
MD1-12150Z-4B1	12' Supermarket Multi-Deck Open Cooler	Plug-in Cooler	-2 ~ +2℃	3750 mm / 12 ft	3750L x 1050D x 1400H	6	80 mm	3.9 m2 / 42 sq. ft.	1.238 m3 / 44 Cu. Ft.	1925 W	1200 W	220V ±10%, 50Hz, 1Ph
MD1-Z-4B1-NWW	Multideck Chiller W-Shape Inward Corner Unit	Plug-in Cooler	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1050D x 1400H	W-Shape 90° Corner	80 mm	1.5 m2 / 17 sq. ft.	0.413 m3 / 16 Cu. Ft.	820 W	350 W	220V ±10%, 50Hz, 1Ph
MD1-Z-4B1-NW	Multideck Chiller W-Shape Inward Corner Unit	Plug-in Cooler	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1050D x 1400H	W-Shape 90° Inward Corner	80 mm	1.8 m2 / 19 sq. ft.	0.540 m3 / 19 Cu. Ft.	820 W	350 W	220V ±10%, 50Hz, 1Ph
MD1-Z-4B1-WW	Multideck Chiller W-Shape Outward Corner Unit	Plug-in Cooler	-2 ~ +2℃	1545+1545 mm	(1545+1545)L x 1050D x 1400H	W-Shape 90° Outward Corner	80 mm	1.5 m2 / 17 sq. ft.	0.540 m3 / 19 Cu. Ft.	820 W	350 W	220V ±10%, 50Hz, 1Ph
MD1-Z-4B1-NL	Multideck Chiller L-Shape Inward Corner Unit	Plug-in Cooler	-2 ~ +2℃	1225+1225 mm	(1225+1225)L x 1050D x 1400H	L-Shape 90° Inward Corner	80 mm	1.5 m2 / 17 sq. ft.	0.240 m3 / 8 Cu. Ft.	820 W	350 W	220V ±10%, 50Hz, 1Ph
MD1-Z-4B1-WL	Multideck Chiller L-Shape Outward Corner Unit	Plug-in Cooler	-2 ~ +2℃	1225+1225 mm	(1225+1225)L x 1050D x 1400H	L-Shape 90° Inward Corner	80 mm	0.7 m2 / 8 sq. ft.	0.240 m3 / 8 Cu. Ft.	820 W	350 W	220V ±10%, 50Hz, 1Ph

WE BUILD

INNOVATION

NEVER COMPROMISE

WE ACCOMPANY

SUPERMARKET REFRIGERATION EQUIPMENT

SUPERMARKET SEMI-HEIGHT MULTIDECK CHILLERS

SUPERMARKET SEMI-HEIGHT MULTI-DECK CHILLERS DESIGNS & STYLES

Grab And Go Air-Curtain Supermarket Multi-Deck Cooler (Remote)

Upright Island Mutl-Deck Supermarket Fridge Product Features

Supermarket Fridge Parts & Componets

Product Images

Upright Island Mutl-Deck Supermarket Fridge Product Views

Upright Supermarket Fridge | Multi-Deck Cooler Technical Specification

Upright Supermarket Fridge | Multi-Deck Refrigerator (Corner) Technical Specification

Supermarket Vegetables & Fruits Semi-Height Open Chiller (Plug-in)

Open Type Vegetables & Fruits Supermarket Chiller Product Features

Supermarket Fridge Parts & Componets

Product Images

Open Type Vegetables & Fruits Supermarket Chiller Product Views

Fruits & Vegetables Supermarket Fridge | Semi-Height Open Chiller Technical Specification

Supermarket Multi-Deck Chillers (W/WO Glass Door)

Semi-Height Air Curtain Multi-Deck Supermarket Chiller Product Features

Supermarket Fridge Parts & Componets

Product Images

Semi-Height Air Curtain Multi-Deck Supermarket Refrigerator Product Views

Semi-Height Air Curtain Supermarket Fridge | Multi-Deck Chiller (Remote Chiller) Technical Specification

Semi-Height Air Curtain Supermarket Fridge | Multi-Deck Cooler (Plug-in Cooler) Technical Specification

Semi-Height Grab And Go Multi-Deck Supermarket Open Chillers (Remote/Plug-in)

Semi-Height Air Curtain Multi-Deck Supermarket Chiller Product Features

Supermarket Fridge Parts & Componets

Semi-Height Multi-Deck Supermarket Open Chiller Product Views

Air Curtain Supermarket Fridge | Semi-Height Multi-Deck Open Chiller (Remote Chiller) Technical Specification

Air Curtain Supermarket Fridge | Semi-Height Multi-Deck Open Chiller (Self-Contained Plug-in Chiller) Technical Specification

Semi-Height Grab And Go Multi-Deck Supermarket Open Coolers (Remote/Plug-in)

Semi-Height Air Curtain Multi-Deck Supermarket Chiller Product Features

Supermarket Fridge Parts & Componets

Semi-Height Multi-Deck Supermarket Open Chiller Product Views

Air Curtain Supermarket Fridge | Semi-Height Multi-Deck Open Cooler (Remote Chiller) Technical Specification

Semi-Height Air Curtain Supermarket Fridge | Multi-Deck Open Cooler (Self-Contained Plug-in Chiller) Technical Specification

Related Products

Featured Products

Hot Sales

Enquiry
