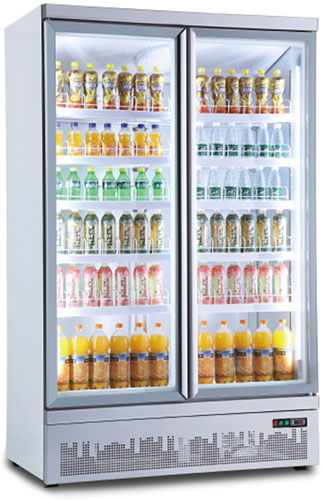

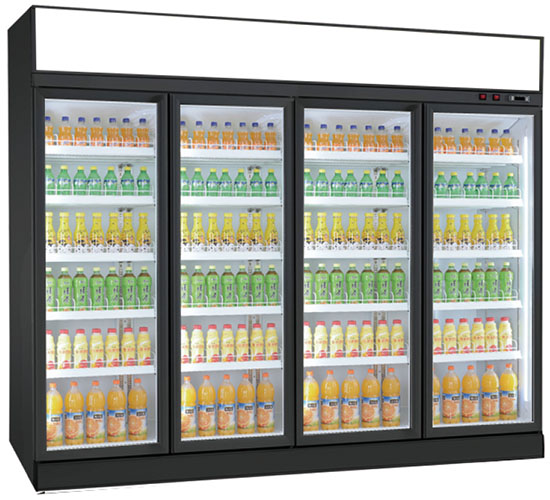

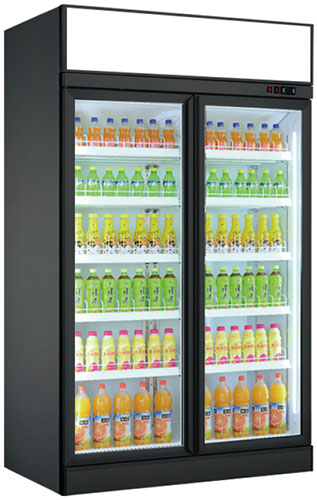

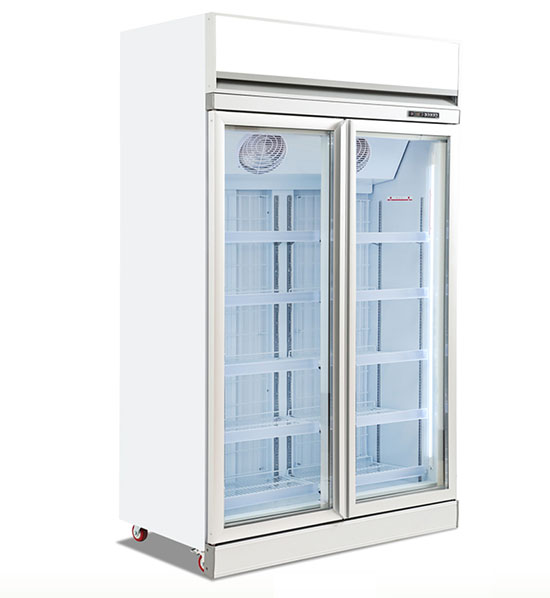

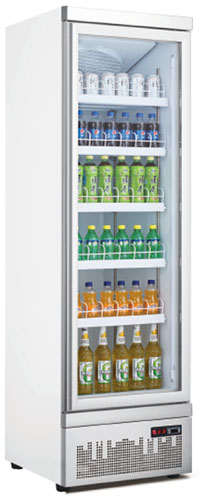

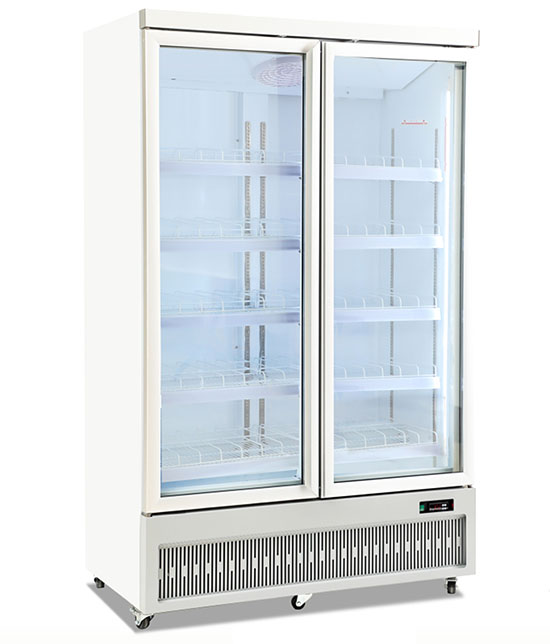

We manufacture and supply whole range of Convenience Store Display Cases including Convenience Store Refrigerator Cases and Covenience Store Freezer Cases. This serie of Supermarket & Convenience Store Beverage Showchase Chiller is a Commercial Glass Door Convenience Store Cooler Display Case for beverage & drinks displays. Both remote chiller and self-contained plug-in chiller are available for convenience of stores.
The refrigerated storage temperature of this commercial beverage refrigerated display case is at the chilling and cooling temperature of +2~+8 ℃ for the refrigered display and storage of beverage & drinks, milk & dairy, beers, meats & eggs, prepackaged foods, processed foods, food materials, dry goods etc. in supermarkets, hypermarkets, convenience stores, supercenters, shopping malls, superstores, retail chain stores, self-service stores, foods stores, convenience stores, grocery stores, drinks shops, food markets, green grocery and vegetables stores, snack bars, hotels & restaurants etc.. Professional supermarket refrigerated display case manufacturer and supplier in China with over 20 years of experience in commercial refrigeration equipment & supermarket refrigeration equipment, quality is guaranteed.

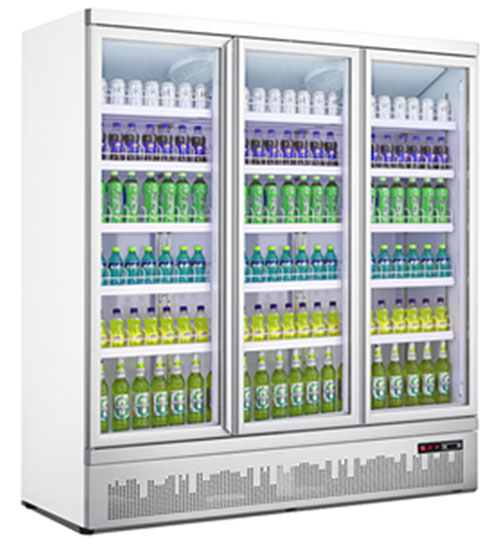

Grocery Convenience Store
Beverage Cooler Showcase
Superior Quality World Brand Compressors For Powerful Cooling and Freezing Capability. Long Lasting Life & Quiet, Energy-Saving
Both Fridge Condenser & Evaporator With 100% Pure Copper Tube, Strong, No Corrotion, Long-Lasting Life
Micro-Computer Digital Display Temperature Controller for Precise and Stable Temperature

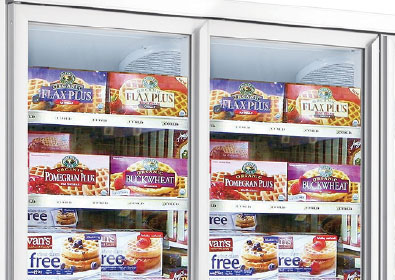

3-Pane Double-Layer Glass Door : Energy-Saving Low-E Coated Glass, No Condensed Water, Transparant & Clear Display
Adjustable Shelves. Optional Double-Layer Shelf With Bottle Holder for Storage of Bottled Beverage & Canned Drinks
Universal Casters, No Noise. Anti-Skid Wheels
| Description | Standard Parts | Optional Parts |
|---|---|---|
| Cabinet Material | SPCC + Powder Spraying | SUS304 Stainless Steel |
| Lighting | LED (6500K) | LED (Desired Colour Temp.) |
| Cabinet Colour | White | Multiple Options |
| Power Supply | 380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph | 110V,60Hz;220V,60Hz;380V,60Hz |
| Side Panels | Foamed with Mirror | Vaccumed Film-Coated Glass Panels with Anti-Mist Wire-Heating |
| Fan Motor | EBM Shaded Pole Motor | EBM Brushless DC Motor |
| Evaporator | Corrugated Fin | |
| Compressors | Brand Compressors | |
| Thermostat | Micro-Computer Digital Temperature Display Thermostat | Additional gauge outfit |
| Shelves | 4 PC Chromium Plating | 4 PC Dip Coating |
| Refrigerant | R404a/R22 | |
| Doors | Film-Coated Glass Doors with Anti-Mist Wire-Heating & Aluminium Door Frame | Film-Coated Glass Doors with Anti-Mist Wire-Heating & Hidden Door Frame / Hydrophilip Film |
| Model | Description | Type | Storage Temp. | Product Length | Cabinet Size (mm) | Nos. of Doors | Side Panel | Display Area | Capacity | Refrig. Capacity | Energy Consum. | Defrosting Power | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

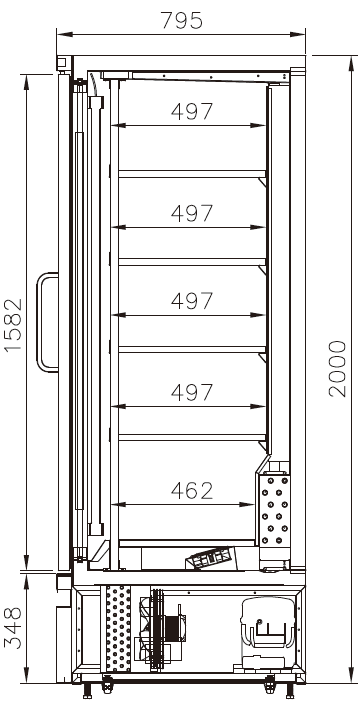

| LM4SP-04200Z | 4' Beverage Showcase Chiller | Plug-in | +2 ~ +8℃ | 1130 mm / 4 ft | 1130L x 795D x 2000H | 2 Glass Doors | 100 mm | 2.3 m2 / 25 sq. ft. | 0.565 m3 / 20 Cu. Ft. | 904 W | 1860 W | 2000 W | 220V ±10%, 50Hz, 1Ph |
| LM4SP-06200Z | 6' Beverage Showcase Chiller | Plug-in | +2 ~ +8℃ | 1738 mm / 6 ft | 1738L x 795D x 2000H | 3 Glass Doors | 100 mm | 3.5 m2 / 38 sq. ft. | 0.869 m3 / 31 Cu. Ft. | 1390 W | 2075 W | 3000 W | 220V ±10%, 50Hz, 1Ph |
| LM4SP-08200Z | 8' Beverage Showcase Chiller | Plug-in | +2 ~ +8℃ | 2348 mm / 8 ft | 2348L x 795D x 2000H | 4 Glass Doors | 100 mm | 4.7 m2 / 51 sq. ft. | 1.174 m3 / 41 Cu. Ft. | 1878 W | 2290 W | 4000 W | 220V ±10%, 50Hz, 1Ph |
Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity( --- ).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage: 220V ±10%, 50Hz, 1Ph. 110V/60Hz and 220V/60Hz availability to be confirmed.
220V ±10%, 50Hz, 1Ph: China, Vietname, Cambodia, Thailand, Malaysia, Indonesia, Australia, New Zealand, Bangladesh, India, Sri Lanka, Pakistan, Afghanistan, Uzbekistan, Turkmenistan, Kazakhstan, Georgia, Azerbaijan, Iran, Iraq, UAE, Yemen, Turkey, Egypt, Ethiopia, Kenya, Tanzania, Mozambique, Madagascar, South Africa, Angola, Congo, Cameron, Nigeria, Ghana, Cote d'Ivoire, Morocco, Algeria, Libya, Tunisia, Italy, Greece, Spain, Portugal, Britain, France, Germany, Sweden, Norway, Finland, Poland, Hungary, Ukraine, Serbia, Croatia, Romania, Bulgaria, Russia, Chile, Argentina, Paraguay etc.
220V ±10%, 60Hz, 1Ph: Korea, Saudi Arabia, Philippines, Peru etc.
110V ±10%, 60Hz, 1Ph: Japan, United States, Canada, Mexico, Ecuador, Brazil, Colombia, Venezuela etc.

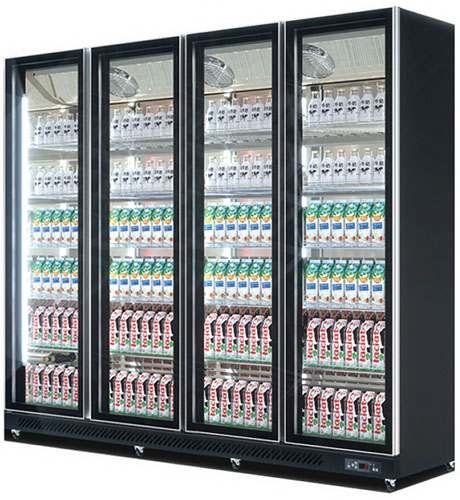

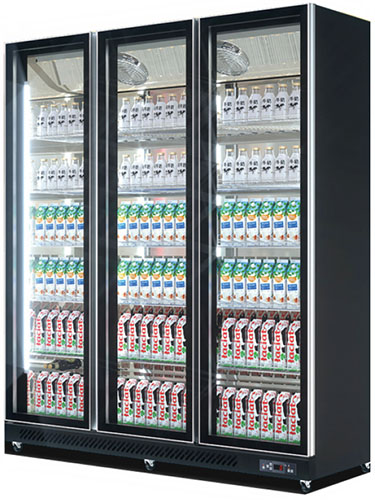

Grocery Convenience Store
Beverage Refrigerator Showcase
| Description | Standard Parts | Optional Parts |
|---|---|---|
| Cabinet Material | SPCC + Powder Spraying | SUS304 Stainless Steel |
| Lighting | LED (6500K) | LED (Desired Colour Temp.) |
| Cabinet Colour | White | Multiple Options |
| Power Supply | 380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph | 110V,60Hz;220V,60Hz;380V,60Hz |
| Side Panels | Foamed with Mirror | Vaccumed Film-Coated Glass Panels with Anti-Mist Wire-Heating |
| Fan Motor | EBM Shaded Pole Motor | EBM Brushless DC Motor |
| Evaporator | Corrugated Fin | |
| Compressors | Brand Compressors | |
| Thermostat | Micro-Computer Digital Temperature Display Thermostat | Additional gauge outfit |
| Shelves | 4 PC Chromium Plating | 4 PC Dip Coating |
| Refrigerant | R404a/R22 | |
| Doors | Film-Coated Glass Doors with Anti-Mist Wire-Heating & Aluminium Door Frame | Film-Coated Glass Doors with Anti-Mist Wire-Heating & Hidden Door Frame / Hydrophilip Film |
| Model | Description | Type | Storage Temp. | Product Length | Cabinet Size (mm) | Nos. of Doors | Side Panel | Display Area | Capacity | Refrig. Capacity | Energy Consum. | Defrosting Power | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LM4SP-04200F | 4' Beverage Refrigerator Showcase | Remote / Split | +2 ~ +8℃ | 1348 mm / 8 ft | 1348L x 795D x 2000H | 2 Glass Doors | 100 mm | 2.7 m2 / 29 sq. ft. | 0.809 m3 / 29 Cu. Ft. | 1314 W | 300 W (Indoor) | Automatic | 380V ±10%, 50Hz, 3Ph |
| LM4SP-07200F | 7' Beverage Refrigerator Showcase | Remote / Split | +2 ~ +8℃ | 2020 mm / 7 ft | 2020L x 795D x 2000H | 3 Glass Doors | 100 mm | 4.0 m2 / 43 sq. ft. | 1.212 m3 / 43 Cu. Ft. | 1970 W | 500 W (Indoor) | Automatic | 380V ±10%, 50Hz, 3Ph |
| LM4SP-09200F | 9' Beverage Refrigerator Showcase | Remote / Split | +2 ~ +8℃ | 2725 mm / 9 ft | 2725L x 795D x 2000H | 4 Glass Doors | 100 mm | 5.5 m2 / 59 sq. ft. | 1.635 m3 / 58 Cu. Ft. | 2657 W | 700 W (Indoor) | Automatic | 380V ±10%, 50Hz, 3Ph |
Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity( --- ).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage for the supermarket refrigeration units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.
