Vertical Supermarket Air Curtain Coolers
Supermarket Half-Height Multi-Deck Coolers
Supermarket Island Freezers
Refrigerated Meat Display Cases
Deli Display Cases
Upright Glass Door Display Coolers
Upright Glass Door Display Freezers
Milk & Dairy Display Fridges
Convenience Store Beverage Cooler Showcases
Convenience Store Freezer Showcases
Aquariums & Shellfish Tanks
We manufacture and supply whole range of Supermkarket Display Fridges including Supermarket Display Coolers and Supermarket Display Freezers. This serie of Supermarket & Convenience Store Dairy & Milk Cooler Showchase is an Commercial Upright Display Refrigerator. Both remote cooler and self-contained plug-in cooler are available for the convenience of stores.
This commercial upright milk & dairy display cabinet can be used as grocery store drinks display fridge & beverage display refrigerator too. The refrigerated storage temperature of this milk & dairy display refrigerator cabinet is at the chilling and cooling temperature of +2~+8 ℃ for the refrigered display and storage of milk & dairy, beverage & drinks, meats & eggs, prepackaged foods, processed foods, food materials, dry goods etc. in supermarkets, hypermarkets, supercenters, shopping malls, superstores, retail chain stores, self-service stores, foods stores, convenience stores, grocery stores, drinks shops, food markets, green grocery and vegetables stores, snack bars, hotels & restaurants etc.. Professional supermarket fridge manufacturer and supplier in China with over 20 years of experience in commercial refrigeration equipment & supermarket refrigeration equipment, quality is guaranteed.

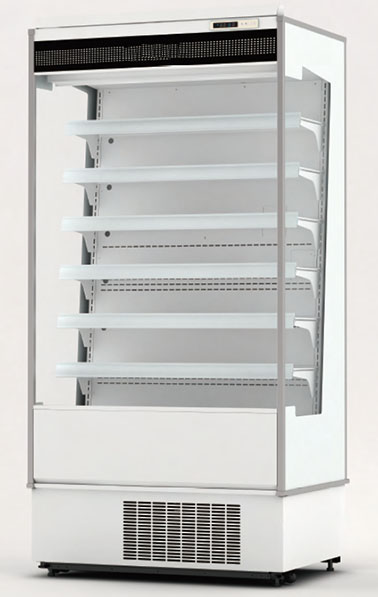

Multideck Convenience Store
Dairy Cooler Display Case
Superior Quality World Brand Compressors For Powerful Cooling and Freezing Capability. Long Lasting Life & Quiet, Energy-Saving
Both Fridge Condenser & Evaporator With 100% Pure Copper Tube, Strong, No Corrosion, Long-Lasting Life

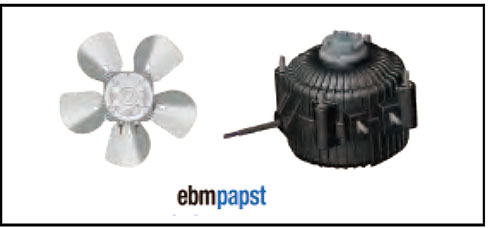

Ebmpapst Energy-Saving Brushless DC Fan Motor -- 50% energy-saving, and more quiet

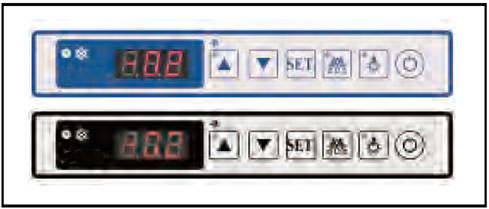

LED microcomputer digital temperature display controller
Honeycomb Air Outlet Back Blowing Cooling System to Pefectly Return and Retain Cooling Air, Energy-Saving, Laminar Air Flow to Cool Quickly and Evenly
Adjustable Flat-Layer-Double-Layer-Holder Interchangeable Shelf for Storage of Bottled Drinks Or Boxed Foods

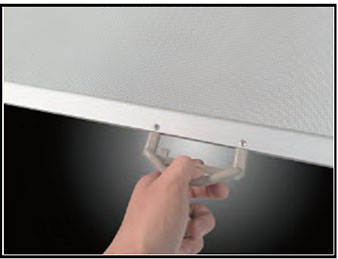

Deceleration Supermarket Fridge Night Curtain

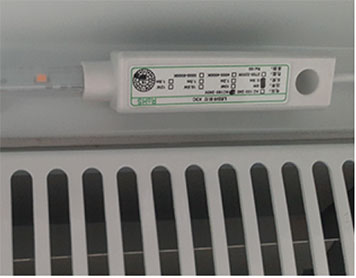

Long Lasting Life LED-Light With Multiple Colors & Magnetic Clips
Universal Casters, No Noise. Anti-Skid Wheels
Supermarket Fridge Cabinet Colors
| Description | Standard Parts | Optional Parts |
|---|---|---|
| Cabinet Material | SPCC + Powder Spraying | SUS304 Stainless Steel |
| Lighting | LED (6500K) | LED (Desired Colour Temp.) |
| Cabinet Colour | White | Multiple Options |
| Power Supply | 380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph | 110V,60Hz;220V,60Hz;380V,60Hz |
| Side Panels | Double Layer Vaccumed Glass | Foamed / Foamed with Mirror |
| Fan Motor | EBM Shaded Pole Motor | EBM Brushless DC Motor |
| Evaporator | Corrugated Fin | |
| Compressors | Brand Compressors | |
| Thermostat | Micro-Computer Digital Temperature Display Thermostat | |
| Shelves | Glass Shelves | |
| Refrigerant | R404a/R22 | |
| Night Covers | PE Roller Deceleration Night Curtain | |
| Canopy | Top Advertisement Light Box | |
| Castors | Swivel Castors |
| Model | Description | Type | Storage Temp. | Product Length | Cabinet Size (mm) | Module (305 mm) | Side Panel | Display Area | Capacity | Input Power | Defrost | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD2-03190Z-4C1 | 3' Convenience Store Milk & Dairy Cooler | Plug-in Cooler | +3 ~ +7℃ | 915 mm / 3 ft | 915L x 650D x 1900H | 3 | 70 mm | 1.1 m2 / 12 sq. ft. | 0.275 m3 / 10 Cu. Ft. | 910 W | Automatic | 220V ±10%, 50Hz, 1Ph |
| MD2-04190Z-4C1 | 4' Convenience Store Milk & Dairy Cooler | Plug-in Cooler | +3 ~ +7℃ | 1220 mm / 4 ft | 1220L x 650D x 1900H | 4 | 70 mm | 1.4 m2 / 15 sq. ft. | 0.366 m3 / 13 Cu. Ft. | 1350 W | Automatic | 220V ±10%, 50Hz, 1Ph |
| MD2-05190Z-4C1 | 5' Convenience Store Milk & Dairy Cooler | Plug-in Cooler | +3 ~ +7℃ | 1525 mm / 5 ft | 1525L x 650D x 1900H | 5 | 70 mm | 1.8 m2 / 19 sq. ft. | 0.459 m3 / 16 Cu. Ft. | 1420 W | Automatic | 220V ±10%, 50Hz, 1Ph |
| MD2-06190Z-4C1 | 6' Convenience Store Milk & Dairy Cooler | Plug-in Cooler | +3 ~ +7℃ | 1830 mm / 6 ft | 1830L x 650D x 1900H | 6 | 70 mm | 2.1 m2 / 22 sq. ft. | 0.549 m3 / 19 Cu. Ft. | 1820 W | Automatic | 220V ±10%, 50Hz, 1Ph |
| MD2-08190Z-4C1 | 8' Convenience Store Milk & Dairy Cooler | Plug-in Cooler | +3 ~ +7℃ | 2440 mm / 8 ft | 2440L x 650D x 1900H | 8 | 70 mm | 2.8 m2 / 30 sq. ft. | 0.732 m3 / 26 Cu. Ft. | 2100 W | Automatic | 220V ±10%, 50Hz, 1Ph |
| Model | Description | Type | Storage Temp. | Product Length | Cabinet Size (mm) | Module (305 mm) | Side Panel | Display Area | Capacity | Input Power | Defrost | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD2-03190F-4C1 | 3' Convenience Store Milk & Dairy Refrigerator | Remote Refrigerator | +3 ~ +7℃ | 915 mm / 3 ft | 915L x 750D x 1900H | 3 | 70 mm | 1.2 m2 / 13 sq. ft. | 0.377 m3 / 13 Cu. Ft. | 170 W (Indoor) | Automatic | 220V ±10%, 50Hz, 1Ph |
| MD2-04190F-4C1 | 4' Convenience Store Milk & Dairy Refrigerator | Remote Refrigerator | +3 ~ +7℃ | 1220 mm / 4 ft | 1220L x 750D x 1900H | 4 | 70 mm | 1.6 m2 / 17 sq. ft. | 0.503 m3 / 18 Cu. Ft. | 190 W (Indoor) | Automatic | 220V ±10%, 50Hz, 1Ph |
| MD2-05190F-4C1 | 5' Convenience Store Milk & Dairy Refrigerator | Remote Refrigerator | +3 ~ +7℃ | 1525 mm / 5 ft | 1525L x 750D x 1900H | 5 | 70 mm | 2.0 m2 / 22 sq. ft. | 0.629 m3 / 22 Cu. Ft. | 260 W (Indoor) | Automatic | 220V ±10%, 50Hz, 1Ph |
| MD2-06190F-4C1 | 6' Convenience Store Milk & Dairy Refrigerator | Remote Refrigerator | +3 ~ +7℃ | 1830 mm / 6 ft | 1830L x 750D x 1900H | 6 | 70 mm | 2.4 m2 / 26 sq. ft. | 0.755 m3 / 27 Cu. Ft. | 320 W (Indoor) | Automatic | 220V ±10%, 50Hz, 1Ph |
| MD2-08190F-4C1 | 8' Convenience Store Milk & Dairy Refrigerator | Remote Refrigerator | +3 ~ +7℃ | 2440 mm / 8 ft | 2440L x 750D x 1900H | 8 | 70 mm | 3.2 m2 / 34 sq. ft. | 1.007 m3 / 36 Cu. Ft. | 390 W (Indoor) | Automatic | 220V ±10%, 50Hz, 1Ph |
Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(≤0.2 m/s).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage: 220V ±10%, 50Hz, 1Ph. 110V/60Hz and 220V/60Hz availability to be confirmed.
220V ±10%, 50Hz, 1Ph: China, Vietname, Cambodia, Thailand, Malaysia, Indonesia, Australia, New Zealand, Bangladesh, India, Sri Lanka, Pakistan, Afghanistan, Uzbekistan, Turkmenistan, Kazakhstan, Georgia, Azerbaijan, Iran, Iraq, UAE, Yemen, Turkey, Egypt, Ethiopia, Kenya, Tanzania, Mozambique, Madagascar, South Africa, Angola, Congo, Cameron, Nigeria, Ghana, Cote d'Ivoire, Morocco, Algeria, Libya, Tunisia, Italy, Greece, Spain, Portugal, Britain, France, Germany, Sweden, Norway, Finland, Poland, Hungary, Ukraine, Serbia, Croatia, Romania, Bulgaria, Russia, Chile, Argentina, Paraguay etc.
220V ±10%, 60Hz, 1Ph: Korea, Saudi Arabia, Philippines, Peru etc.
110V ±10%, 60Hz, 1Ph: Japan, United States, Canada, Mexico, Ecuador, Brazil, Colombia, Venezuela etc.
Multideck Convenience Store
Dairy Chiller Showcase
| Description | Standard Parts | Optional Parts |
|---|---|---|
| Cabinet Material | SPCC + Powder Spraying | SUS304 Stainless Steel |
| Lighting | LED (6500K) | |
| Cabinet Colour | Black/Grey | Multiple Options |
| Power Supply | 380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph | 110V,60Hz;220V,60Hz;380V,60Hz |
| Side Panels | Double Layer Vaccumed Glass | |
| Fan Motor | EBM Shaded Pole Motor | EBM Brushless DC Motor |
| Evaporator | Corrugated Fin | |
| Compressors | Brand Compressors | |
| Thermostat | Micro-Computer Digital Temperature Display Thermostat | |
| Shelves | 4 PC | |
| Refrigerant | R404a/R22 | |
| Night Covers | PE Roller Deceleration Night Curtain | |
| Price Tag | PVC Price Tag | |
| Castors | Swivel Castors |
| Model | Description | Type | Storage Temp. | Product Length | Cabinet Size (mm) | Module (305 mm) | Side Panel | Display Area | Capacity | Input Power | Defrost | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD2-03202Z-4E1 | 3' Convenience Store Milk & Dairy Chiller | Plug-in Chiller | +2 ~ +8℃ | 915 mm / 3 ft | 915L x 720D x 2020H | 3 | 70 mm | 1.1 m2 / 12 sq. ft. | 0.275 m3 / 10 Cu. Ft. | 910 W | Automatic | 220V ±10%, 50Hz, 1Ph |
| MD2-04202Z-4E1 | 4' Convenience Store Milk & Dairy Chiller | Plug-in Cooler | +3 ~ +7℃ | 1220 mm / 4 ft | 1220L x 720D x 2020H | 4 | 70 mm | 1.4 m2 / 15 sq. ft. | 0.366 m3 / 13 Cu. Ft. | 1350 W | Automatic | 220V ±10%, 50Hz, 1Ph |
| MD2-05202Z-4E1 | 5' Convenience Store Milk & Dairy Chiller | Plug-in Cooler | +3 ~ +7℃ | 1525 mm / 5 ft | 1525L x 720D x 2020H | 5 | 70 mm | 1.8 m2 / 19 sq. ft. | 0.459 m3 / 16 Cu. Ft. | 1420 W | Automatic | 220V ±10%, 50Hz, 1Ph |
