SUPERMARKET REFRIGERATION EQUIPMENT

SUPERMARKET VERTICAL GLASS-DOOR DISPLAY REFRIGERATORS

We manufacture and supply whole range of Supermkarket Display Fridges including Supermarket Refrigerator Showcase and Supermarket Freezer Showcase. This serie of Vertical Glass Door Supermarket Refrigerator Showcase is Commercial Beverage Display Cooler for beverage display, drinks display, beer & liqueur display and refrigerated foodservice display. This upright glass door beverage cooler showcase is with the cooling temperature of +2 ℃~+8 ℃ and can be used as milk & dairy cooler showcase too.

Supermarket Glass-Door Display Cooler Showcase; Professional supermarket display refrigerator manufacturer, Quality Guaranteed.
Supermarket Glass Door Display Refrigerators for Beverage & Drinks Display, Milk & Dairy Display

This glass door commercial refrigerator showcase is used in supermarkets, hypermarkets, self-service stores, retail chain stores, food stores, convenience stores, grocery stores, hotels & restaurants etc. for the refrigerated display and storage of beverage, drinks & prepackaged foods. Professional supermarket refrigerator manufacturer and supplier in China with over 20 years of experience in commercial refrigeration equipment & supermarket refrigeration equipment, quality is guaranteed.

VERTICAL GLASS-DOOR SUPERMARKET REFRIGERATOR SHOWCASES DESIGNS & STYLES

1

Vertical Glass-Door Supermarket Display Cooler

  •   Supermarket Display Fridge / Supermarket Display Refigerator / Supermarket Display Cooler / Supermarket Display Chiller / Supermarket Upright Refrigerator Showcase / Upright Display Cooler / Vertical Reach-in Cooler
  •   Used for: frozen foods display and ice cream display in supermarkets, hypermarkets, restaurants, foods stores, convenience chain stores, grocery stores, greengrocers etc.
  •   Key Functions: Upright Supermarket Cooler Showcase for the refrigerated storage and display of beverages, prepackaged foods, prepackaged meat, canned goods and dairy etc.
  •   Chilling temperature: -22 ℃~-18 ℃
  •   Tags: supermarket fridge, supermarket refrigerator, supermarket cooler, supermarket chiller, supermarket cooler, supermarket refrigerated showcase, supermarket glass door refrigerator, supermarket glass door cooler, supermarket glass door chiller, Convenience Store fridge, Convenience Store refrigerator, Convenience Store cooler, Convenience Store chiller, Convenience Store cooler, Convenience Store refrigerated showcase, Convenience Store glass door refrigerator, Convenience Store glass door cooler, Convenience Store glass door chiller, display fridge, display cooler, display chiller, vertical cooler, upright cooler, upright chiller,reach-in cooler, reach-in chiller, reach-in refrigerator
  •   Shipping Ports: Shenzhen China, Guangzhou China

Glass Door Supermarket Display Cooler

FRESH & COOL
Vertical Glass-Door Supermarket Display Cooler Product Features
  • Elegant and user-friendfly design supermarket fridges, simple and fashionable streamline fridge cabinet, beautiful and well-proportioned lines, larger fridge didplay area. Provide full display effect and create a comfortable supermarket shopping environment for consumers' enjoyable shopping experience and increase supermarket sales.
  • Film-Coated Glass Doors with Anti-Mist Wire-Heating, less power consumption and more cooling efficiency, transparancy for crear visibility of displayed foods
  • Split type Remote Cooler with outdoor condenser and monoblock type Self-Contained Plug-in Cooler with built-in compressor for choice according to display area, installation space, and power supply(single phase and 3-phase)
  • Easily-Disassemblable Modules can be joined together for a longer fridge unit to suit supermarket space.
  • Single supermarket fridge cabinet length from 4 feet to 8 feet, and extensible by connecting, suitable for any size of supermarkets, stores and shops
  • Multiple Colors according to customers' culture and preference
  • High-Efficiency Supermarket Fridge Evaporator with Long-Short Fin Design to improve the frosting condition. The Multi-Dimensional Air Blow Design makes extremely fast cooling, even cooling and low energy consumption.
  • Free combination for any desired length
  • Depths of 800mm, 900mm and 1000mm for choice according to your storage volume and display need
  • High Thermal-Efficiency Polyurethane(PU)-Foam-Insulated Board Cabinet with insulation thickness of 60mm.
  • The LED integrated microcomputer thermostat is safe and easy to operate for Precise Digital Temperature Display, Monitoring & Temperature Setting.
  • Ebmpapst Energy-Saving Brushless DC Fan Motor. 50% motor energy-saving compared to standard motor, and more quiet.

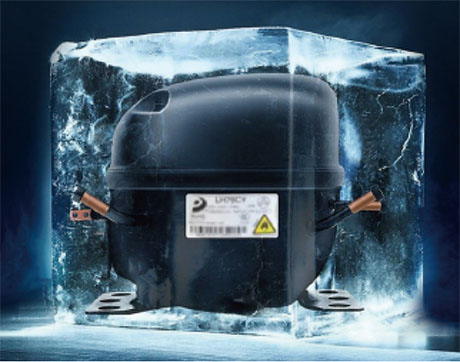

Superior Quality World Brand Compressors For Powerful Cooling and Freezing Capability. Long Lasting Life & Quiet, Energy-Saving

Superior Quality World Brand Compressors For Powerful Cooling and Freezing Capability. Long Lasting Life & Quiet, Energy-Saving

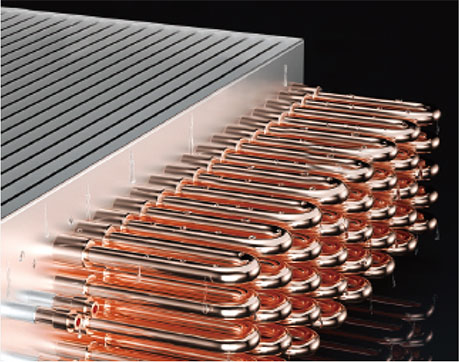

Both Fridge Condenser & Evaporator With 100% Pure Copper Tube, Strong, No Corrotion, Long-Lasting Life, High Efficiency For Powerful Cooling & Energy-Saving

Both Fridge Condenser & Evaporator With 100% Pure Copper Tube, Strong, No Corrotion, Long-Lasting Life

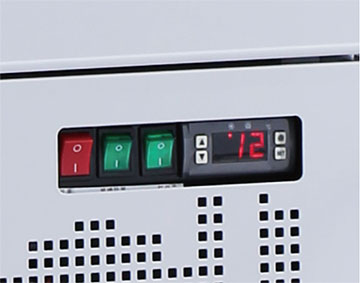

Micro-Computer Digital Display Supermarket Refrigerator Temperature Controller

Micro-Computer Digital Display Temperature Controller for Precise and Stable Temperature

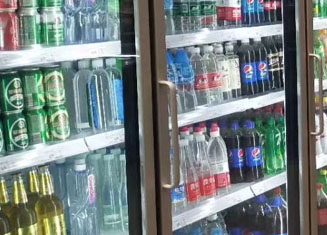

Supermarket Upright Display Cooler 3-Pane Double-Layer Glass Door : Energy-Saving Low-E Coated Glass, No Condensed Water, Transparant & Clear Display

3-Pane Double-Layer Glass Door : Energy-Saving Low-E Coated Glass, No Condensed Water, Transparant & Clear Display

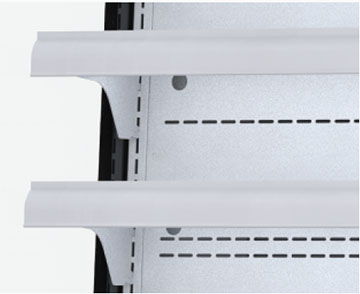

Adjustable Flat-Layer-Double-Layer-Holder Interchangeable Shelf for Storage of Bottled Drinks Or Boxed Foods

Adjustable Flat-Layer-Double-Layer-Holder Interchangeable Shelf for Storage of Bottled Drinks Or Boxed Foods

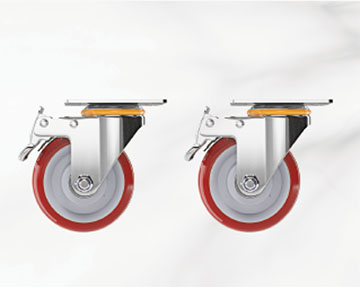

Supermarket Fridge Universal Casters, No Noise, Anti-Skid Wheels.

Universal Casters, No Noise. Anti-Skid Wheels

Supermarket Refrigerator & Freezer Cabinet Optional Colors

Supermarket Fridge Cabinet Colors

Supermarket Fridge Parts & Componets
Description Standard Parts Optional Parts
Cabinet Material SPCC + Powder Spraying SUS304 Stainless Steel
Lighting LED (6500K) LED (Desired Colour Temp.)
Cabinet Colour White Multiple Options
Power Supply 380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph 110V,60Hz;220V,60Hz;380V,60Hz
Side Panels Foamed / With Mirror Vaccumed Film-Coated Glass Panels with Anti-Mist Wire-Heating
Fan Motor EBM Shaded Pole Motor EBM Brushless DC Motor
Evaporator Corrugated Fin
Compressors Brand Compressors
Thermostat Micro-Computer Digital Temperature Display Thermostat Additional gauge outfit
Shelves 4 PC Chromium Plating 4 PC Dip Coating
Refrigerant R404a/R22
Doors Film-Coated Glass Doors with Anti-Mist Wire-Heating & Aluminium Door Frame Film-Coated Glass Doors with Anti-Mist Wire-Heating & Hidden Door Frame / Hydrophilip Film

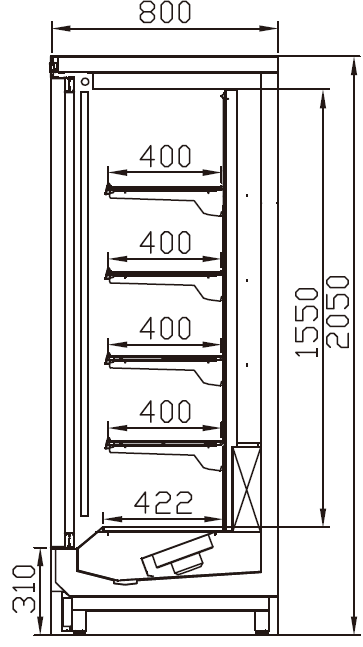

800 mm Vertical Glass-Door Supermarket Display Cooler Cabinet (Remote)Technical Specification
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (725 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
LM41S-05205F-4A2 5' Vertical Glass-Door Supermarket Display Cooler Remote -2 ~ +2℃ 1450 mm / 5 ft 1450L x 800D x 2050H 2 100 mm 2.9 m2 / 31 sq. ft. 0.870 m3 / 31 Cu. Ft. 1414 W 460 W (Indoor) 2800 W 380V ±10%, 50Hz, 3Ph
LM41S-07205F-4A2 7' Vertical Glass-Door Supermarket Display Cooler Remote -2 ~ +2℃ 2175 mm / 7 ft 2175L x 800D x 2050H 3 100 mm 4.4 m2 / 47 sq. ft. 1.305 m3 / 46 Cu. Ft. 2121 W 675 W (Indoor) 3500 W 380V ±10%, 50Hz, 3Ph
LM41S-10205F-4A2 10' Vertical Glass-Door Supermarket Display Cooler Remote -2 ~ +2℃ 2900 mm / 10 ft 2900L x 800D x 2050H 4 100 mm 5.8 m2 / 62 sq. ft. 1.740 m3 / 61 Cu. Ft. 2828 W 890 W (Indoor) 4200 W 380V ±10%, 50Hz, 3Ph
LM41S-05205F-4A6 5' Vertical Glass-Door Supermarket Display Cooler Remote +2 ~ +8℃ 1450 mm / 5 ft 1450L x 800D x 2050H 2 100 mm 2.9 m2 / 31 sq. ft. 0.870 m3 / 31 Cu. Ft. 1414 W 460 W (Indoor) 2800 W 380V ±10%, 50Hz, 3Ph
LM41S-07205F-4A6 7' Vertical Glass-Door Supermarket Display Cooler Remote +2 ~ +8℃ 2175 mm / 7 ft 2175L x 800D x 2050H 3 100 mm 4.4 m2 / 47 sq. ft. 1.305 m3 / 46 Cu. Ft. 2121 W 675 W (Indoor) 3500 W 380V ±10%, 50Hz, 3Ph
LM41S-10205F-4A6 10' Vertical Glass-Door Supermarket Display Cooler Remote +2 ~ +8℃ 2900 mm / 10 ft 2900L x 800D x 2050H 4 100 mm 5.8 m2 / 62 sq. ft. 1.740 m3 / 61 Cu. Ft. 2828 W 890 W (Indoor) 4200 W 380V ±10%, 50Hz, 3Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(( --- ).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage for the supermarket refrigeration units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.
220V ±10%, 50Hz, 1Ph: China, Vietname, Cambodia, Thailand, Malaysia, Indonesia, Australia, New Zealand, Bangladesh, India, Sri Lanka, Pakistan, Afghanistan, Uzbekistan, Turkmenistan, Kazakhstan, Georgia, Azerbaijan, Iran, Iraq, UAE, Yemen, Turkey, Egypt, Ethiopia, Kenya, Tanzania, Mozambique, Madagascar, South Africa, Angola, Congo, Cameron, Nigeria, Ghana, Cote d'Ivoire, Morocco, Algeria, Libya, Tunisia, Italy, Greece, Spain, Portugal, Britain, France, Germany, Sweden, Norway, Finland, Poland, Hungary, Ukraine, Serbia, Croatia, Romania, Bulgaria, Russia, Chile, Argentina, Paraguay etc.
220V ±10%, 60Hz, 1Ph: Korea, Saudi Arabia, Philippines, Peru etc.
110V ±10%, 60Hz, 1Ph: Japan, United States, Canada, Mexico, Ecuador, Brazil, Colombia, Venezuela etc.

800 mm Vertical Glass-Door Supermarket Display Chiller Cabinet (Self-Contained) Technical Specification
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (725 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
LM41S-05205Z-4A2 5' Vertical Glass-Door Supermarket Display Chiller Plug-in Self-Contained -2 ~ +2℃ 1450 mm / 5 ft 1450L x 800D x 2050H 2 100 mm 2.9 m2 / 31 sq. ft. 0.725 m3 / 26 Cu. Ft. 1160 W 1860 W 2800 W 220V ±10%, 50Hz, 1Ph
LM41S-07205Z-4A2 7' Vertical Glass-Door Supermarket Display Chiller Plug-in Self-Contained -2 ~ +2℃ 2175 mm / 7 ft 2175L x 800D x 2050H 3 100 mm 4.4 m2 / 47 sq. ft. 1.088 m3 / 38 Cu. Ft. 1740 W 2075 W 3500 W 220V ±10%, 50Hz, 1Ph
LM41S-10205Z-4A2 10' Vertical Glass-Door Supermarket Display Chiller Plug-in Self-Contained -2 ~ +2℃ 2900 mm / 10 ft 2900L x 800D x 2050H 4 100 mm 5.8 m2 / 62 sq. ft. 1.450 m3 / 51 Cu. Ft. 2320 W 2290 W 4200 W 220V ±10%, 50Hz, 1Ph
LM41S-05205Z-4A6 5' Vertical Glass-Door Supermarket Display Chiller Plug-in Self-Contained +2 ~ +8℃ 1450 mm / 5 ft 1450L x 800D x 2050H 2 100 mm 2.9 m2 / 31 sq. ft. 0.725 m3 / 26 Cu. Ft. 1160 W 1860 W 2800 W 220V ±10%, 50Hz, 1Ph
LM41S-07205Z-4A6 7' Vertical Glass-Door Supermarket Display Chiller Plug-in Self-Contained +2 ~ +8℃ 2175 mm / 7 ft 2175L x 800D x 2050H 3 100 mm 4.4 m2 / 47 sq. ft. 1.088 m3 / 38 Cu. Ft. 1740 W 2075 W 3500 W 220V ±10%, 50Hz, 1Ph
LM41S-10205Z-4A6 10' Vertical Glass-Door Supermarket Display Chiller Plug-in Self-Contained +2 ~ +8℃ 2900 mm / 10 ft 2900L x 800D x 2050H 4 100 mm 5.8 m2 / 62 sq. ft. 1.450 m3 / 51 Cu. Ft. 2320 W 2290 W 4200 W 220V ±10%, 50Hz, 1Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(( --- ).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage: 220V ±10%, 50Hz, 1Ph. 110V/60Hz and 220V/60Hz availability to be confirmed.

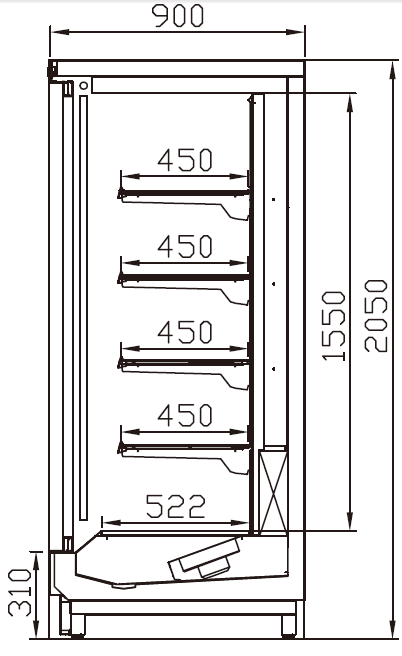

900 mm Vertical Glass-Door Supermarket Display Refrigerator Cabinet (Remote) Technical Specification
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (725 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
LM41M-05205F-4A2 5' Vertical Glass-Door Supermarket Display Refrigerator Remote -2 ~ +2℃ 1450 mm / 5 ft 1450L x 900D x 2050H 2 100 mm 3.6 m2 / 39 sq. ft. 1.088 m3 / 38 Cu. Ft. 1631 W 460 W (Indoor) 2800 W 380V ±10%, 50Hz, 3Ph
LM41M-07205F-4A2 7' Vertical Glass-Door Supermarket Display Refrigerator Remote -2 ~ +2℃ 2175 mm / 7 ft 2175L x 900D x 2050H 3 100 mm 5.4 m2 / 58 sq. ft. 1.620 m3 / 57 Cu. Ft. 2436 W 675 W (Indoor) 3500 W 380V ±10%, 50Hz, 3Ph
LM41M-10205F-4A2 10' Vertical Glass-Door Supermarket Display Refrigerator Remote -2 ~ +2℃ 2900 mm / 10 ft 2900L x 900D x 2050H 4 100 mm 7.3 m2 / 79 sq. ft. 1.813 m3 / 64 Cu. Ft. 3263 W 890 W (Indoor) 4200 W 380V ±10%, 50Hz, 3Ph
LM41M-05205F-4A6 5' Vertical Glass-Door Supermarket Display Refrigerator Remote +2 ~ +8℃ 1450 mm / 5 ft 1450L x 900D x 2050H 2 100 mm 3.6 m2 / 39 sq. ft. 1.088 m3 / 38 Cu. Ft. 1631 W 460 W (Indoor) 2800 W 380V ±10%, 50Hz, 3Ph
LM41M-07205F-4A6 7' Vertical Glass-Door Supermarket Display Refrigerator Remote +2 ~ +8℃ 2175 mm / 7 ft 2175L x 900D x 2050H 3 100 mm 5.4 m2 / 58 sq. ft. 1.620 m3 / 57 Cu. Ft. 2436 W 675 W (Indoor) 3500 W 380V ±10%, 50Hz, 3Ph
LM41M-10205F-4A6 10' Vertical Glass-Door Supermarket Display Refrigerator Remote +2 ~ +8℃ 2900 mm / 10 ft 2900L x 900D x 2050H 4 100 mm 7.3 m2 / 79 sq. ft. 1.813 m3 / 64 Cu. Ft. 3263 W 890 W (Indoor) 4200 W 380V ±10%, 50Hz, 3Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(( --- ).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage for the supermarket refrigeration units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.

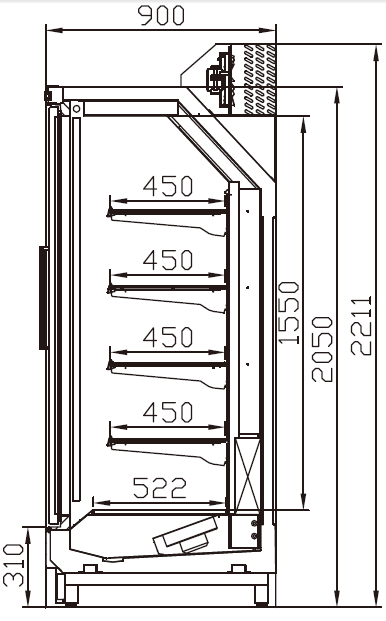

900 mm Vertical Glass-Door Supermarket Display Fridge Cabinet (Self-Contained) Technical Specification
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (725 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
LM41M-05205Z-4A2 5' Vertical Glass-Door Supermarket Display Fridge Plug-in Self-Contained -2 ~ +2℃ 1450 mm / 5 ft 1450L x 900D x 2050H 2 100 mm 3.6 m2 / 39 sq. ft. 0.906 m3 / 32 Cu. Ft. 1341 W 1920 W 2800 W 220V ±10%, 50Hz, 1Ph
LM41M-07205Z-4A2 7' Vertical Glass-Door Supermarket Display Fridge Plug-in Self-Contained -2 ~ +2℃ 2175 mm / 7 ft 2175L x 900D x 2050H 3 100 mm 5.4 m2 / 58 sq. ft. 1.359 m3 / 48 Cu. Ft. 2012 W 2135 W 3500 W 220V ±10%, 50Hz, 1Ph
LM41M-10205Z-4A2 10' Vertical Glass-Door Supermarket Display Fridge Plug-in Self-Contained -2 ~ +2℃ 2900 mm / 10 ft 2900L x 900D x 2050H 4 100 mm 7.3 m2 / 79 sq. ft. 1.813 m3 / 64 Cu. Ft. 2683 W 2350 W 4200 W 220V ±10%, 50Hz, 1Ph
LM41M-05205Z-4A6 5' Vertical Glass-Door Supermarket Display Fridge Plug-in Self-Contained +2 ~ +8℃ 1450 mm / 5 ft 1450L x 900D x 2050H 2 100 mm 3.6 m2 / 39 sq. ft. 0.906 m3 / 32 Cu. Ft. 1341 W 1920 W 2800 W 220V ±10%, 50Hz, 1Ph
LM41M-07205Z-4A6 7' Vertical Glass-Door Supermarket Display Fridge Plug-in Self-Contained +2 ~ +8℃ 2175 mm / 7 ft 2175L x 900D x 2050H 3 100 mm 5.4 m2 / 58 sq. ft. 1.359 m3 / 48 Cu. Ft. 2012 W 2135 W 3500 W 220V ±10%, 50Hz, 1Ph
LM41M-10205Z-4A6 10' Vertical Glass-Door Supermarket Display Fridge Plug-in Self-Contained +2 ~ +8℃ 2900 mm / 10 ft 2900L x 900D x 2050H 4 100 mm 7.3 m2 / 79 sq. ft. 1.813 m3 / 64 Cu. Ft. 2683 W 2350 W 4200 W 220V ±10%, 50Hz, 1Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(( --- ).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage: 220V ±10%, 50Hz, 1Ph. 110V/60Hz and 220V/60Hz availability to be confirmed.

1000 mm Vertical Glass-Door Supermarket Walk-in Chiller Cabinet (Remote) Technical Specification
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (725 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
LM41L-05205F-4A2 5' Vertical Supermarket Reach-in Chiller Showcase Remote -2 ~ +2℃ 1450 mm / 5 ft 1450L x 1000D x 2050H 2 100 mm 4.4 m2 / 47 sq. ft. 1.305 m3 / 46 Cu. Ft. 1849 W 460 W (Indoor) 2800 W 380V ±10%, 50Hz, 3Ph
LM41L-07205F-4A2 7' Vertical Supermarket Reach-in Chiller Showcase Remote -2 ~ +2℃ 2175 mm / 7 ft 2175L x 1000D x 2050H 3 100 mm 6.5 m2 / 70 sq. ft. 1.958 m3 / 69 Cu. Ft. 2773 W 675 W (Indoor) 3500 W 380V ±10%, 50Hz, 3Ph
LM41L-10205F-4A2 10' Vertical Supermarket Reach-in Chiller Showcase Remote -2 ~ +2℃ 2900 mm / 10 ft 2900L x 1000D x 2050H 4 100 mm 8.7 m2 / 93 sq. ft. 2.610 m3 / 92 Cu. Ft. 3698 W 890 W (Indoor) 4200 W 380V ±10%, 50Hz, 3Ph
LM41L-05205F-4A6 5' Vertical Supermarket Reach-in Chiller Showcase Remote +2 ~ +8℃ 1450 mm / 5 ft 1450L x 1000D x 2050H 2 100 mm 4.4 m2 / 47 sq. ft. 1.305 m3 / 46 Cu. Ft. 1849 W 460 W (Indoor) 2800 W 380V ±10%, 50Hz, 3Ph
LM41L-07205F-4A6 7' Vertical Supermarket Reach-in Chiller Showcase Remote +2 ~ +8℃ 2175 mm / 7 ft 2175L x 1000D x 2050H 3 100 mm 6.5 m2 / 70 sq. ft. 1.958 m3 / 69 Cu. Ft. 2773 W 675 W (Indoor) 3500 W 380V ±10%, 50Hz, 3Ph
LM41L-10205F-4A6 10' Vertical Supermarket Reach-in Chiller Showcase Remote +2 ~ +8℃ 2900 mm / 10 ft 2900L x 1000D x 2050H 4 100 mm 8.7 m2 / 93 sq. ft. 2.610 m3 / 92 Cu. Ft. 3698 W 890 W (Indoor) 4200 W 380V ±10%, 50Hz, 3Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(( --- ).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage for the supermarket refrigeration units: 380V ±10%, 50Hz, 3Ph or 220V ±10%, 50Hz, 1Ph. 110V/60Hz, 220V/60Hz and 380V/60Hz availability to be confirmed.

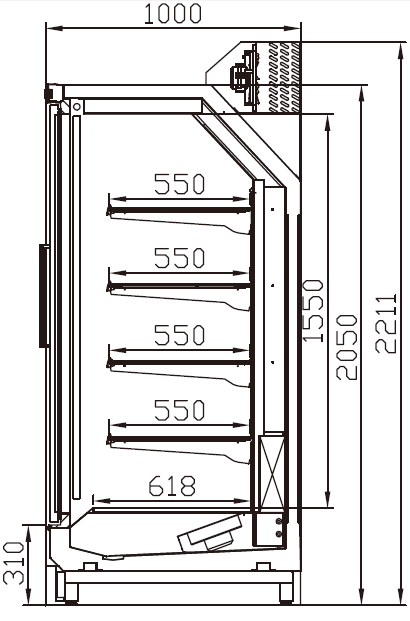

1000 mm Vertical Glass-Door Supermarket Walk-in Cooler Cabinet (Self-Contained) Technical Specification
Model Description Type Storage Temp. Product Length Cabinet Size (mm) Module (725 mm) Side Panel Display Area Capacity Refrig. Capacity Energy Consum. Defrost Voltage
LM41L-05205Z-4A2 5' Vertical Supermarket Reach-in Cooler Showcase Plug-in Self-Contained -2 ~ +2℃ 1450 mm / 5 ft 1450L x 1000D x 2050H 2 100 mm 4.4 m2 / 47 sq. ft. 1.088 m3 / 38 Cu. Ft. 1523 W 1980 W 2800 W 220V ±10%, 50Hz, 1Ph
LM41L-07205Z-4A2 7' Vertical Supermarket Reach-in Cooler Showcase Plug-in Self-Contained -2 ~ +2℃ 2175 mm / 7 ft 2175L x 1000D x 2050H 3 100 mm 6.5 m2 / 70 sq. ft. 1.631 m3 / 58 Cu. Ft. 2248 W 2195 W 3500 W 220V ±10%, 50Hz, 1Ph
LM41L-10205Z-4A2 10' Vertical Supermarket Reach-in Cooler Showcase Plug-in Self-Contained -2 ~ +2℃ 2900 mm / 10 ft 2900L x 1000D x 2050H 4 100 mm 8.7 m2 / 93 sq. ft. 2.175 m3 / 77 Cu. Ft. 3045 W 2410 W 4200 W 220V ±10%, 50Hz, 1Ph
LM41L-05205Z-4A6 5' Vertical Supermarket Reach-in Cooler Showcase Plug-in Self-Contained +2 ~ +8℃ 1450 mm / 5 ft 1450L x 1000D x 2050H 2 100 mm 4.4 m2 / 47 sq. ft. 1.088 m3 / 38 Cu. Ft. 1523 W 1980 W 2800 W 220V ±10%, 50Hz, 1Ph
LM41L-07205Z-4A6 7' Vertical Supermarket Reach-in Cooler Showcase Plug-in Self-Contained +2 ~ +8℃ 2175 mm / 7 ft 2175L x 1000D x 2050H 3 100 mm 6.5 m2 / 70 sq. ft. 1.631 m3 / 58 Cu. Ft. 2248 W 2195 W 3500 W 220V ±10%, 50Hz, 1Ph
LM41L-10205Z-4A6 10' Vertical Supermarket Reach-in Cooler Showcase Plug-in Self-Contained +2 ~ +8℃ 2900 mm / 10 ft 2900L x 1000D x 2050H 4 100 mm 8.7 m2 / 93 sq. ft. 2.175 m3 / 77 Cu. Ft. 3045 W 2410 W 4200 W 220V ±10%, 50Hz, 1Ph

Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity(( --- ).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage: 220V ±10%, 50Hz, 1Ph. 110V/60Hz and 220V/60Hz availability to be confirmed.
