We manufacture and supply whole range of Convenience Store Refrigerated Display Cases including Convenience Store Refrigerator Display Case and Convenience Store Freezer Display Case. This serie of Vertical Convenience Store Display Freezer is an Upright Convenience Store Freezer Showcase for frozen foods and ice cream storage and display. This glass door upright freezer display case is with the freezinging temperature of -22 ℃~-18 ℃ and can be used as gelato and ice cream display freezer.
This glass door commercial convenience store display freezer is used in convenience stores, supermarkets, hypermarkets, convenience stores, self-service stores, retail chain stores, food stores, butchers' shop, grocery stores, hotels & restaurants etc. for the frozen display and storage of frozen foods, frozen meat, frozen poultry, frozen seafood and ice cream etc. Professional convenience store freezer manufacturer and supplier in China with over 20 years of experience in commercial refrigeration equipment & supermarket refrigeration equipment, quality is guaranteed.

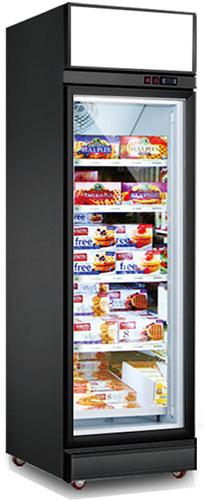

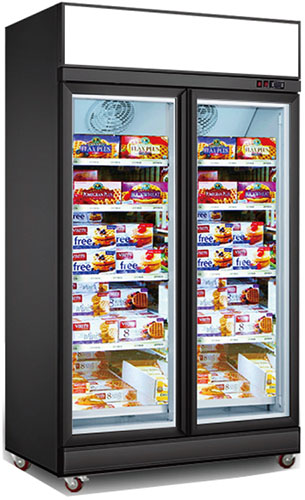

Convenience Store Upright Freezer Showcase
Superior Quality World Brand Compressors For Powerful Cooling and Freezing Capability. Long Lasting Life & Quiet, Energy-Saving
Both Fridge Condenser & Evaporator With 100% Pure Copper Tube, Strong, No Corrotion, Long-Lasting Life
Micro-Computer Digital Display Temperature Controller for Precise and Stable Temperature

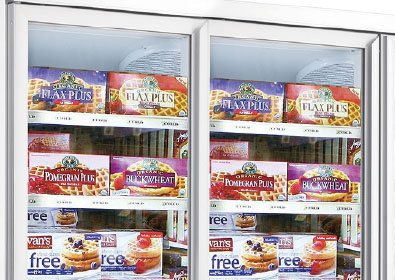

4-Pane Triple-Layer Glass Door : Energy-Saving Low-E Coated Glass, No Condensed Water, Transparant & Clear Display

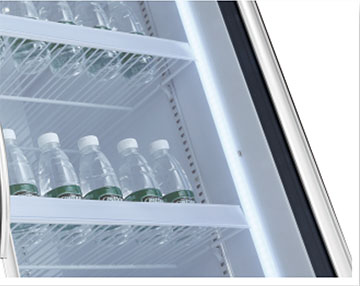

Adjustable Shelves. Optional Double-Layer Shelf With Bottle Holder for Storage of Canned Foods & Boxed Foods
Universal Casters, No Noise. Anti-Skid Wheels
| Description | Standard Parts | Optional Parts |
|---|---|---|
| Cabinet Material | SPCC + Powder Spraying | SUS304 Stainless Steel |
| Lighting | LED (6500K) | LED (Desired Colour Temp.) |
| Cabinet Colour | White | Multiple Options |
| Power Supply | 380V ±10%, 50Hz, 3Ph; 220V ±10%, 50Hz, 1Ph | 110V,60Hz;220V,60Hz;380V,60Hz |
| Side Panels | Foamed / With Mirror | Vaccumed Film-Coated Glass Panels with Anti-Mist Wire-Heating |
| Fan Motor | EBM Shaded Pole Motor | EBM Brushless DC Motor |
| Evaporator | Corrugated Fin | |
| Compressors | Brand Compressors | |
| Thermostat | Micro-Computer Digital Temperature Display Thermostat | Additional gauge outfit |
| Shelves | 4 PC Chromium Plating | 4 PC Dip Coating |
| Refrigerant | R404a/R22 | |
| Doors | Film-Coated Glass Doors with Anti-Mist Wire-Heating & Aluminium Door Frame | Film-Coated Glass Doors with Anti-Mist Wire-Heating & Hidden Door Frame / Hydrophilip Film |
| Model | Description | Type | Storage Temp. | Product Length | Cabinet Size (mm) | Nos. of Doors | Side Panel | Display Area | Capacity | Refrig. Capacity | Energy Consum. | Defrosting Power | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

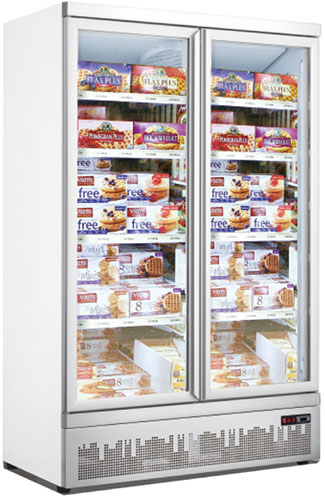

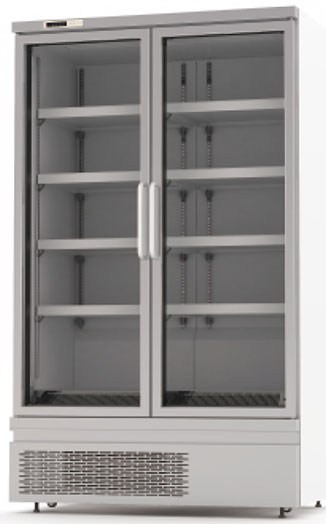

| LMD4SP-04200Z | 4' Upright Display Freezer | Plug-in | -22 ~ -18℃ | 1130 mm / 4 ft | 1130L x 795D x 2000H | 2 Glass Doors | 100 mm | 2.3 m2 / 25 sq. ft. | 0.565 m3 / 20 Cu. Ft. | 543 W | 300 W | 2000 W | 220V ±10%, 50Hz, 1Ph |

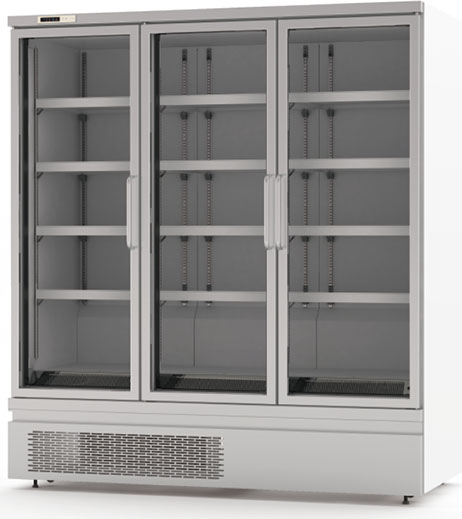

| LMD4SP-06200Z | 6' Upright Display Freezer | Plug-in | -22 ~ -18℃ | 1738 mm / 6 ft | 1738L x 795D x 2000H | 3 Glass Doors | 100 mm | 3.5 m2 / 38 sq. ft. | 0.869 m3 / 31 Cu. Ft. | 834 W | 500 W | 3000 W | 220V ±10%, 50Hz, 1Ph |

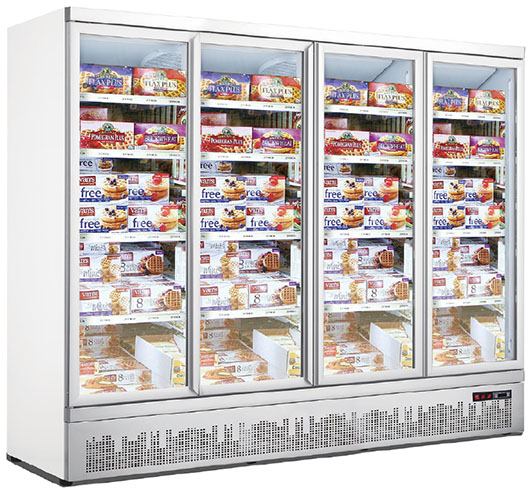

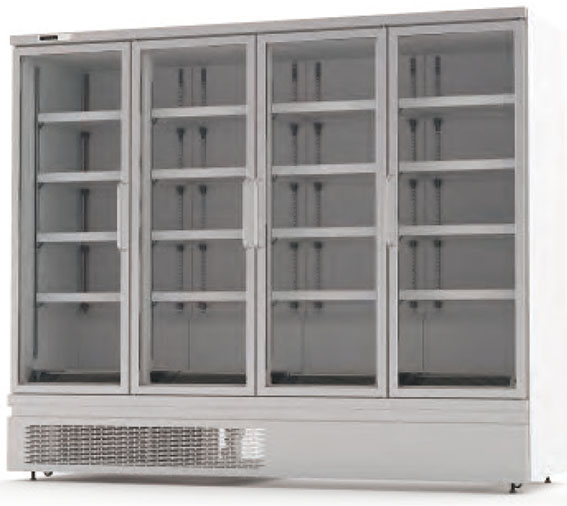

| LMD4SP-08200Z | 8' Upright Display Freezer | Plug-in | -22 ~ -18℃ | 2348 mm / 8 ft | 2348L x 795D x 2000H | 4 Glass Doors | 100 mm | 4.7 m2 / 51 sq. ft. | 1.174 m3 / 41 Cu. Ft. | 1127 W | 700 W | 4000 W | 220V ±10%, 50Hz, 1Ph |
Remarks:
1. Standard operating conditions: Ambient temperature(≤+25℃), Humidity(≤60°), Air velocity( --- ).
2. Optional Ebmpapst Energy-Saving Brushless DC Fan Motor -- For 50% motor energy saving, and more quiet operation.
3. Standard voltage: 220V ±10%, 50Hz, 1Ph. 110V/60Hz and 220V/60Hz availability to be confirmed.
220V ±10%, 50Hz, 1Ph: China, Vietname, Cambodia, Thailand, Malaysia, Indonesia, Australia, New Zealand, Bangladesh, India, Sri Lanka, Pakistan, Afghanistan, Uzbekistan, Turkmenistan, Kazakhstan, Georgia, Azerbaijan, Iran, Iraq, UAE, Yemen, Turkey, Egypt, Ethiopia, Kenya, Tanzania, Mozambique, Madagascar, South Africa, Angola, Congo, Cameron, Nigeria, Ghana, Cote d'Ivoire, Morocco, Algeria, Libya, Tunisia, Italy, Greece, Spain, Portugal, Britain, France, Germany, Sweden, Norway, Finland, Poland, Hungary, Ukraine, Serbia, Croatia, Romania, Bulgaria, Russia, Chile, Argentina, Paraguay etc.
220V ±10%, 60Hz, 1Ph: Korea, Saudi Arabia, Philippines, Peru etc.
110V ±10%, 60Hz, 1Ph: Japan, United States, Canada, Mexico, Ecuador, Brazil, Colombia, Venezuela etc.

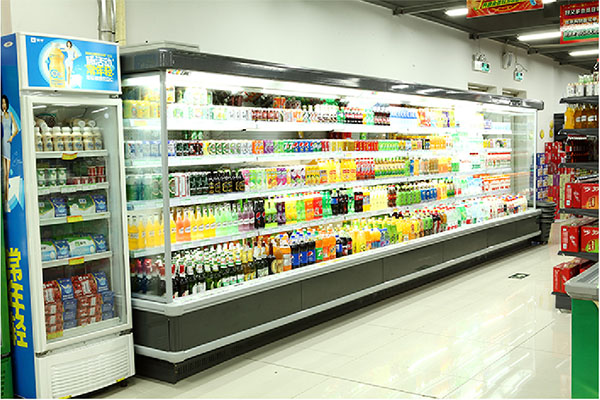

_Supermarket_Beverage_Drinks_Cooler_Air_Curtain_Refrigerator_Open_Chiller_Display_case.jpg "Supermarket Open Coolers")
|
